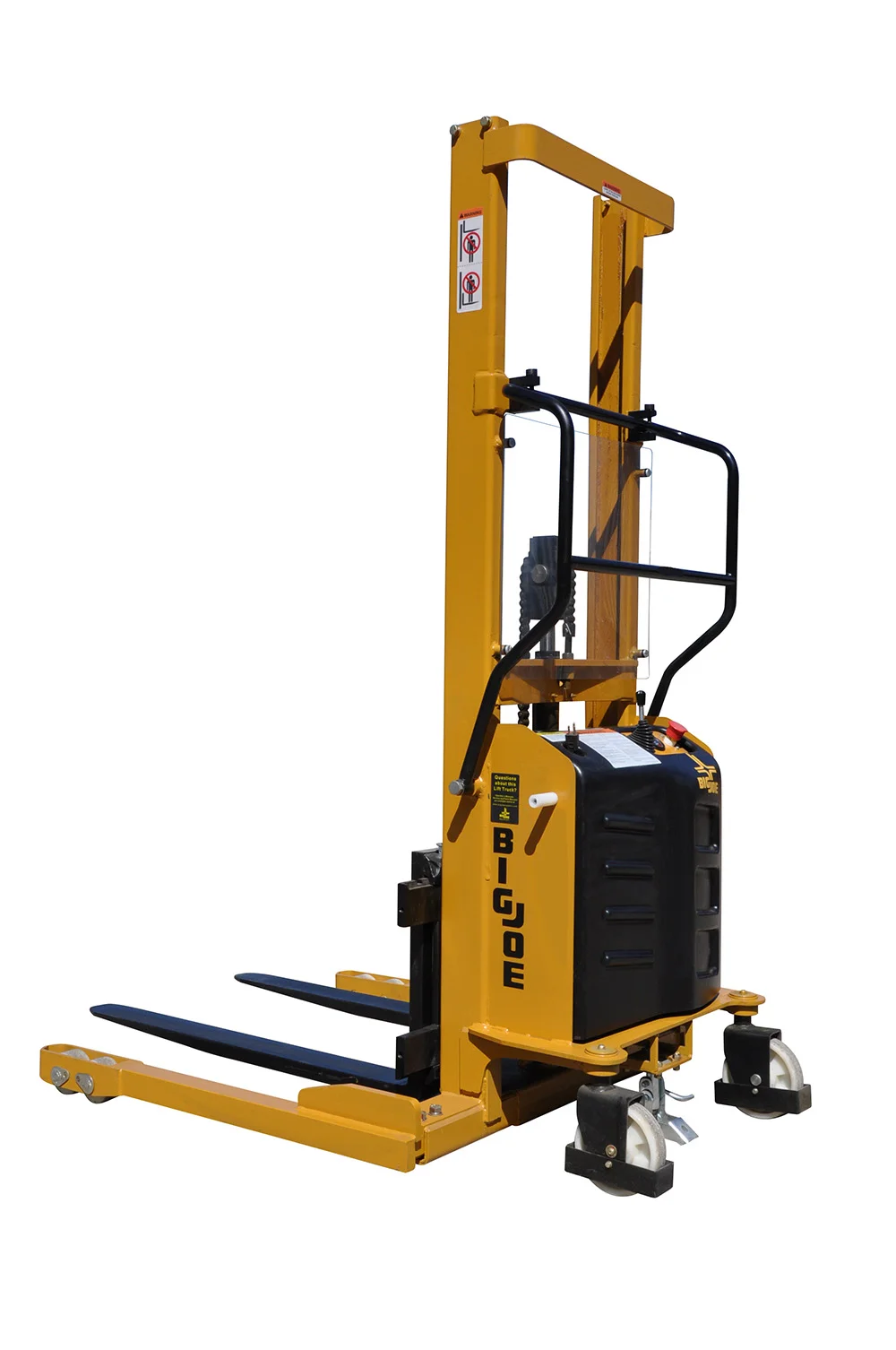

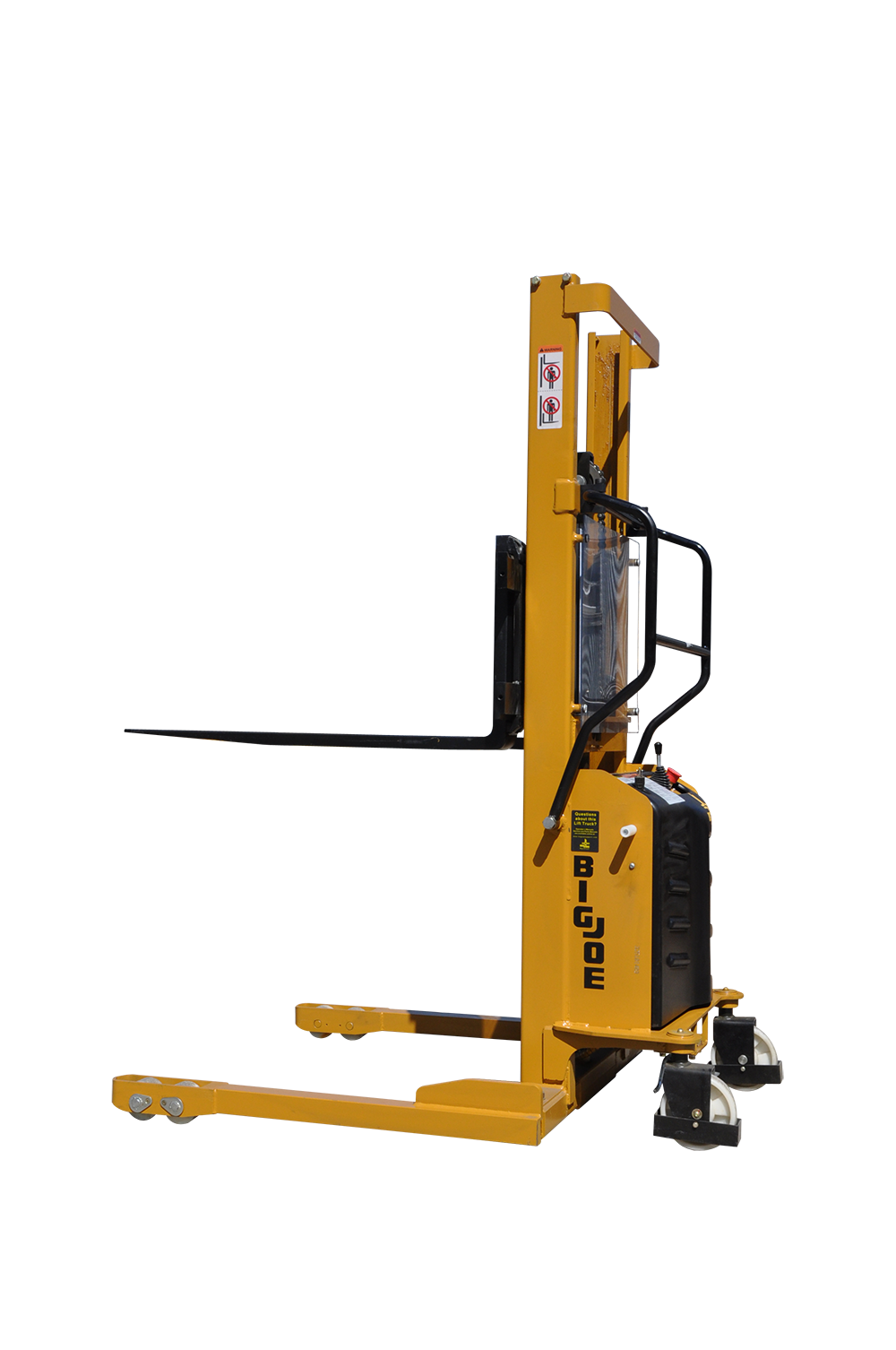

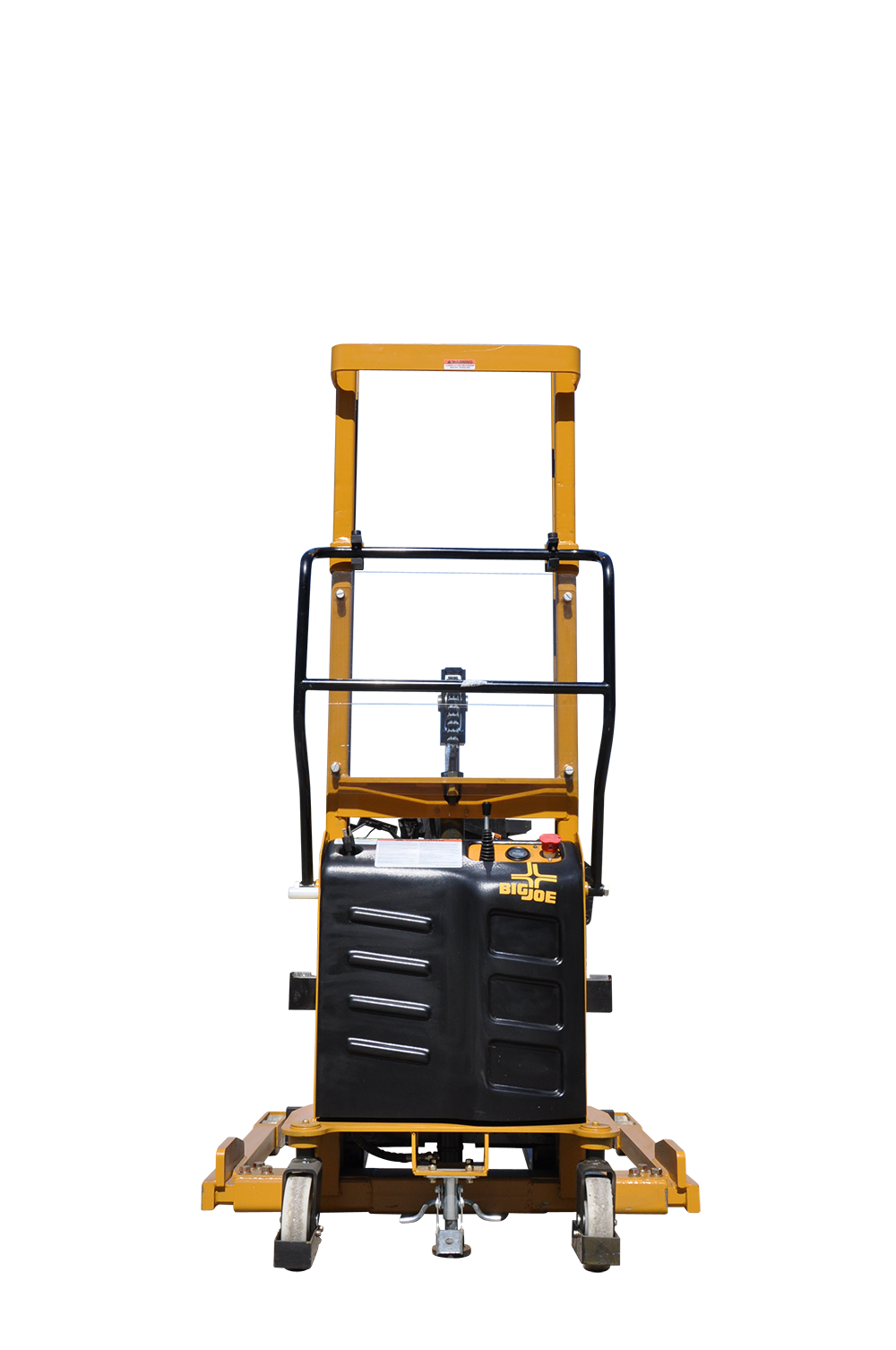

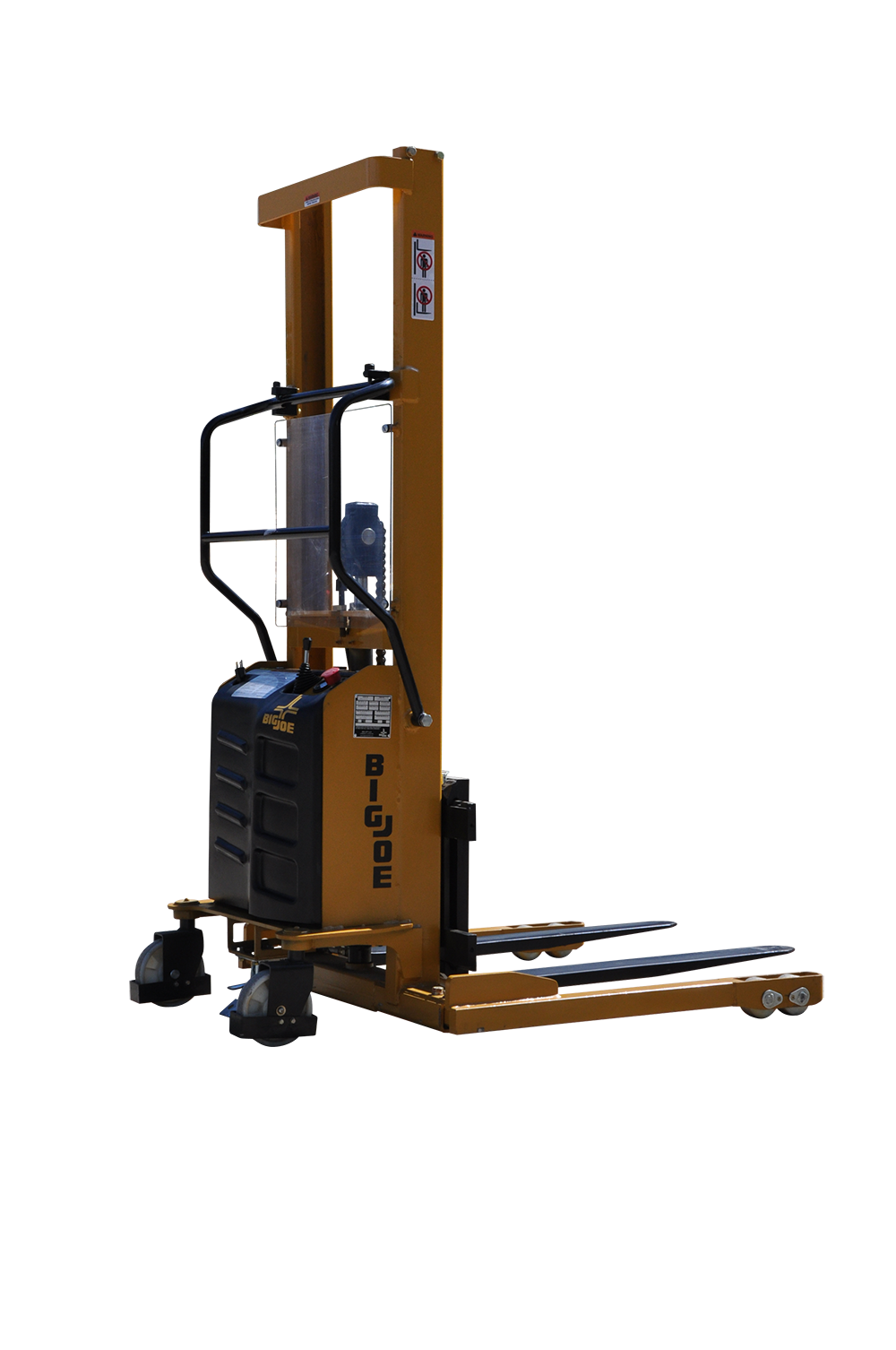

M22 Basic Series Semi-Electric Straddle Stacker

An economical choice for a variety of basic material handling needs.  The Big Joe M22 can be used to stack pallets or as a mobile work positioner to facilitate good workplace ergonomics.

The M22 Features:

  • 2,200lb. capacity @ 24" load center

  • 12 volt electrical power with built-in battery pack and charger

  • Two position fold down steer bar with tracking caster wheels

  • Foot actuated floor lock

  • Compact vehicle design provides exceptional maneuverability in tight areas.

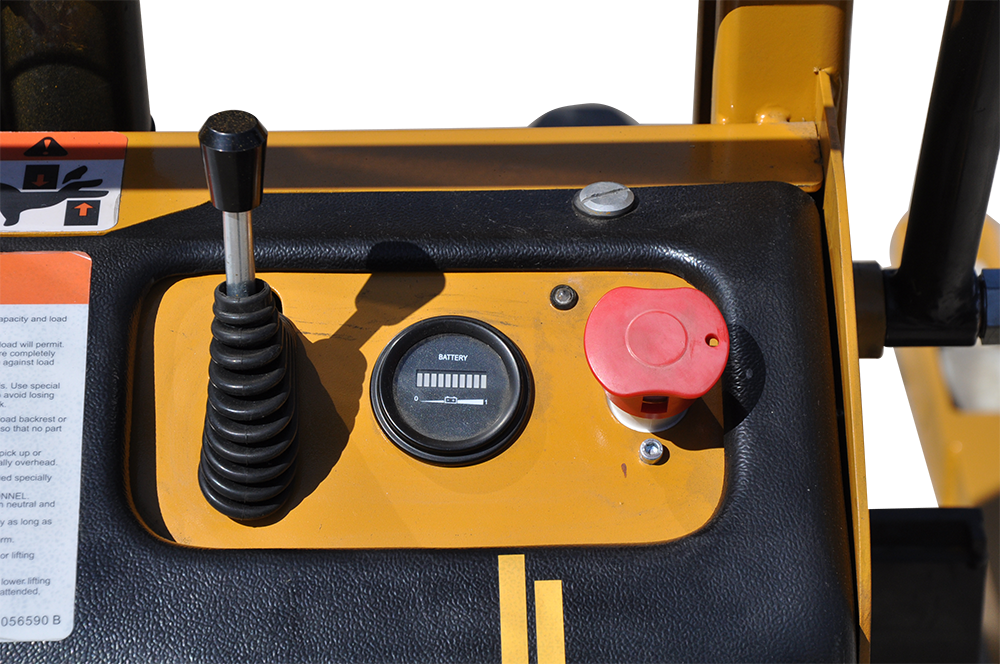

  • Battery discharge indicator, Emergency power disconnect

  • Caster foot guard, Plexiglass mast guard

  • Adjustable ITA style fork carriage, Adjustable straddles

The M22 Specifications:

  • Vehicle Type: Manual straddle stacker

  • Capacity: 2,200 lbs. @ 24” load center

  • Power: 12 volt electric with battery pack and charger

  • Max Lift Height: Masts available from 62” to 116”

  • Collapsed Height: Based on configuration and max lift height

  • Fork Dimensions: 42" x 4" x 1.4"

  • Vehicle Dimensions: Download product brochure for information

  • Turning Radius: Right angle stacks standard 48" pallet in 68"

  • Battery Capacity: 105 AH

  • Charger: Internal 110VAC plug-in included
