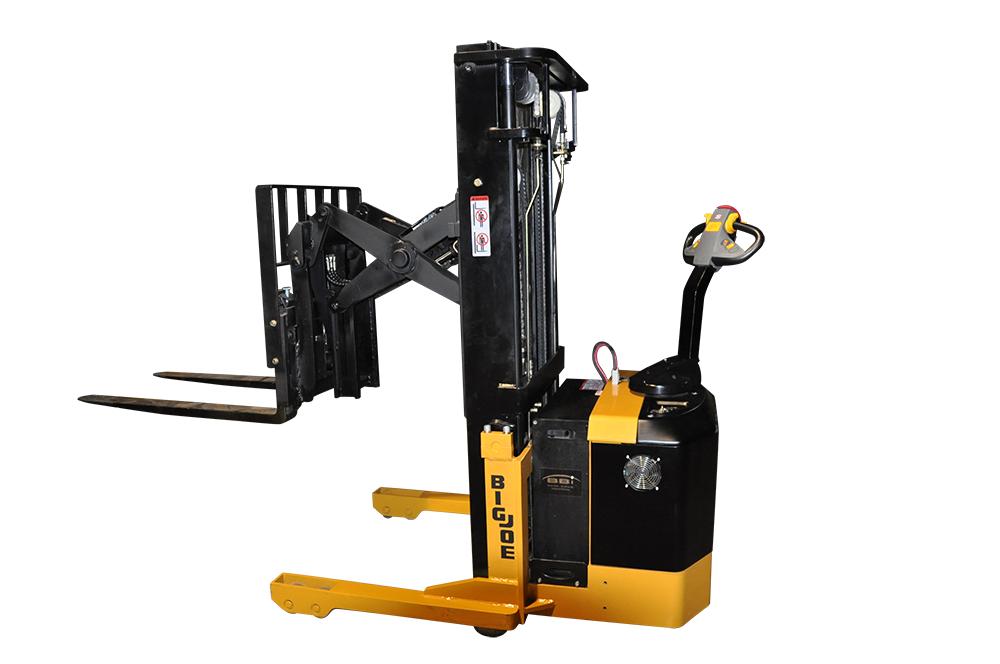

PDSR Reach Stacker

3,000lb capacity models with lift heights to 189"

The PDSR combines the tight turning characteristics and low operating cost of a walkie straddle stacker with the flexibility of a counterbalanced truck through the use of a pantograph. This mechanism extends the loads being handled beyond the straddle legs to lift or lower products and can be retracted for compact turns. With the addition of power steering, sideshift, proportional hydraulics, and tilt, the PDSR delivers exceptional versatility and easy intuitive control.

The PDSR Features:

  • 24 volt ZAPI transistor control with high torque AC drive motor.

  • Pantograph extends forks beyond straddle legs.

  • Power steering, sideshift, tilt and proportional lift, lower, extend & retract

  • Ergonomic control handle with safety reversing switch and horn

  • Industrial battery or 224 AH Maintenance free battery pack

  • Battery discharge indicator with hour meter

  • Key switch to limit access to approved personnel

The PDSR Specifications:

  • Capacity: 3,000lbs.@ 24” load center

  • Power: 24 volt AC electric with ZAPI controller

  • Max Lift Height: Masts available up to 189"
