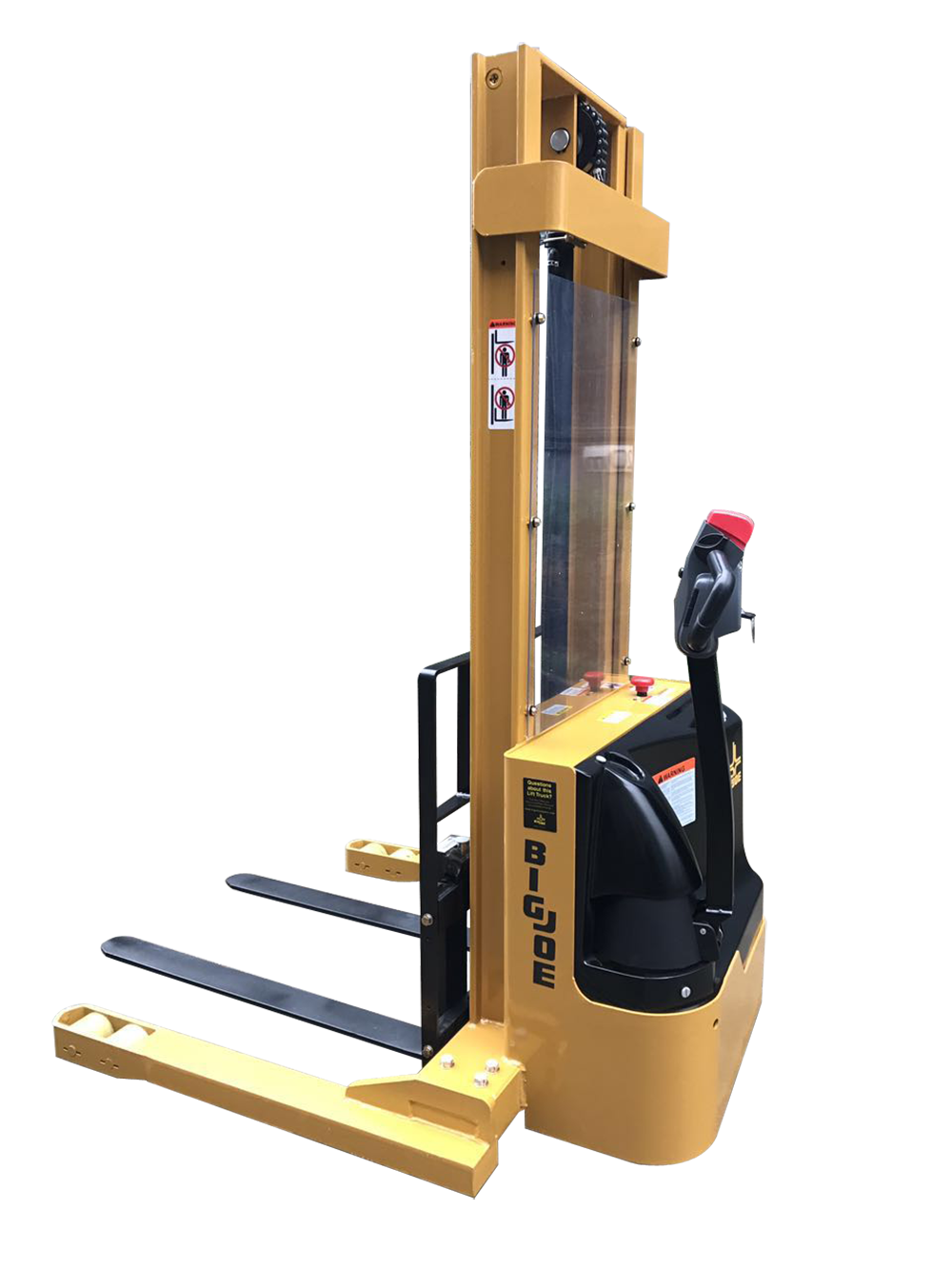

S30 Walkie Straddle Stacker

S30 3,000 lb. capacity model with a maximum lift height of 128".

An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas.

The S30 Features:

  • 24 volt system

  • High efficiency drive motors.

  • Adjustable straddles. S22-62R Fork over configuration available.

  • Infinitely variable speed operation for tight turning in close quarters

  • Ergonomic handle with safety reversing switch and horn

  • Maintenance free integral batteries and 110 volt charger

  • Battery discharge indicator, Emergency power disconnect

  • Key switch to limit access to approved personnel

The S30 Specifications:

  • Vehicle Type: Walkie Straddle Stackers

  • Capacity: 3,000lbs. @ 24” load center

  • Power: 24 volt - S22 DC / S30 AC

  • Max. Lift Heights: S30 128"

  • Fork Dimensions: 42" x 4" x 1.5"

  • Vehicle Dimensions: See model specification sheet

  • Turning Radius: See model specification sheet

  • Travel Speed: 2.5 mph

  • Battery Compartment: Integral

  • Battery Capacity: 100AH

  • Charger: Integral to pack, 110 volt plug-in
