Walk Behind Lifts // EA15B

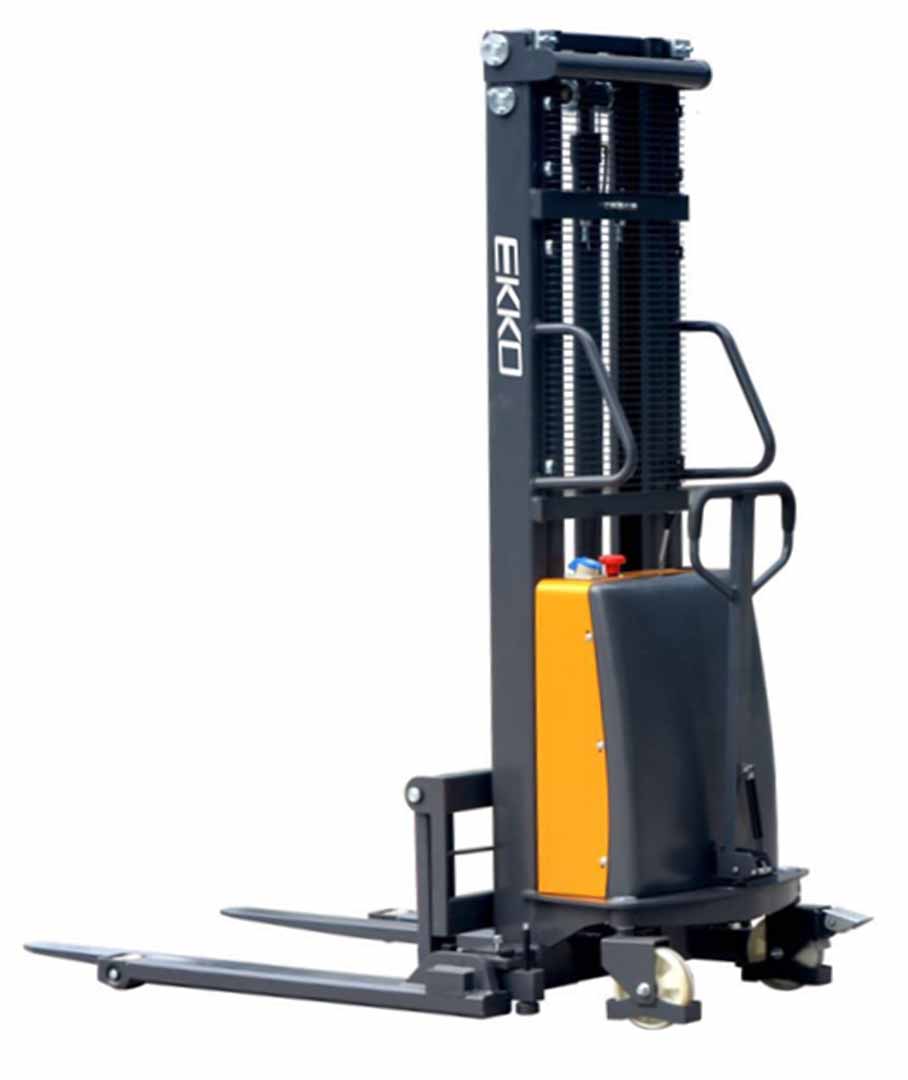

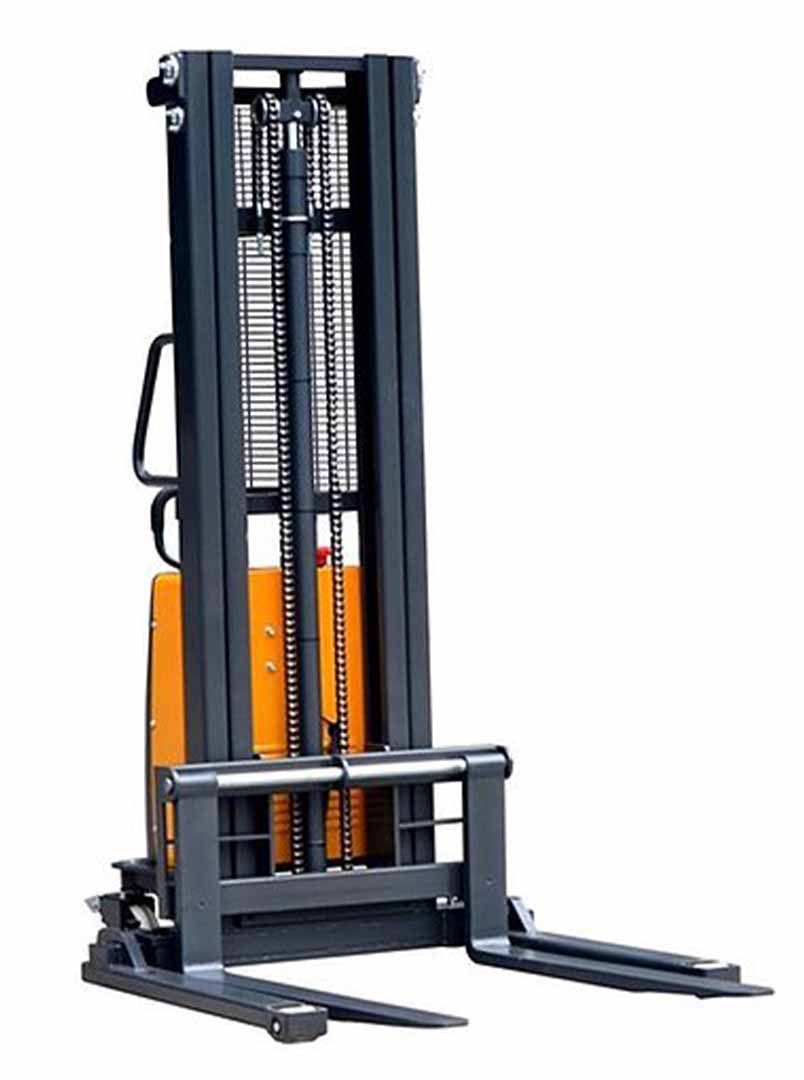

EA15B Semi-Electric Straddle Stacker, 3300 lb., 119”

The EKKO EA15B Semi-Electric Straddle Stacker is designed with the combination of the versatility of forklift and a pallet stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Features

Load Capacity 3300lbs.

Raised Height 119.4" (9.95ft)

Adjustable Forks 8.3-33.4”

Adjustable Legs 43.5-59.1”

Fork Length 45.3"

Power Lifting

Manual Drive

Adjustable Forks

Internal Charger 12V/15A Included

Battery 12V 120Ah Included

Ergonomic Handle

Steel Construction

Robotic Welding

3 Years Limited Warranty

Specifications
Model

EA15B

Load Capacity

3300(lbs)

Load Center

24"

Lifting Height Max.

119.4"

Fork Length

45.3”

Single Fork Width

3.9”

Overall Fork Width

8” - 33.4”

Lowered Fork Height

2.4"

Collapsed Height

3.15"

Lowered Fork Height

2.4”

Adjustable Legs

43.5” - 59.1”

Turning radius

53.2”

Overall Length

70”

Extended Mast Height

140.5”

Lowered Mast Height

84.5”

Battery Voltage

12V/120AH

On-Board Charger

12V/15A

Lift Motor

DC,12V/1.5KW

Vehicle Dimensions
