T66N Rider Electric Tugger
The T66N 6,600 capacity, rider electric tugger / tow tractor is designed for heavy applications. It is ideal for moving loads over long distances. It has a tight turning radius and is also narrow enough to fit through most door openings. Perfect for manufacturing, warehousing, loading docks and many other applications.
Powered tow hitch elevating system with adjustable mounting plate supports hitch heights from 6.9” to 12.4” from floor level and delivers a lift stroke of 4.5”.
Spacious platform with suspension system is equipped with soft foamed rubber mat to ensure maximum operator comfort throughout the day.
Operator backrest provides high level of side support to accommodate operators of different heights. The material of the backrest ensures maximum grip to hold operator securely.

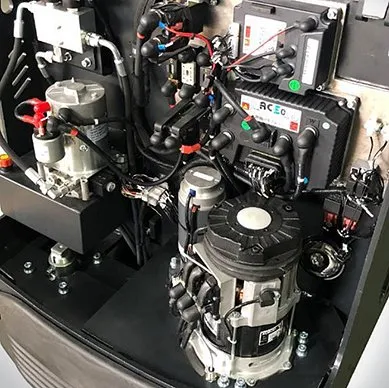

German AC Drive Technology
The powerful German Schabmueller maintenance free AC Drive motor in combination with the German Kordel gearbox delivers performance, efficiency and reliability – reducing your running costs while providing gentle or fast acceleration.

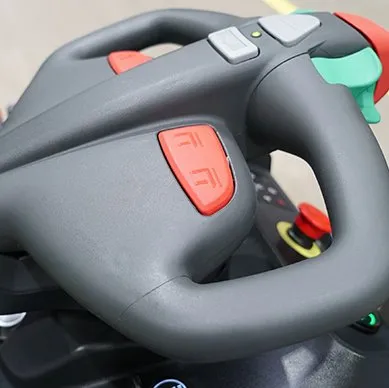

German REMA Multi-Functional Tiller
Rema tiller provides precise control over acceleration, deceleration and driving performance and returns to the neutral position automatically when released. Dual butterfly-style thumb controls, jog button, Crawl speed and horn functions.

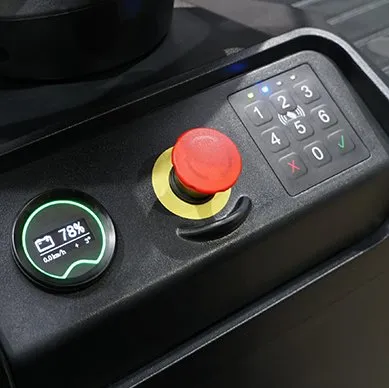

Multi-Function Instrument Control
The multi-function instrument control can display the vehicle working status, battery power, working time, driving speed, and steering angle. Fault codes provide easy maintenance. PIN-code panel and RFID-card provide operator access.

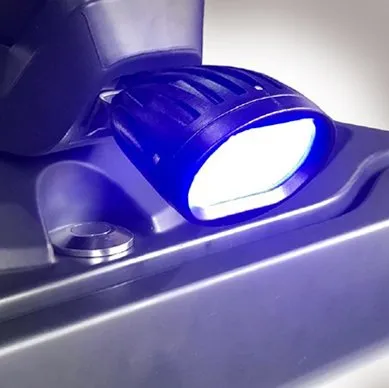

Blue-Ray Light helps to increase safety during operation.

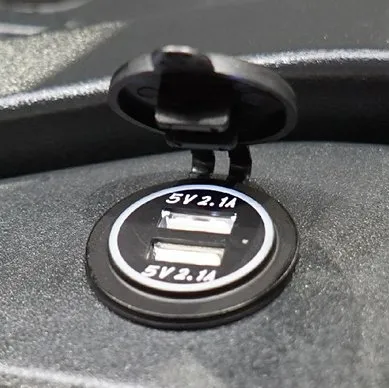

Built-In USB Connector
Equipped with (2) USB connectors for charging of additional devices during operations.

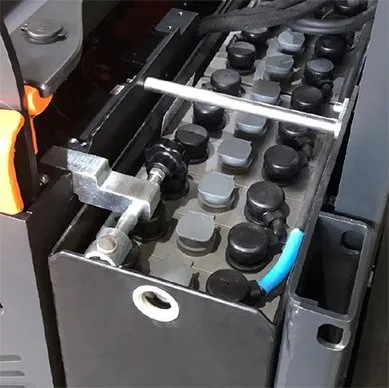

Side Battery Extraction
Side battery extraction with rollers at battery compartment makes battery replacement fast. Vehicle can then be used for multiple shifts.
Ease of Maintenance
Easy access to all key components simplifies maintenance and reduces the time required. Diagnostic Access Point, located in the battery compartment, simplifies diagnostics, improves reliability and reduces down time.
Multiple Trays provides a place for work equipment.
Emergency power disconnect
24V / 375Ah Battery
24V/60A Charger 110V
With Load: 3.7 mph
Without Load: 5.6 mph
