Counterbalance Lifts // ER15

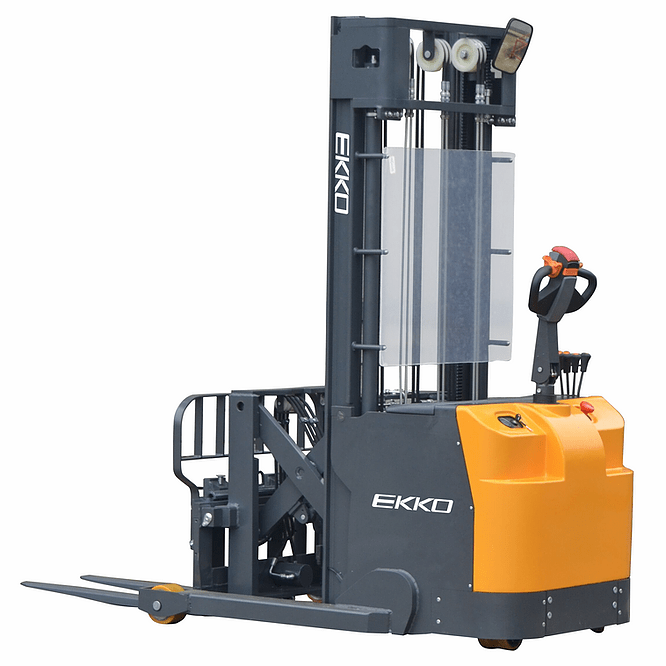

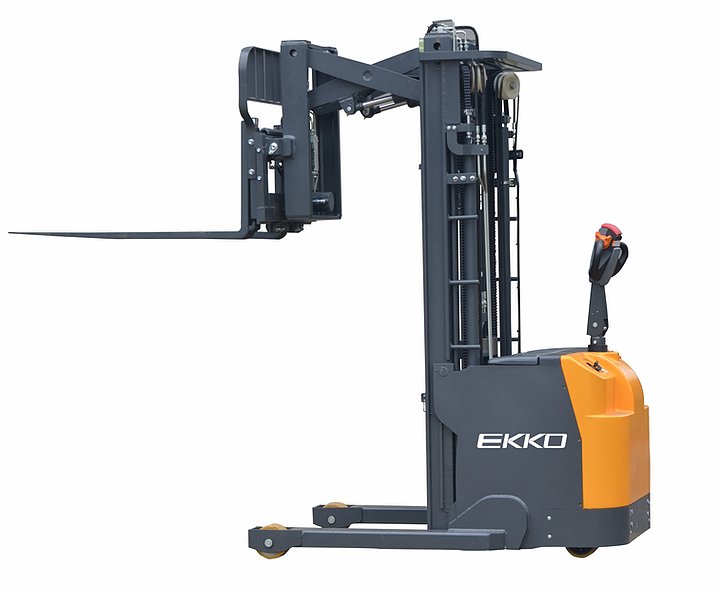

ER15 Walkie Reach Truck 3300lb., 138” lift

The EKKO ER15L Walkie Reach Truck is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

Features

Load Capacity 3300 lb

Raised Height 138" (11.5ft)

Reach Distance of 19.7"

Side Shifting Forks

Adjustable Forks 7.9-33"

Fork Length 45.3"

Tilt

Curtis Instrument Controller

EPS (Electronic Power Steering)

24V AC Drive Motor

24V Lift Motor

Battery 24V/350Ah

Polyurethane Wheels

Ergonomic Handle and Controls

Steel Construction

Robotic Welding

Charger Included

Batteries Included

3 Years Limited Warranty

Specifications
Load Capacity

3300lb

Load Center Distance

24"

Lifting Height

138"

Lowered Mast Height

90.5"

Overall Length

94"

Extended Lenght

113.8"

Overall Width

43.8"

Fork Size Thick/Width/Length

1.38"/3.9"/45.3"

Fork Adjust Width

7.9"-33"

Reach Distance

19.7"

Turning Radius

64"

Charger

24V/40A

Driving Motor

AC 24V/3kw

EPS Steering Motor

24V/200W

Lifting Motor

24V/3000W

Battery Voltage

24V/270Ah

Service Weight

4800 lb

Specifications

Contact us for specifications
