Order Pickers // J1 Joey

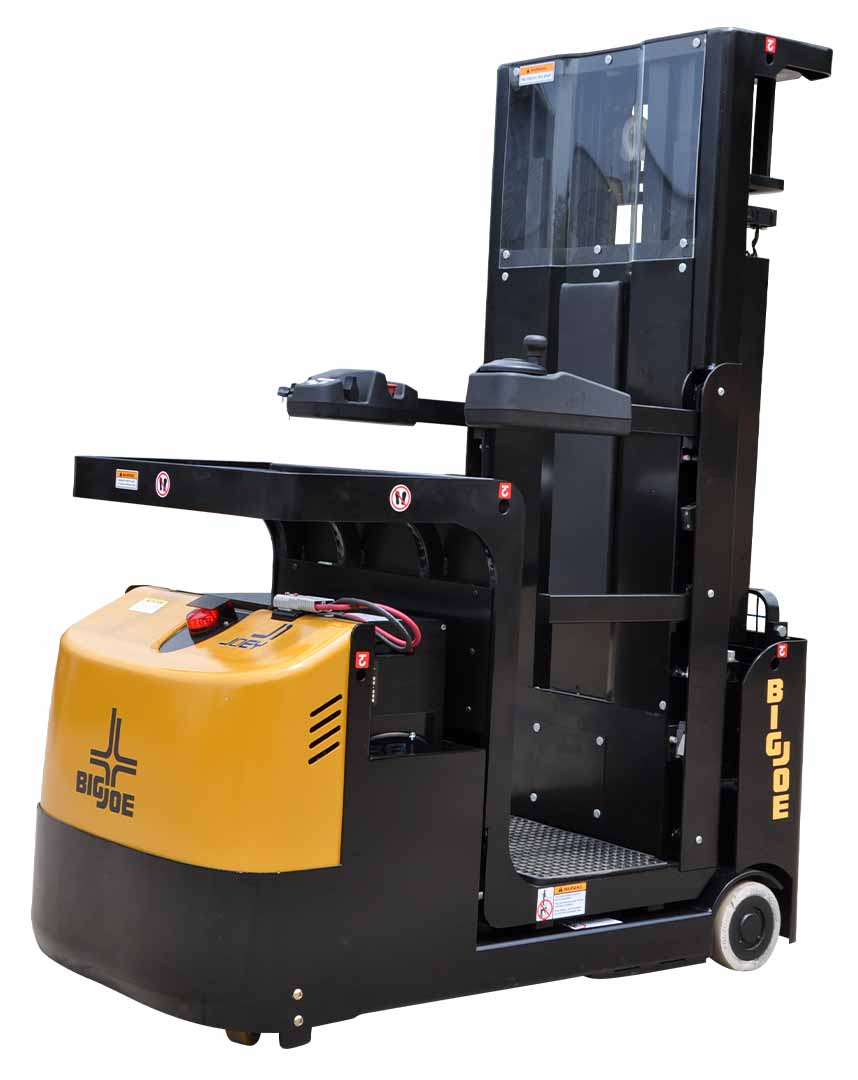

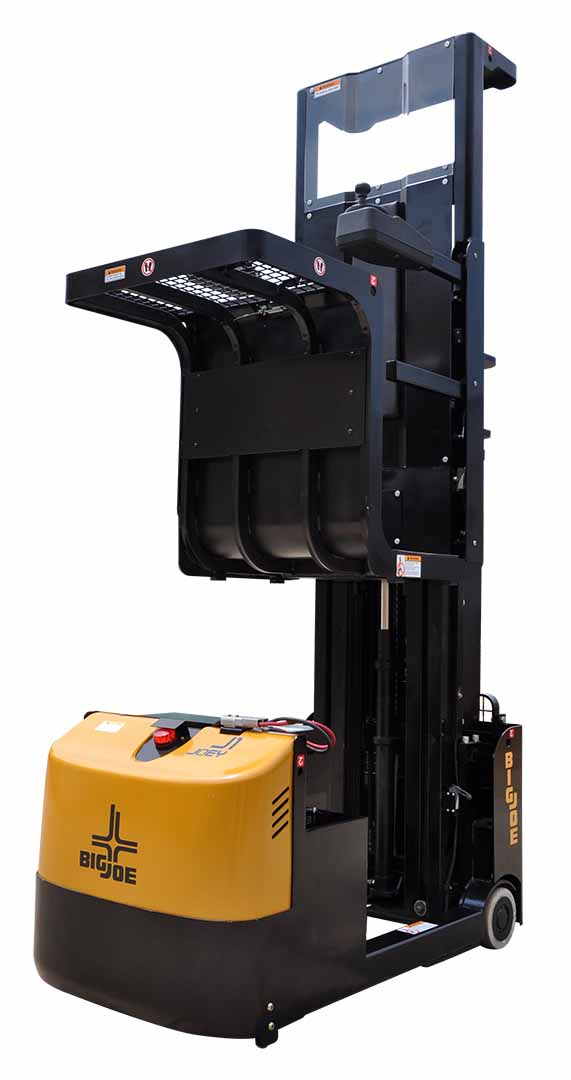

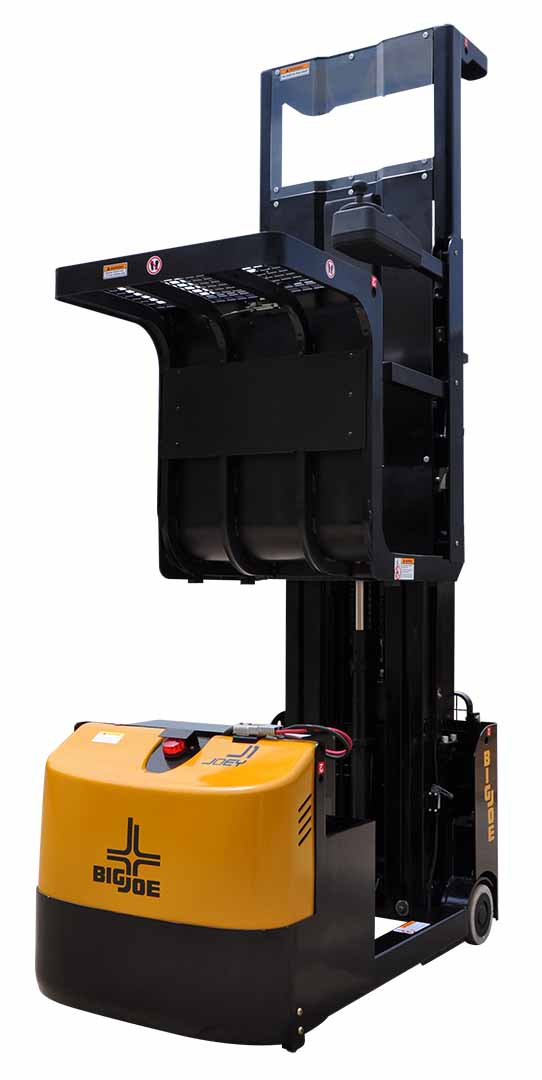

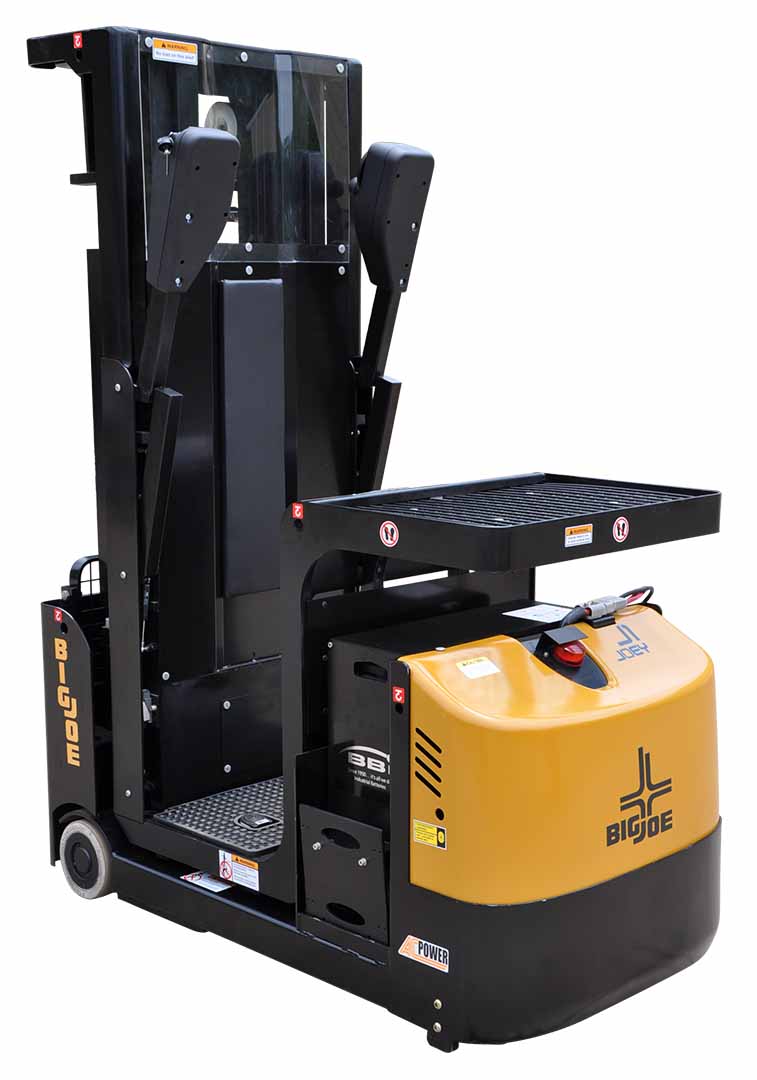

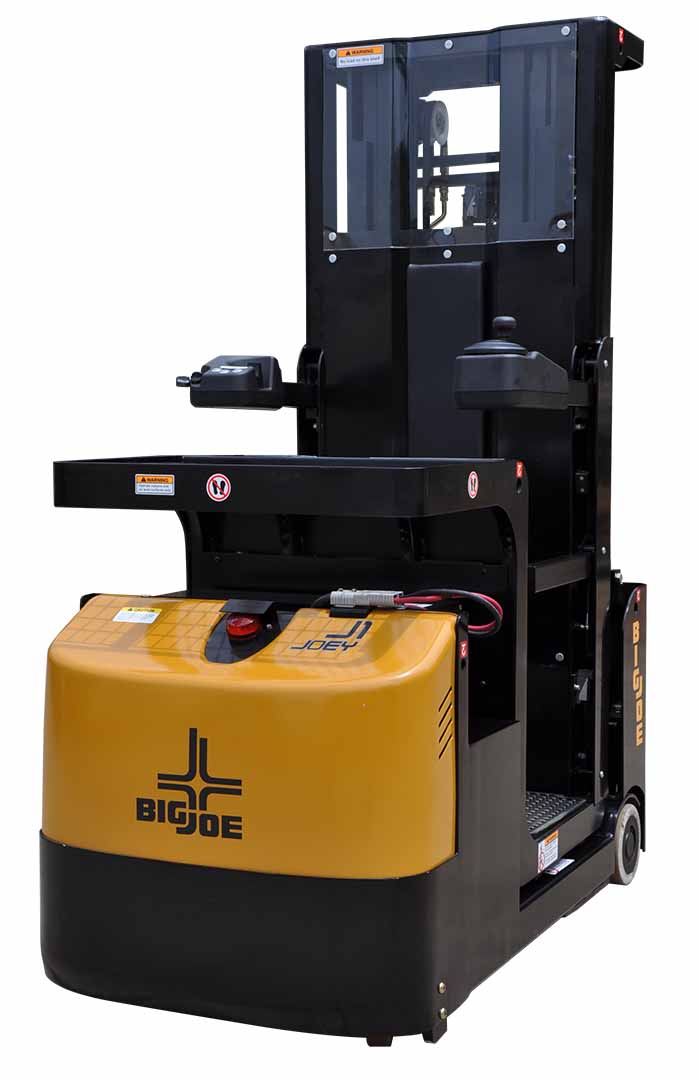

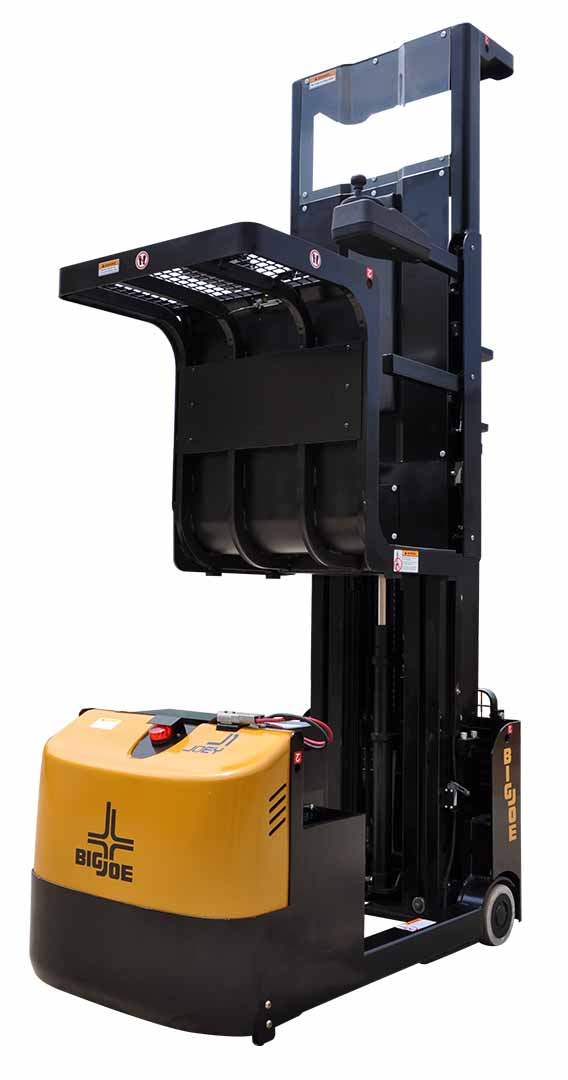

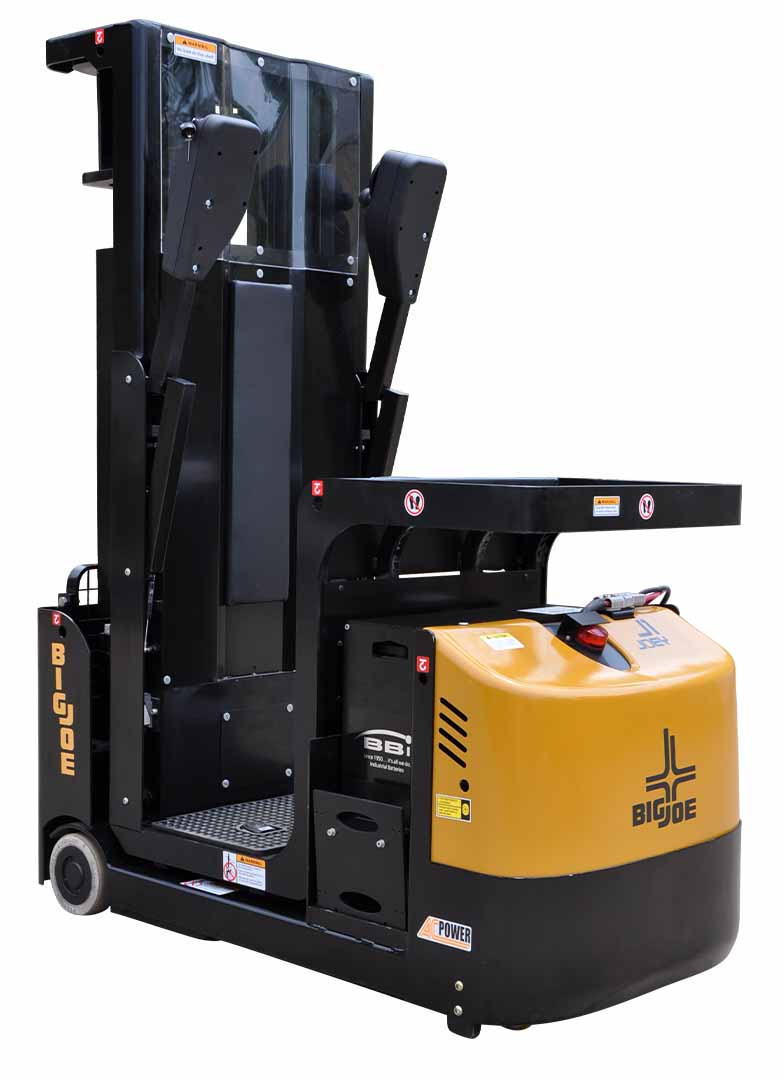

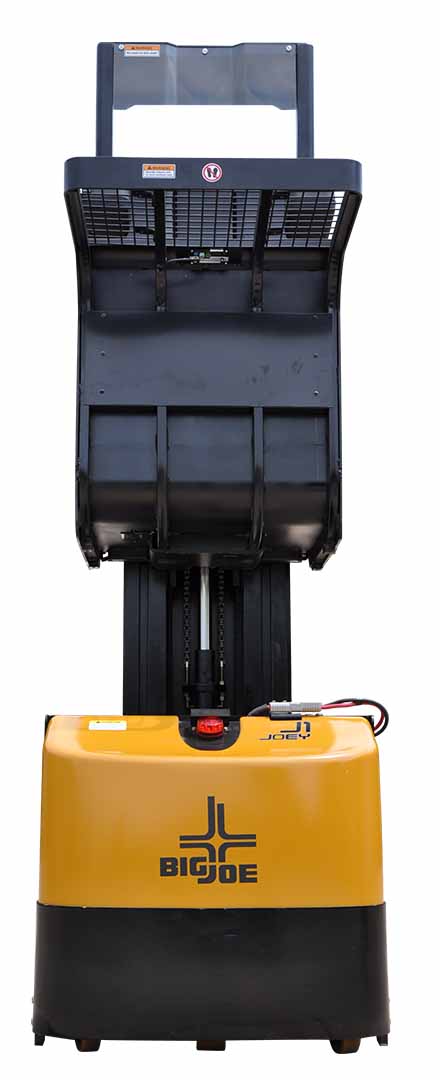

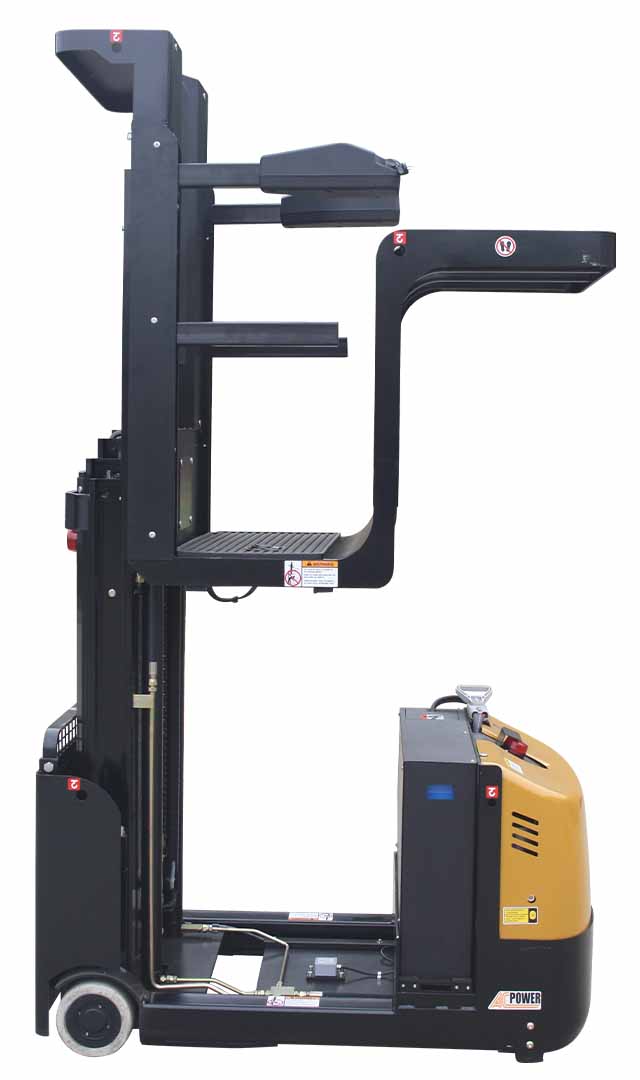

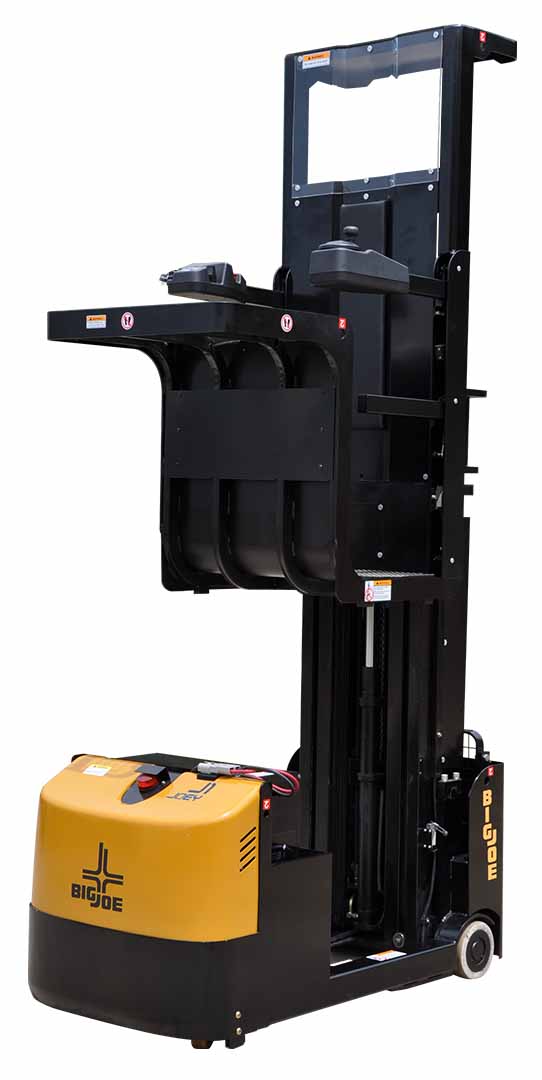

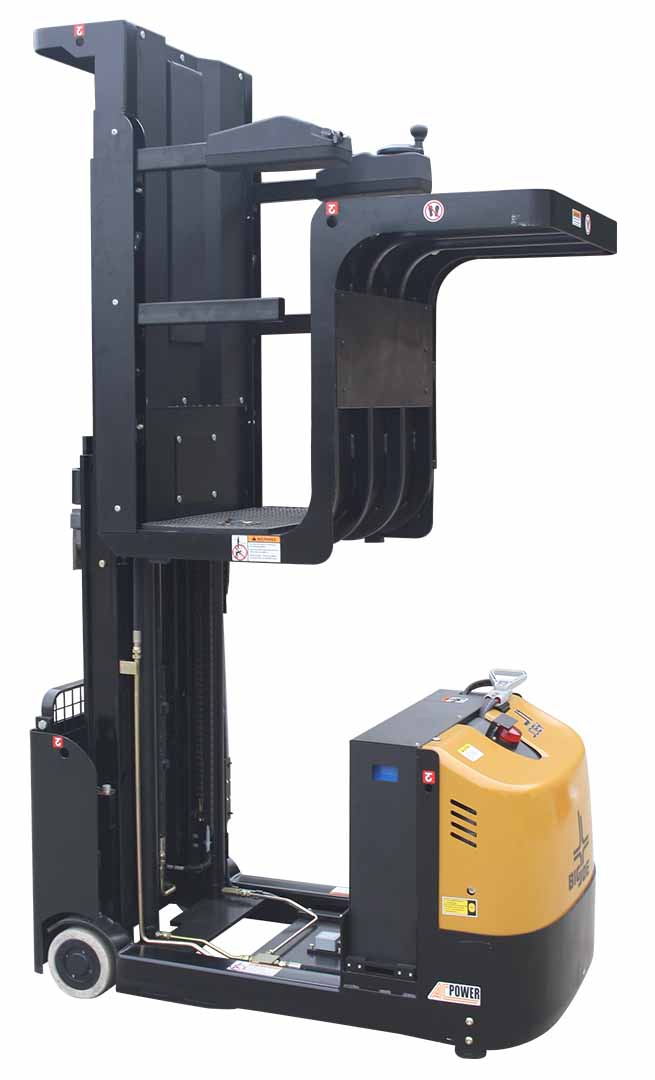

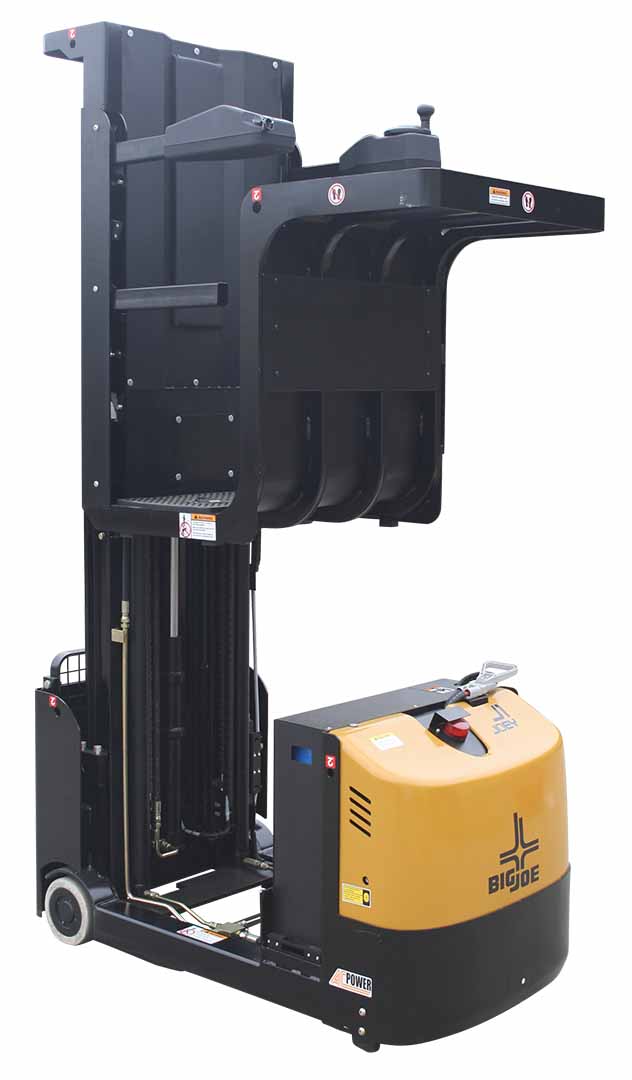

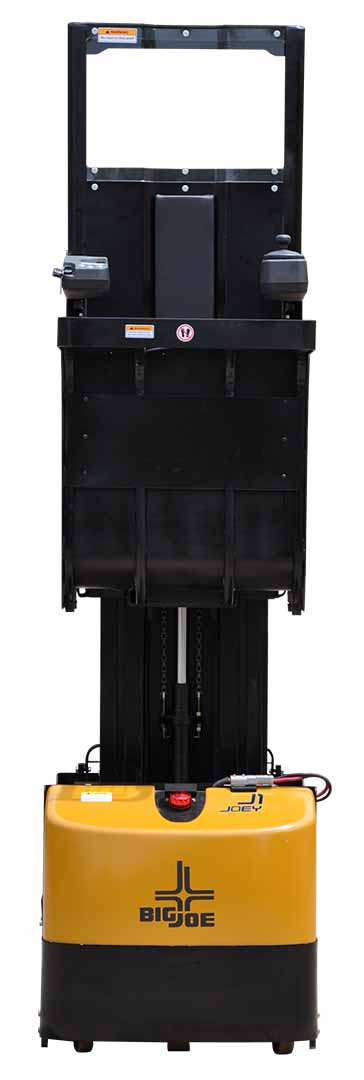

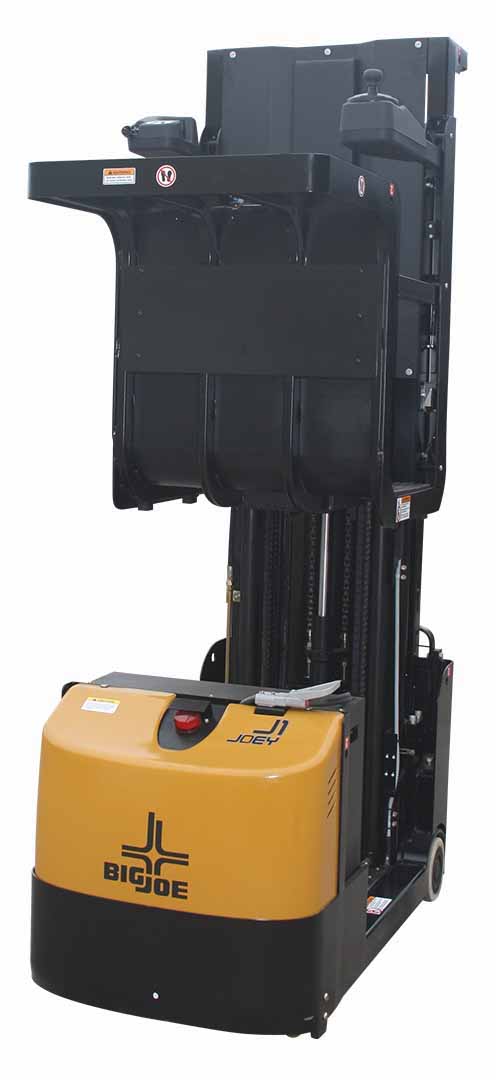

J1 Joey, 1000lb. capacity, Task Support Vehicle, 126”-192”

The J1 "JOEY" Task Support Vehicle combines attributes of elevating work platforms, order pickers and tuggers in a compact vehicle design.

Developed as an alternative to rolling ladders or other larger equipment, the Joey can support tasks from general overhead maintenance to order picking.

The Joey can elevate an operator up to as much as 192” from the floor, turn around in as little as 72", and can be driven at height to move from task to task. Travel is provided by a high efficiency AC drive motor that can be programmed through the onboard LCD dash, while power comes from a 224AH AGM maintenance free battery pack that supports opportunity charging from a standard 120v outlet or an industrial battery and external charger which is required on the J1-192.

Features

Up to a 1,000lb. total vehicle capacity including a carrying capacity of 500lb. front tray, 300lb. operator, 200lb rear tray*

LCD dash display with selectable travel settings and diagnostics

Electronic power steering with infinitely variable speed control

Finger tip controls integrated into retractable vehicle guardrails

Premium steel I-beam mast construction and unitized steel frame

180 degree articulating driveline with 72" minimum turn radius

Specifications
Vehicle Type

Task Support Vehicle

Maximum Capacity

1000lbs.

Load Center

24"

Power

24 volt AC electric with Zapi transistor control

Charger

Integral 120v in pack / Industrial (req on J1-192)

Collapsed Height

62.6" / 82" / 83"

Vehicle Dimensions

Download Brochure

Travel Speed

Download Brochure
