Pallet Trucks // J1HD Super Joey

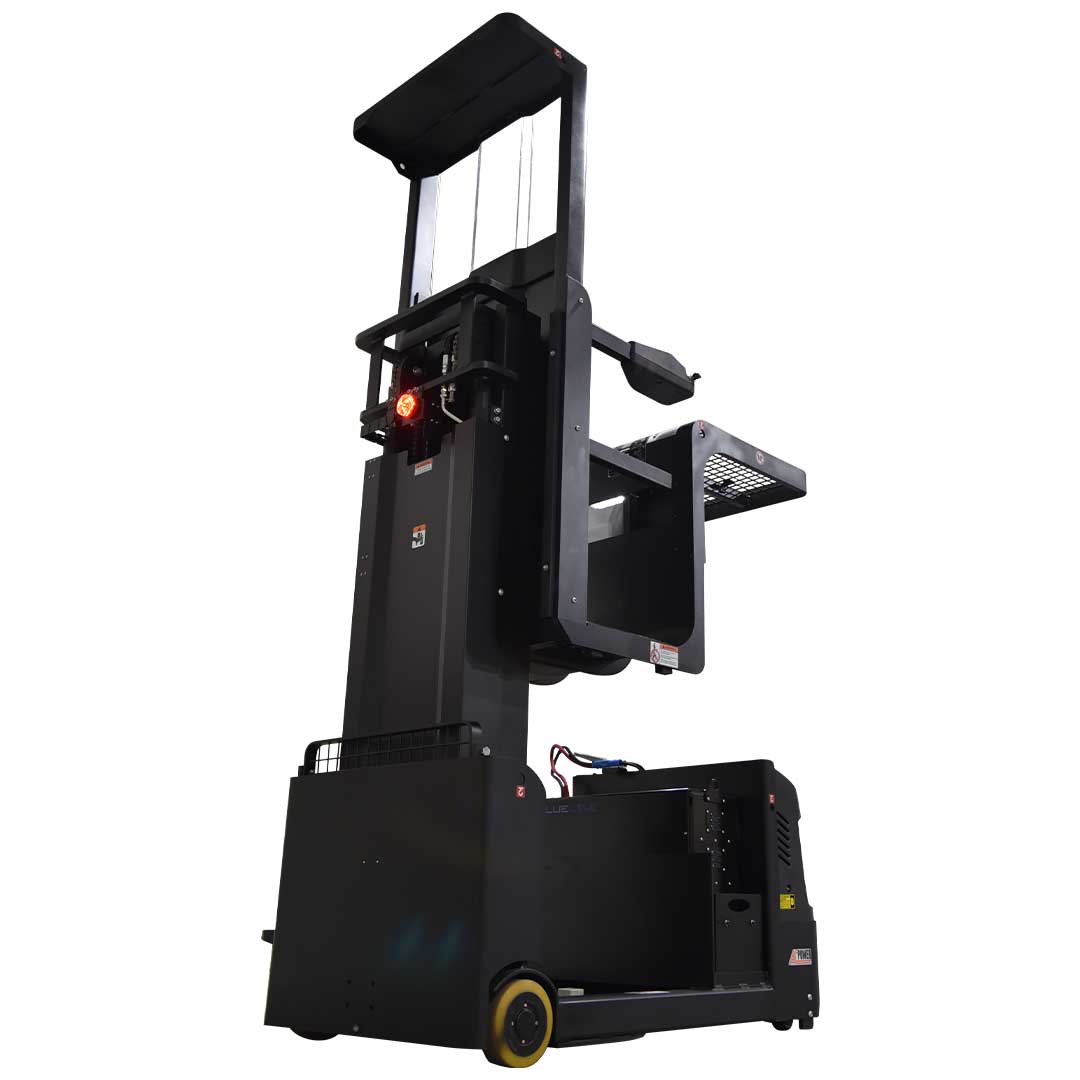

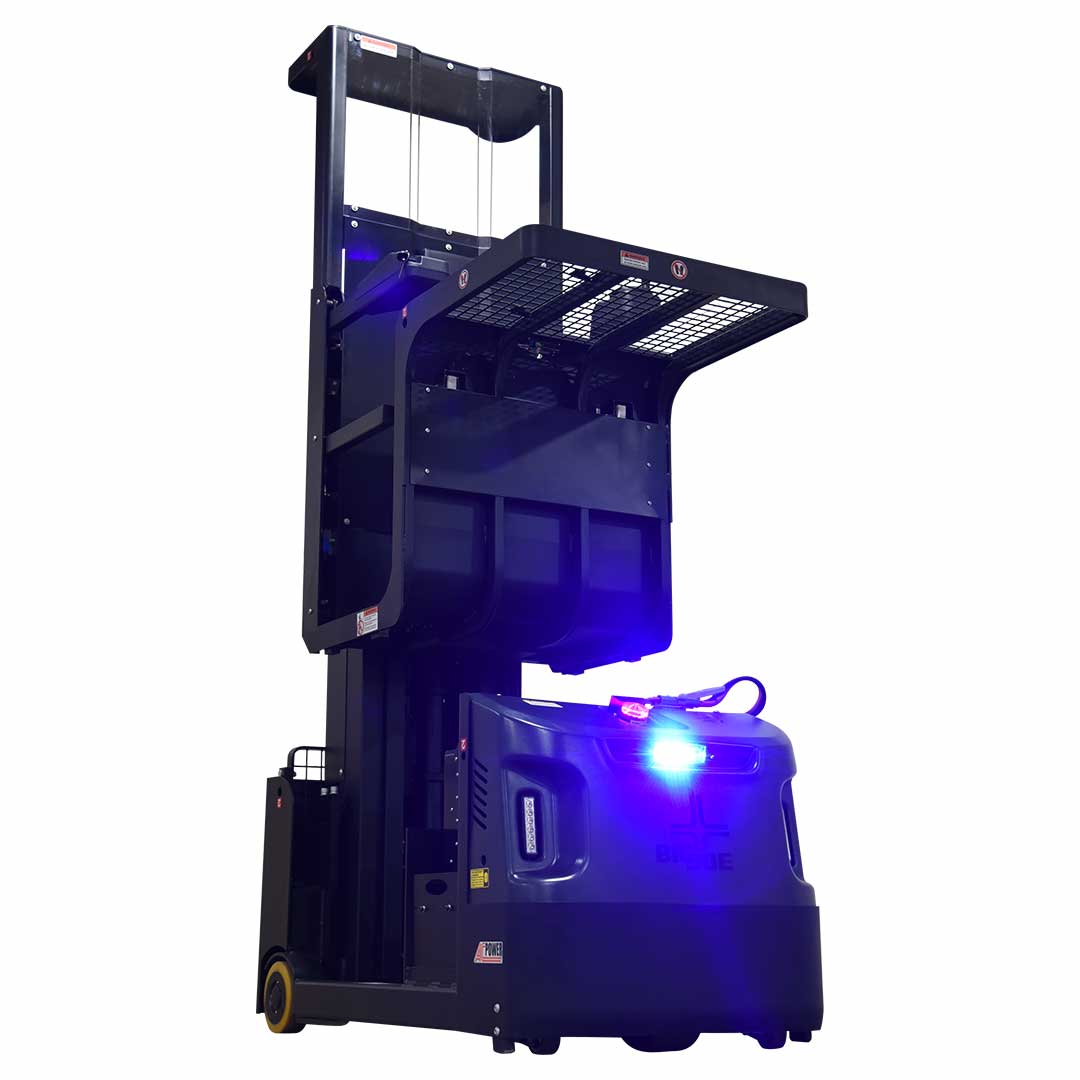

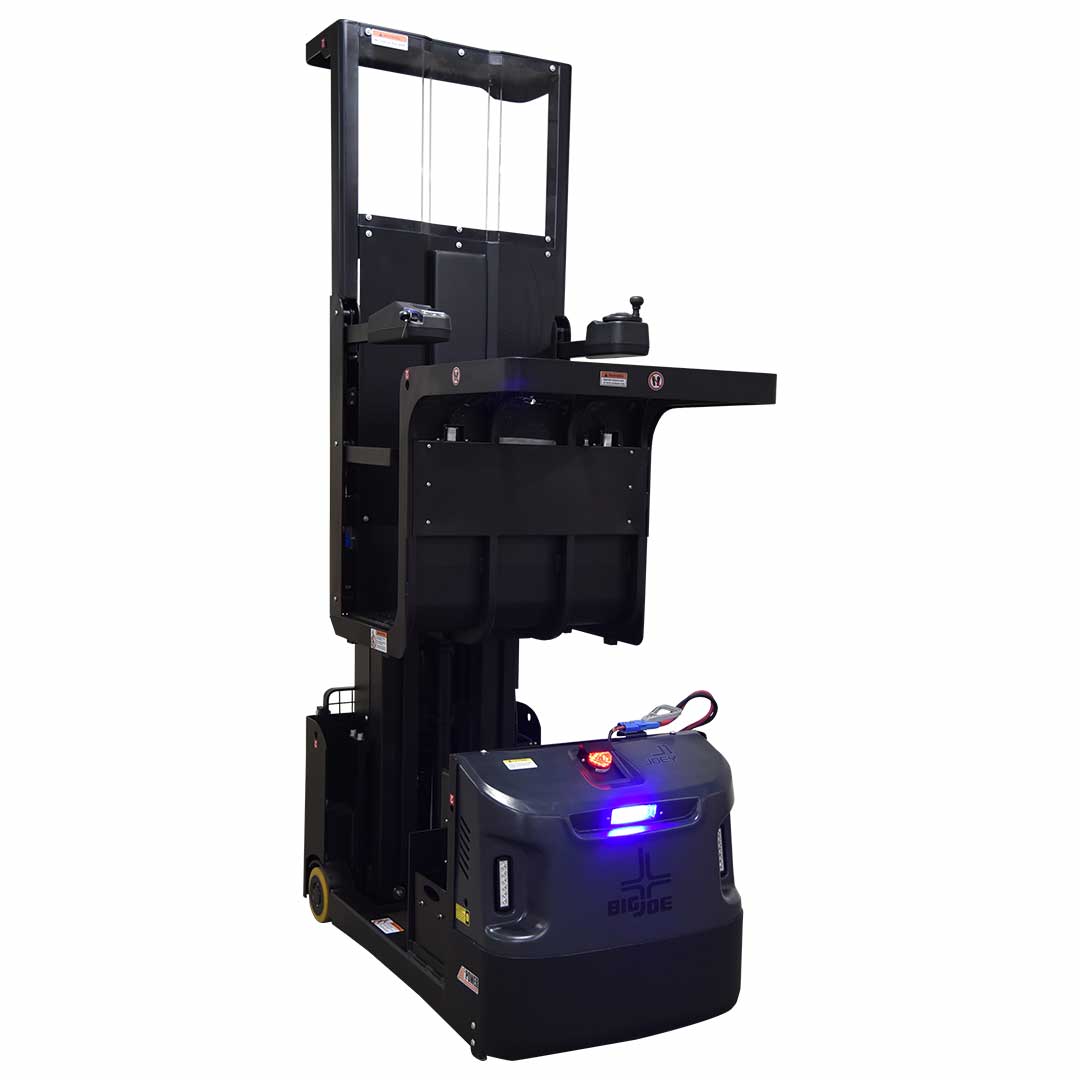

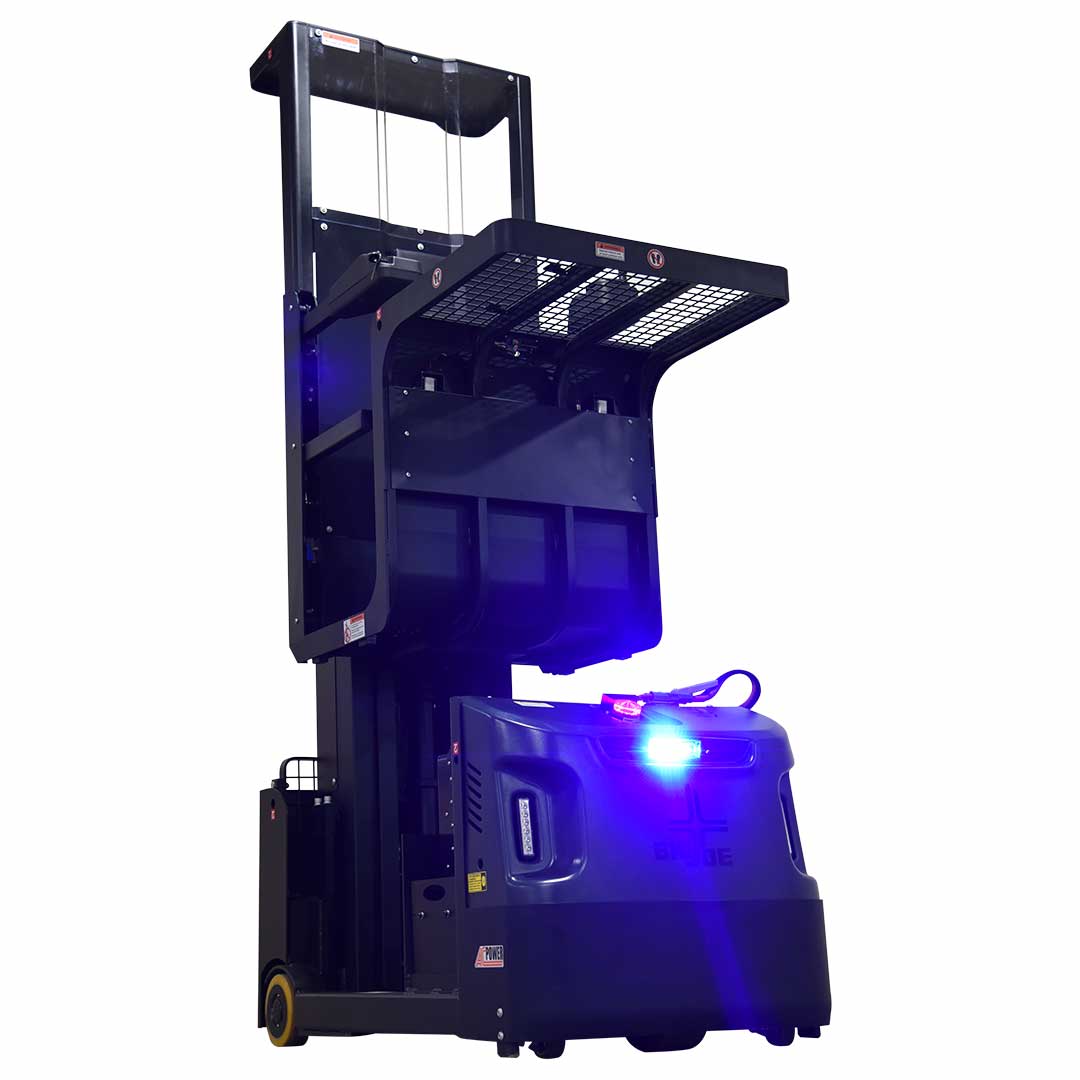

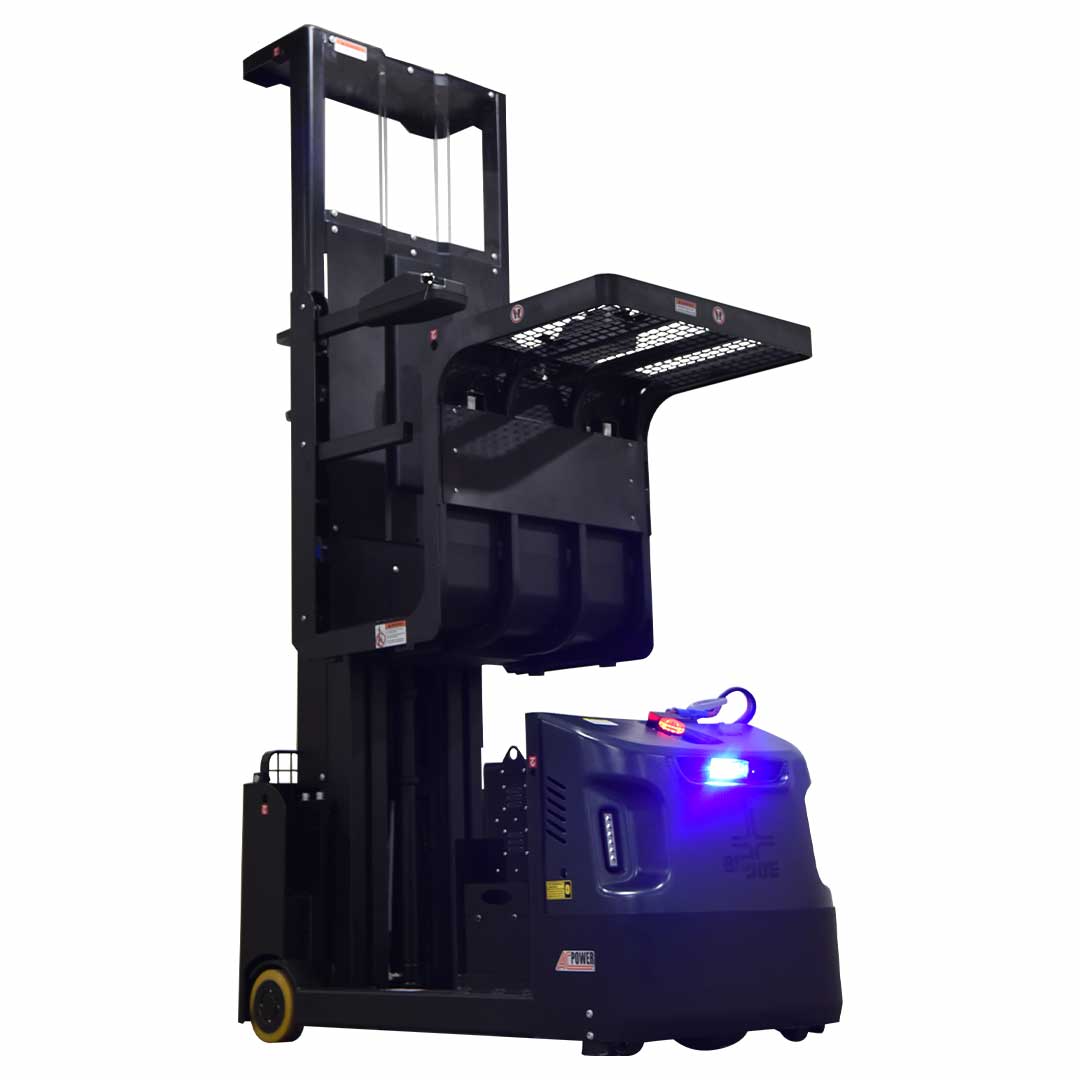

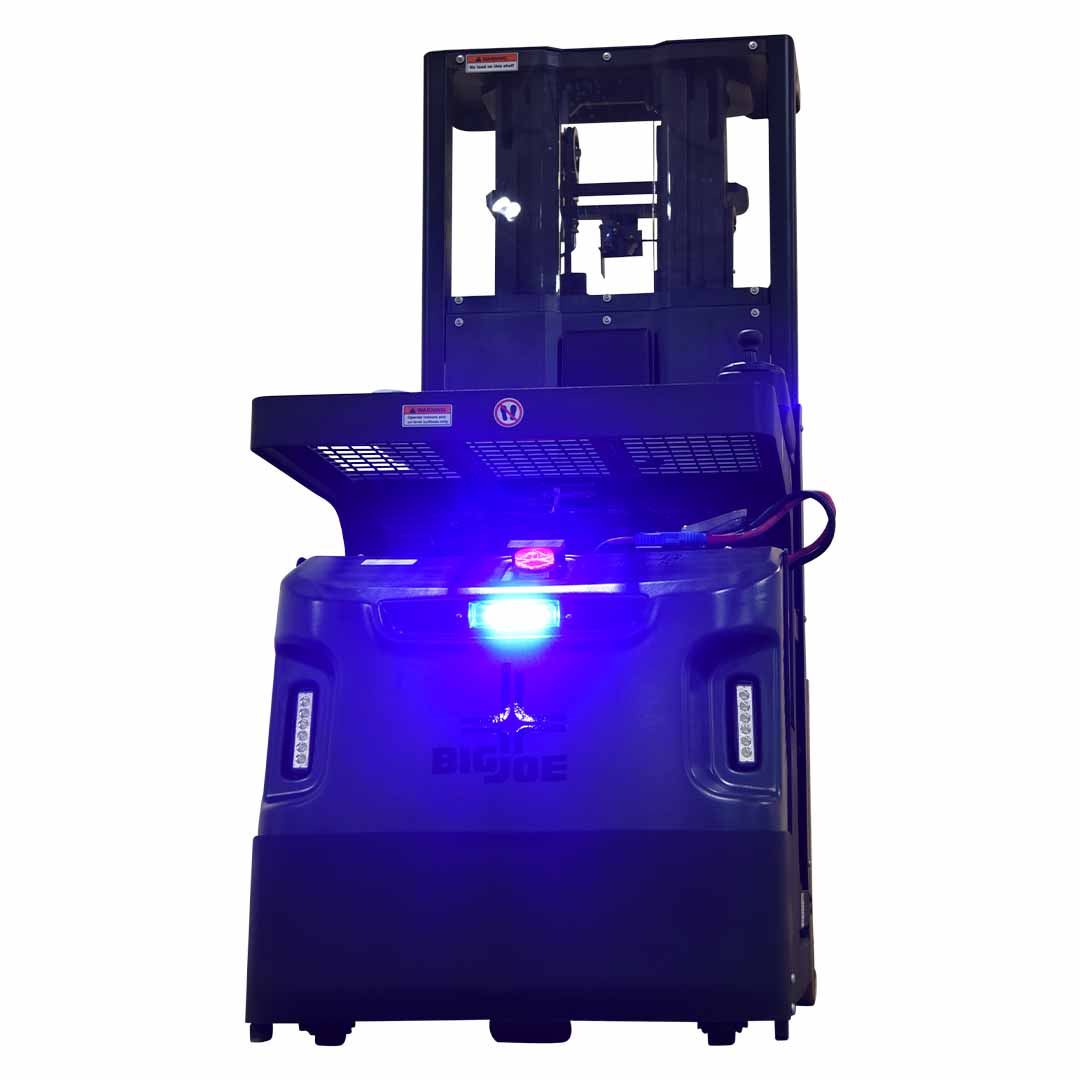

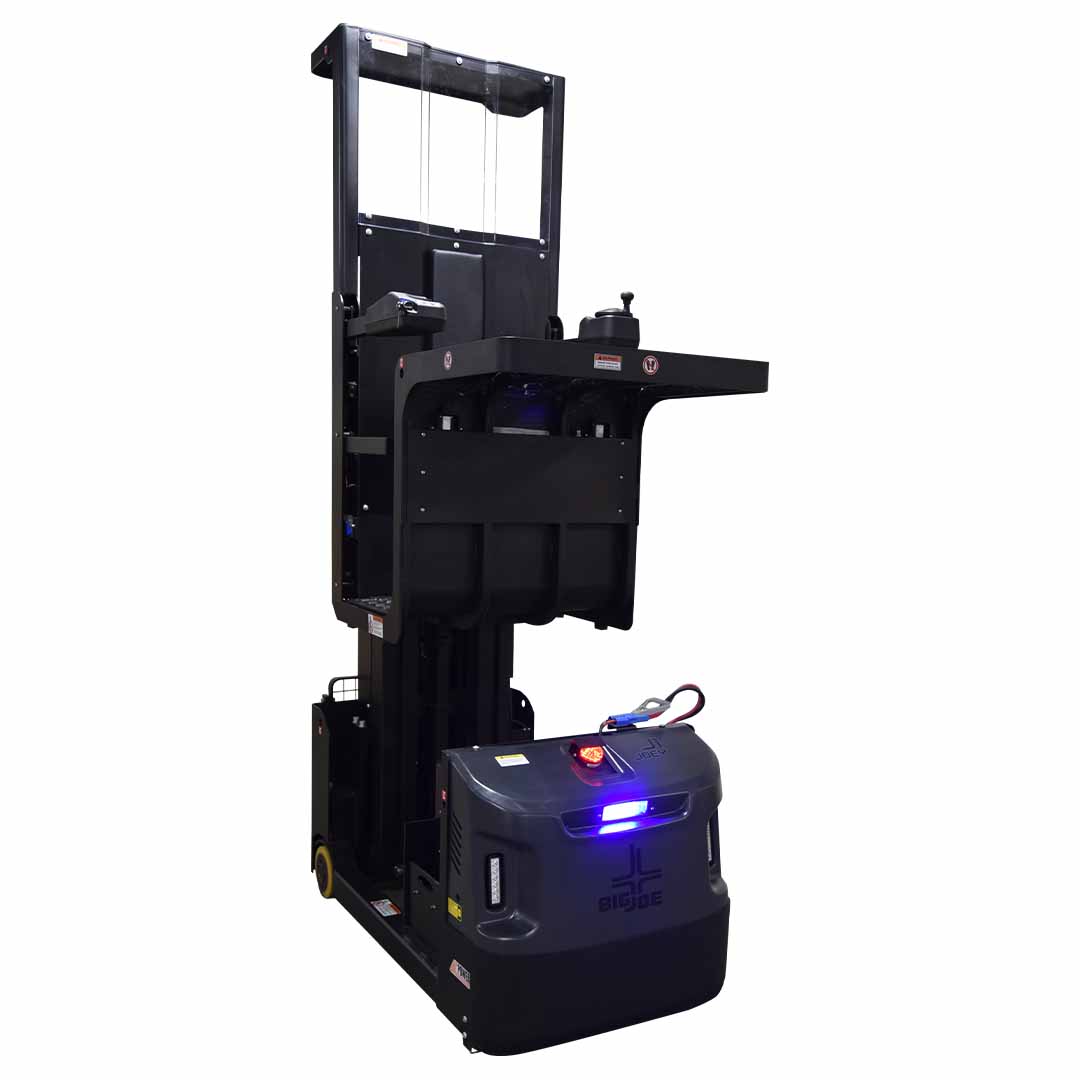

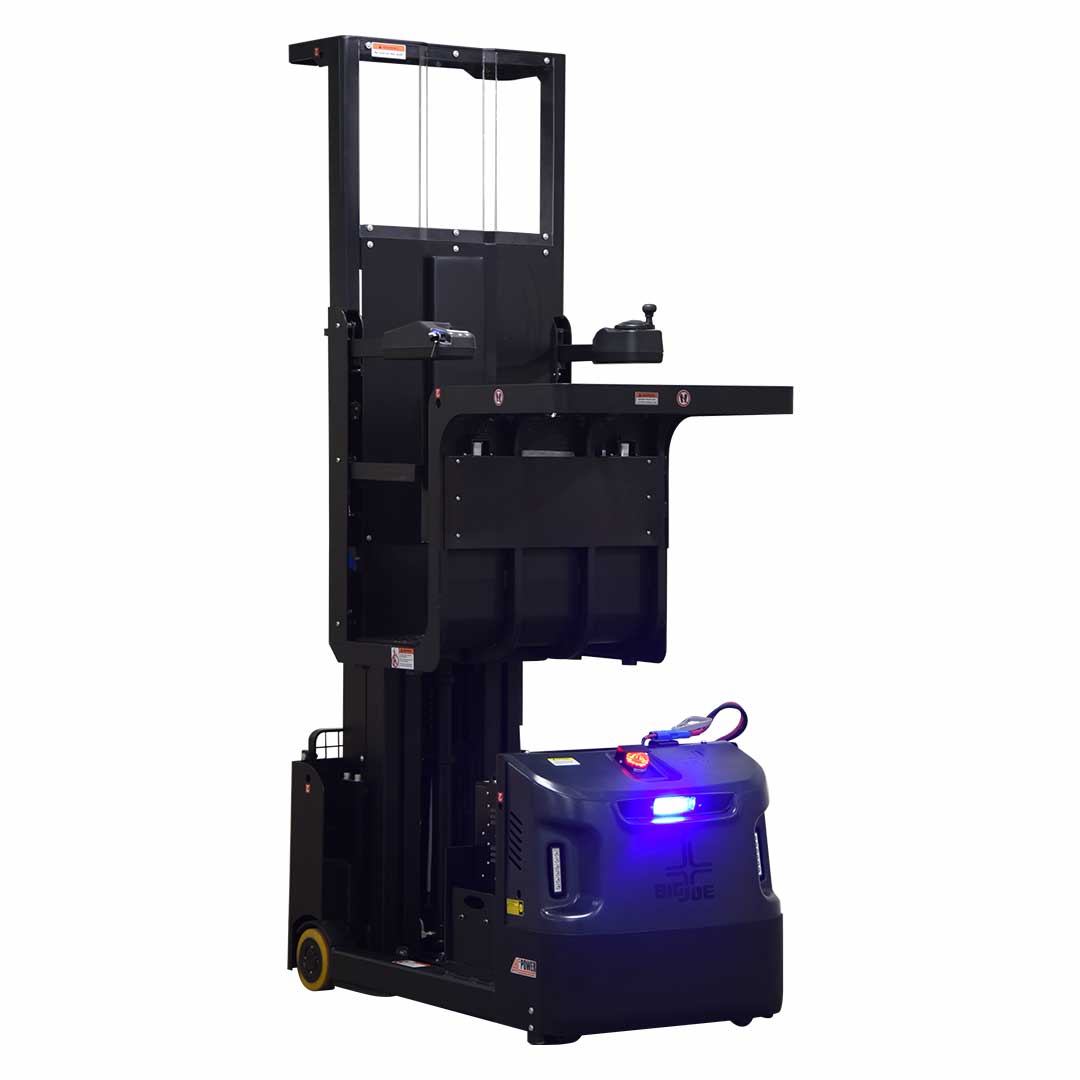

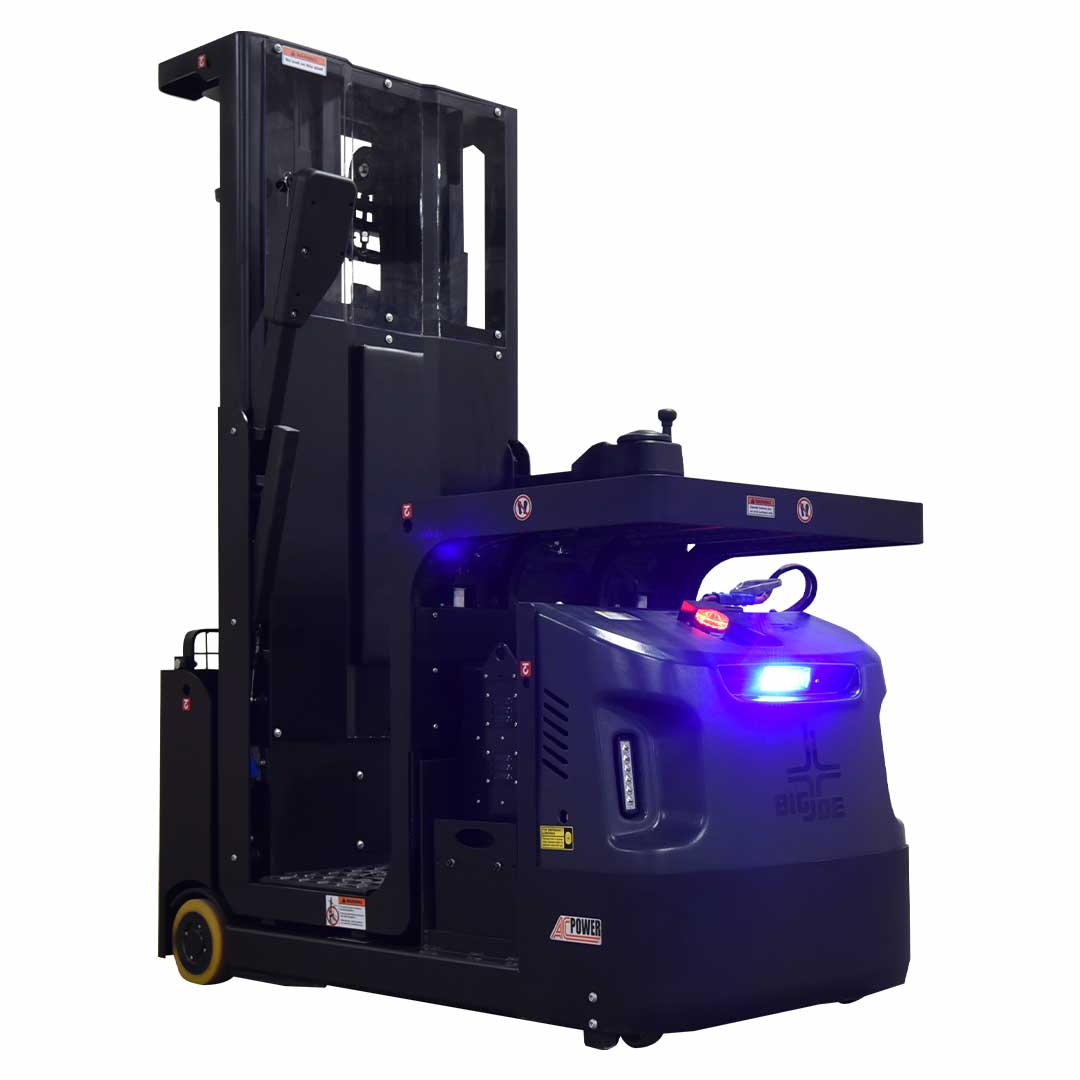

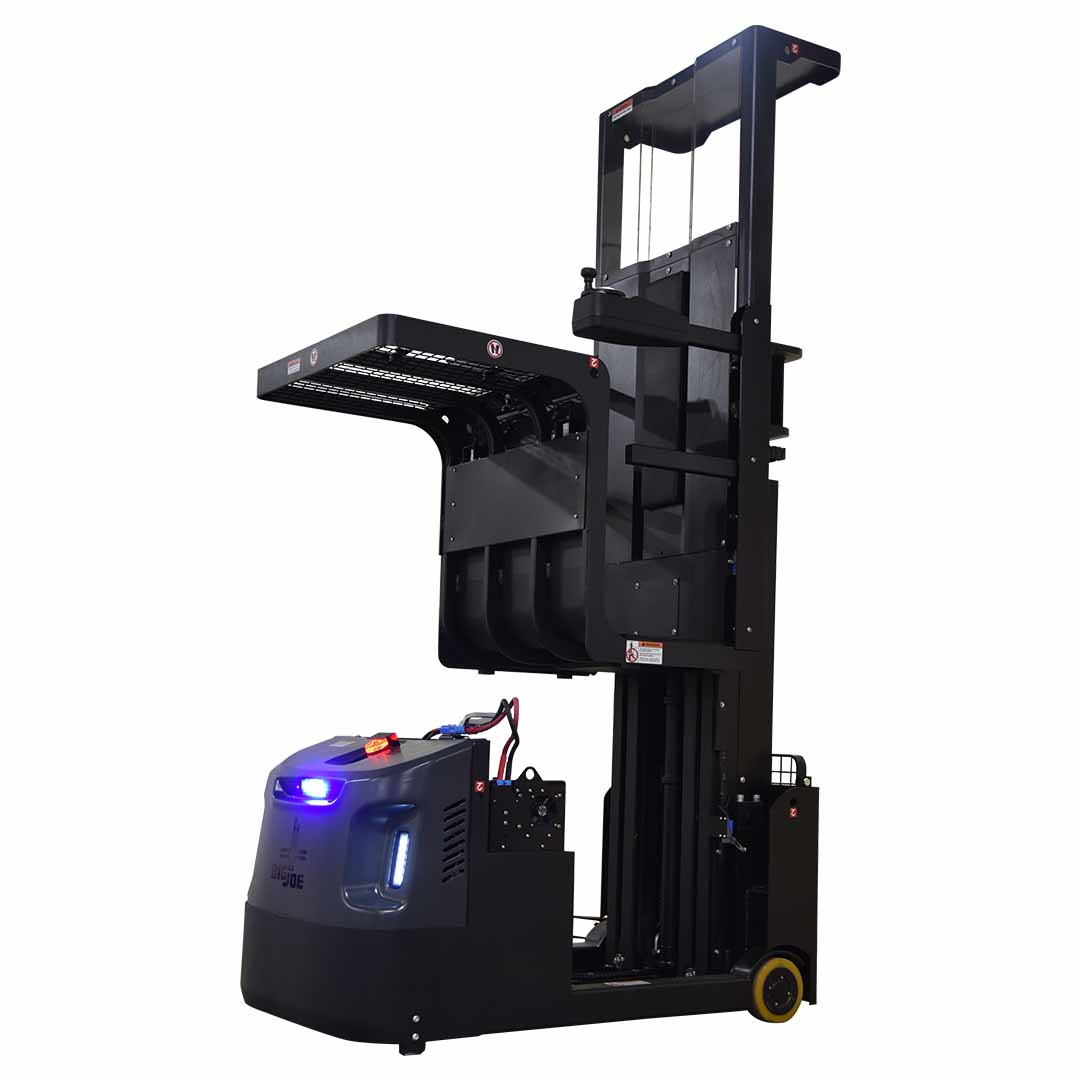

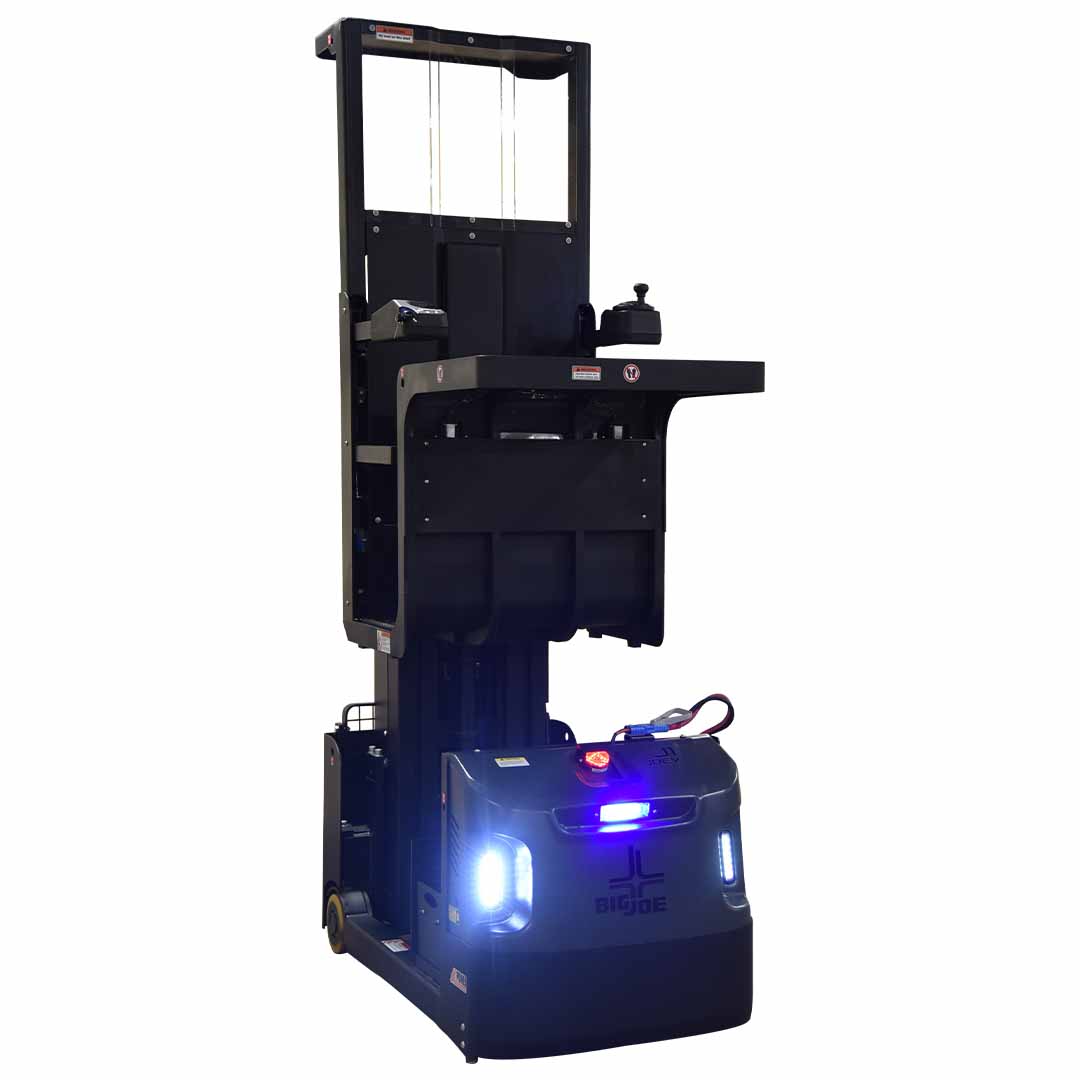

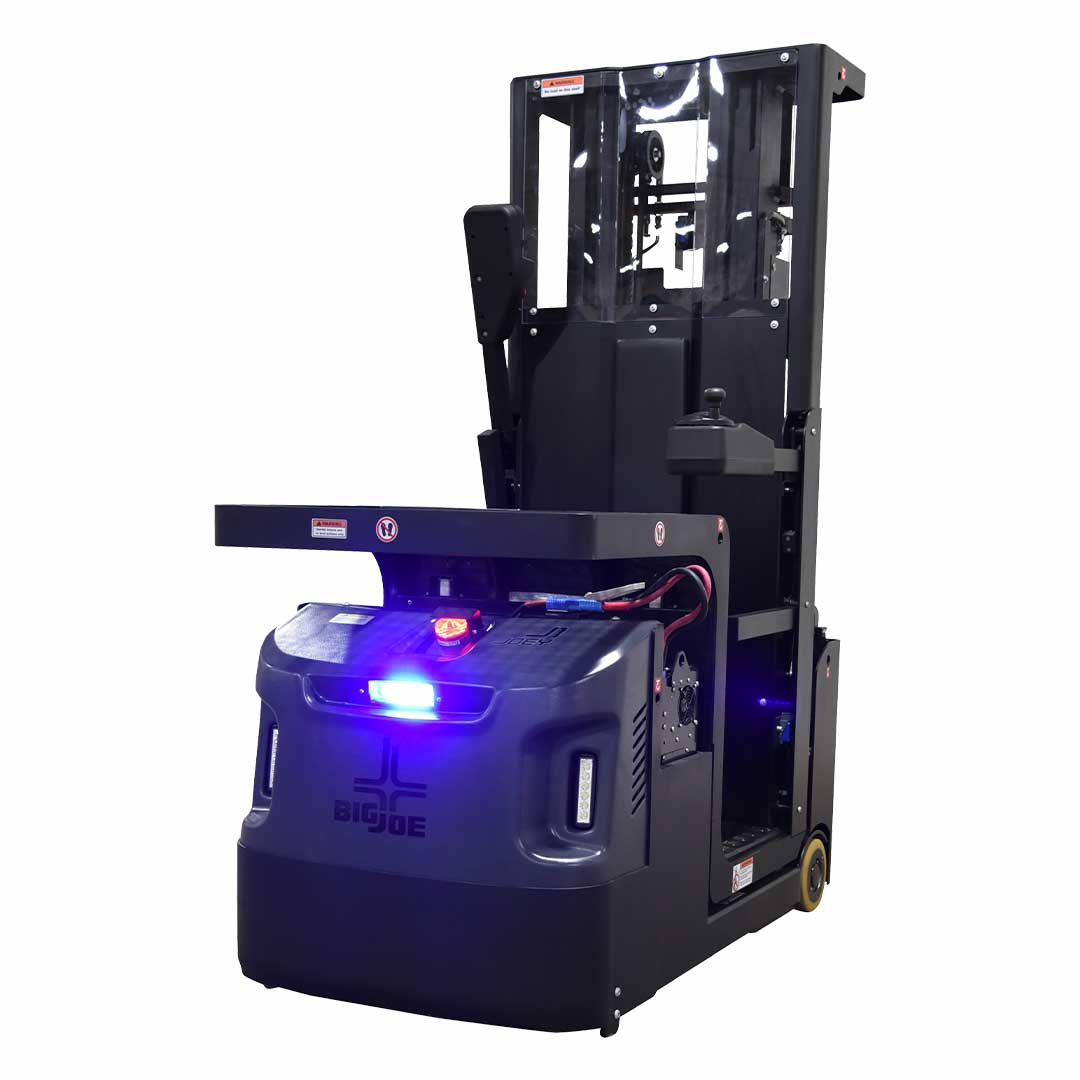

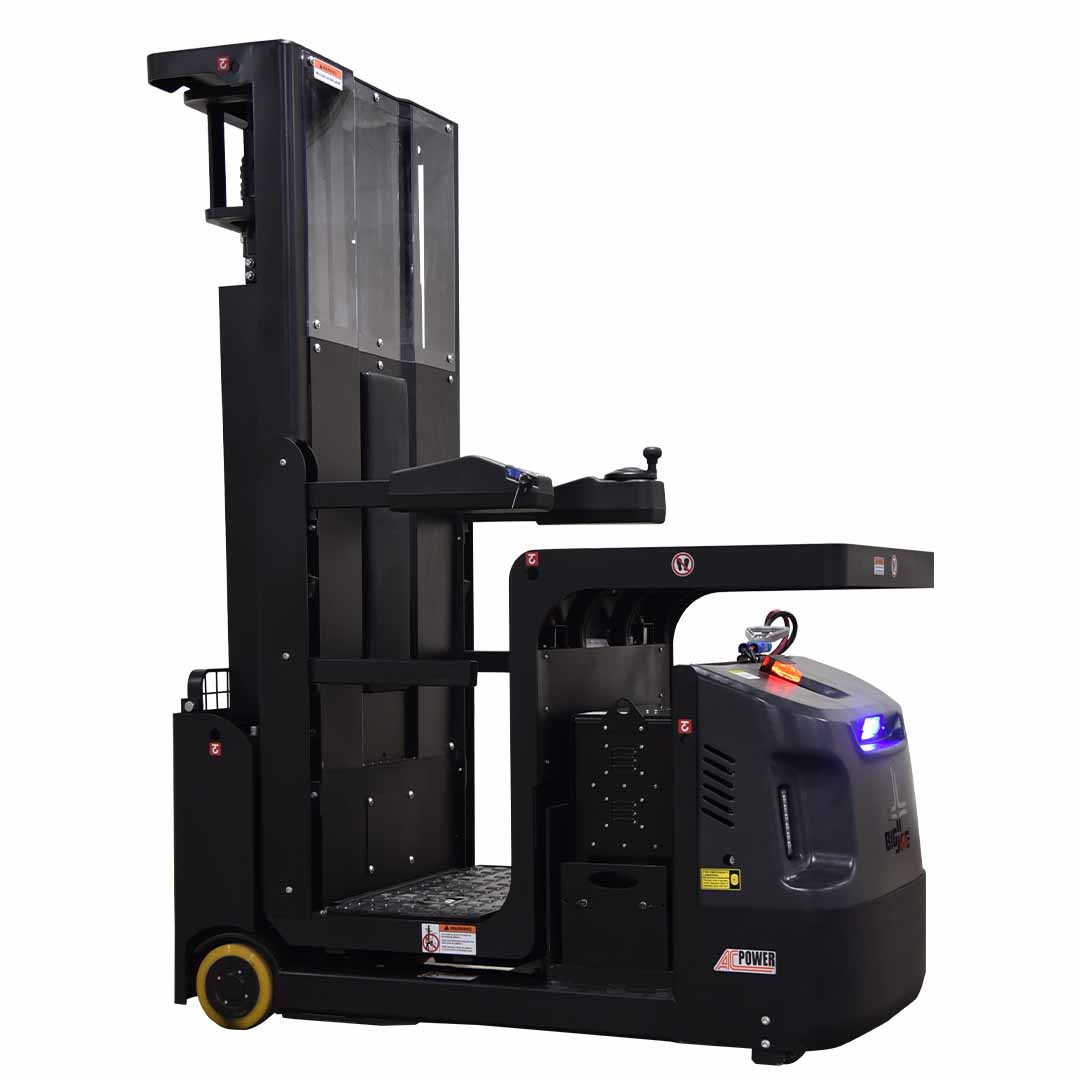

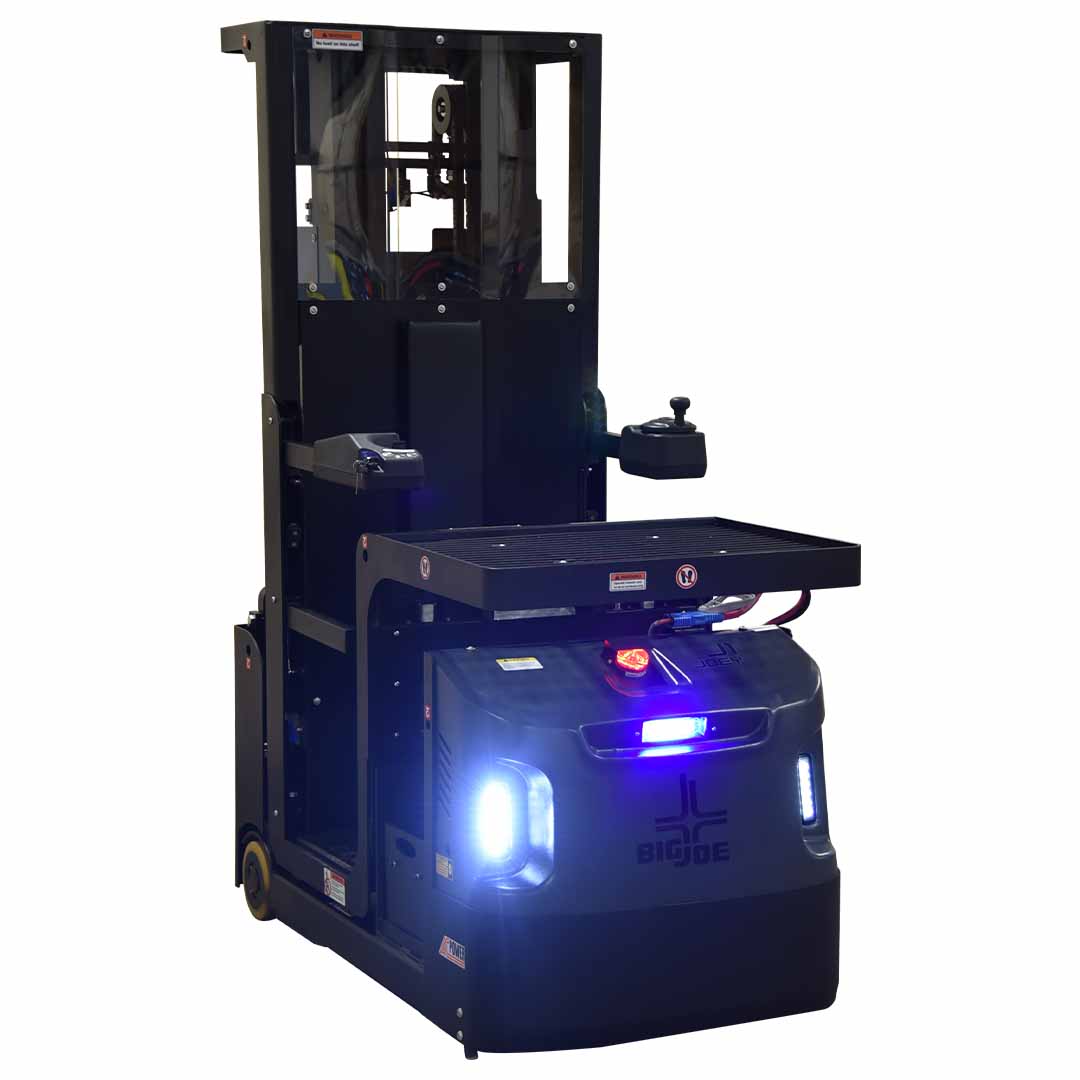

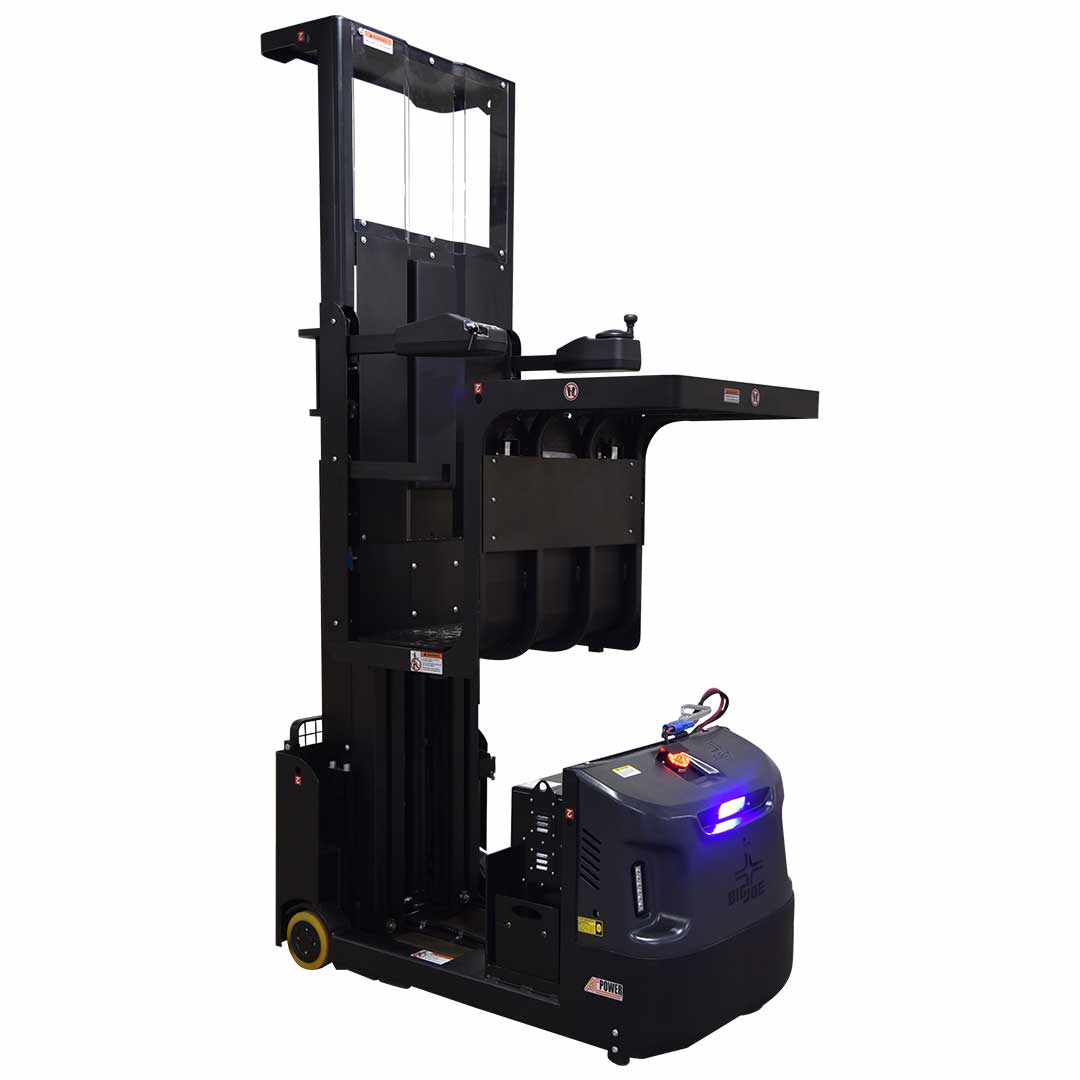

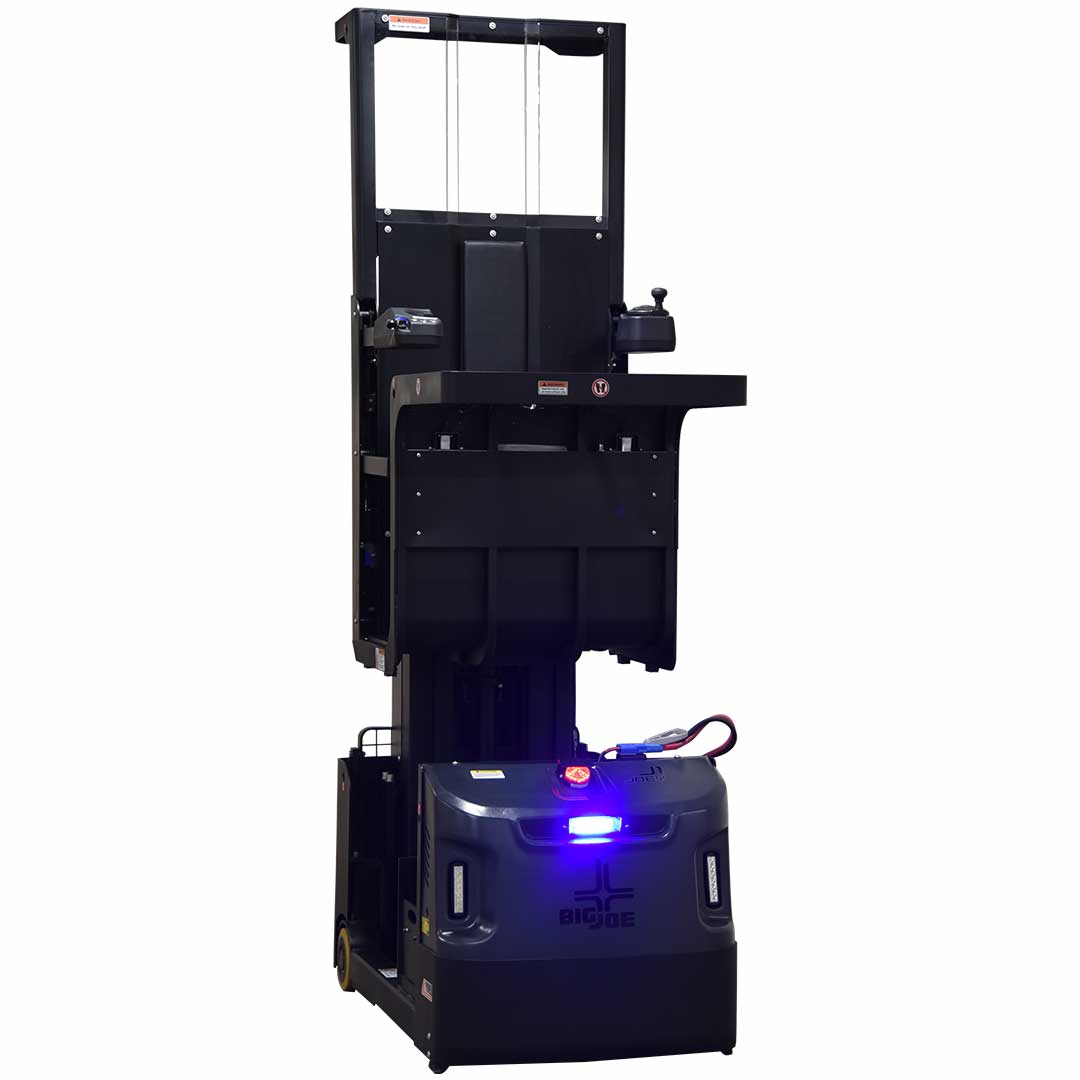

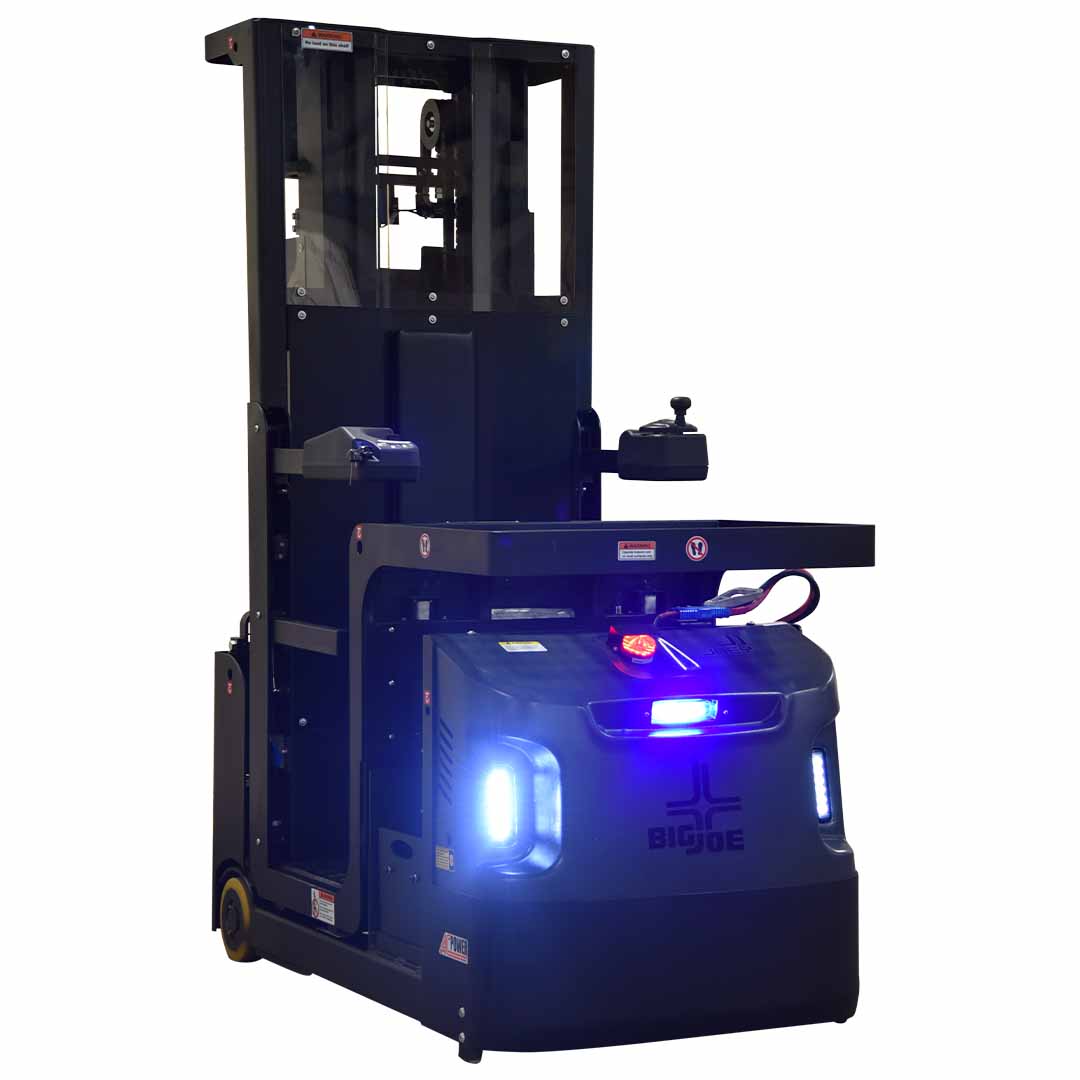

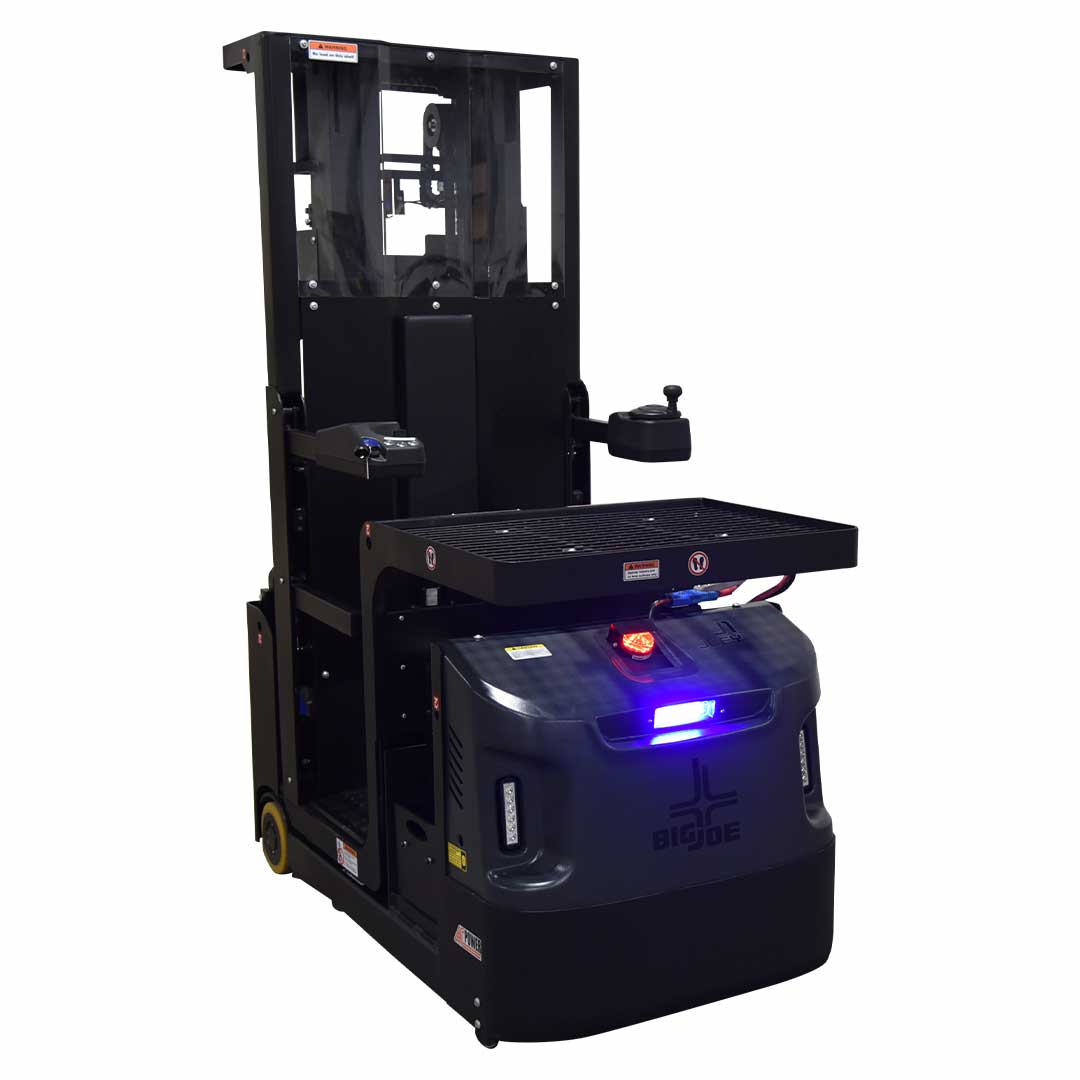

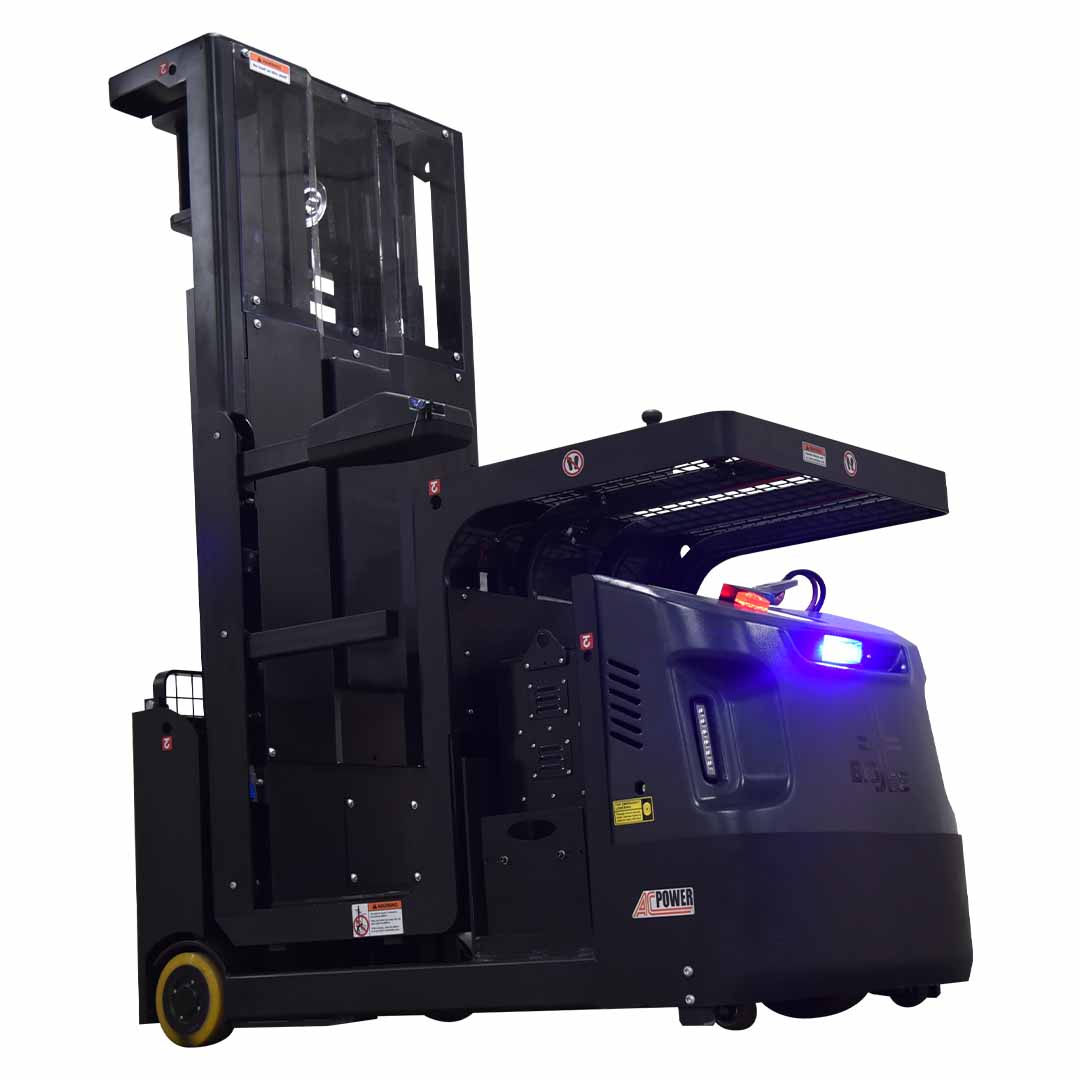

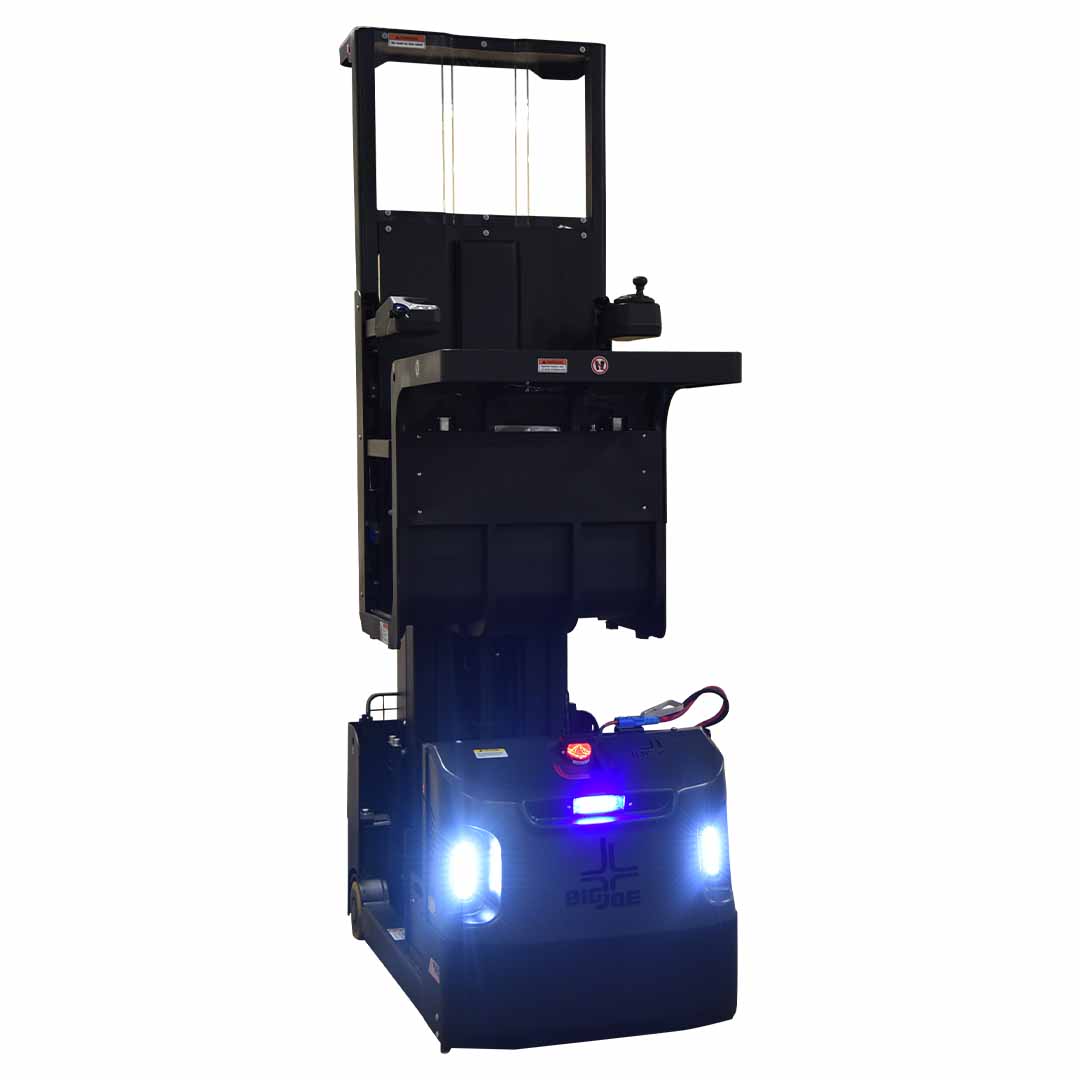

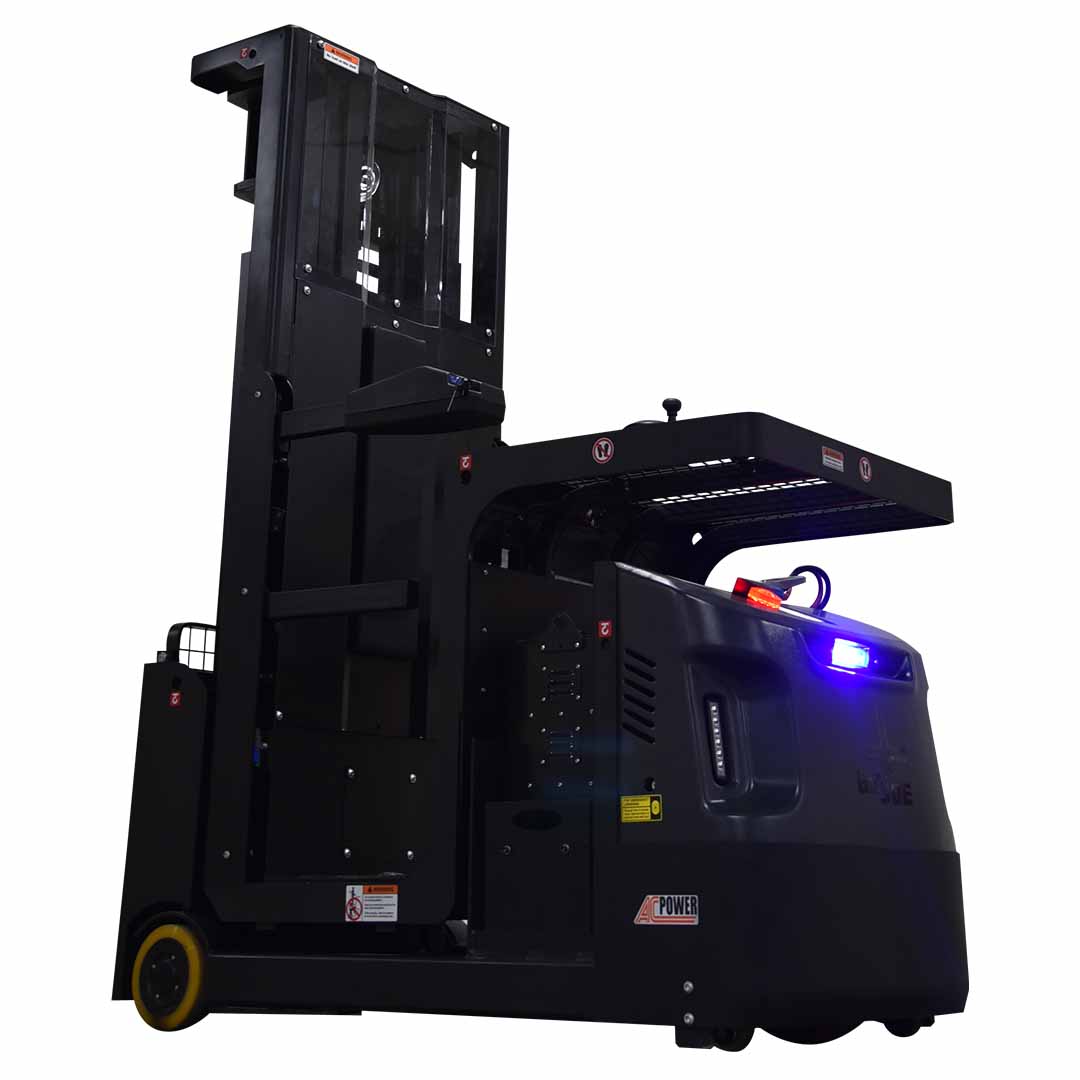

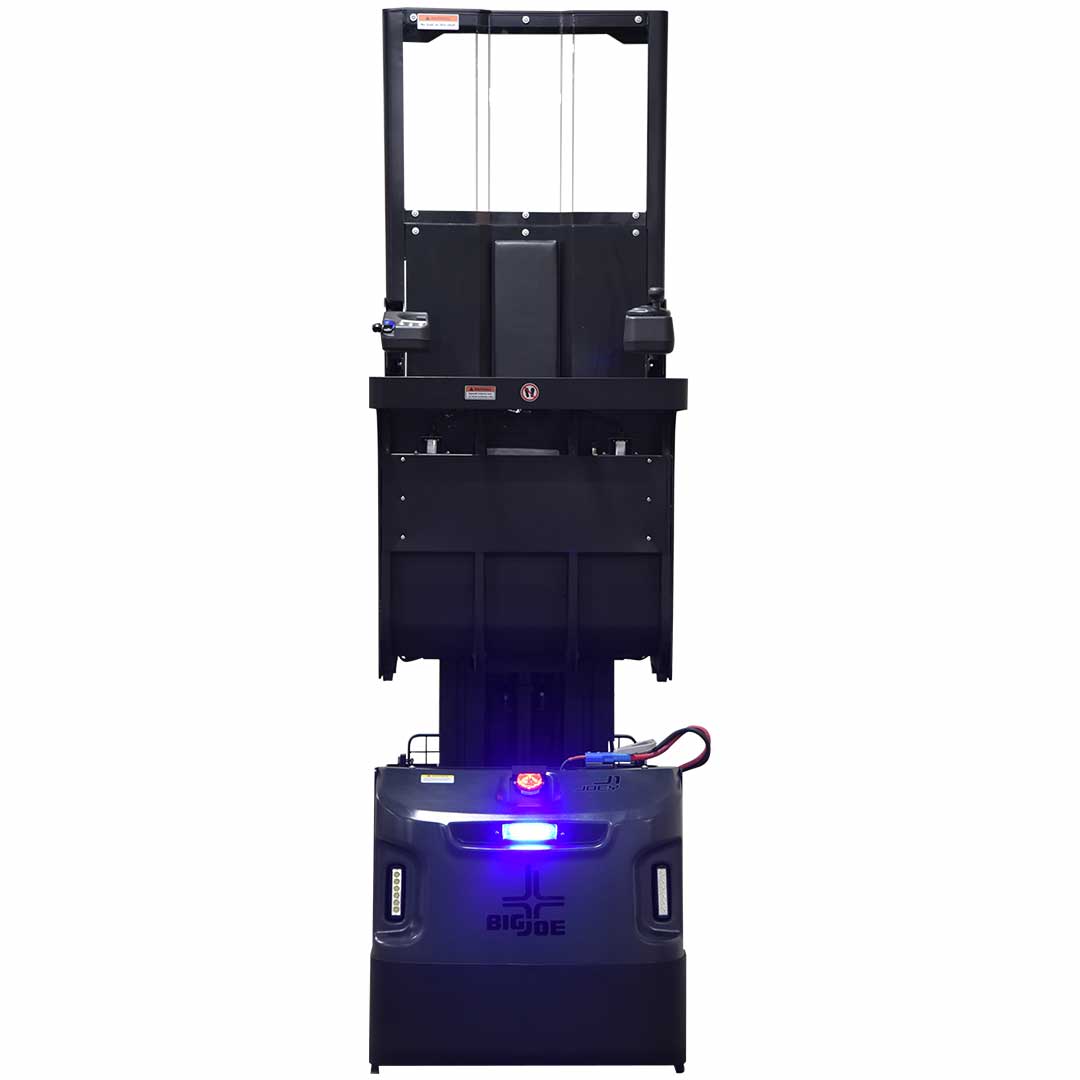

J1HD Super Joey Task Support Vehicle

The J1HD Super Joey was designed to out-perform ordinary order pickers and utility vehicles in large warehouses and DCs.  Based on the best-selling Joey task support vehicle, the J1HD Super Joey is a little larger, rises up a lot higher and travels twice as fast.  With 210” of lift and a top speed of 7mph, it is able to reach the 4th level of racking and whisk from storage to shipping in record time.  Its optional 48V Li-ion power system delivers high-performance travel, lift speed, enhanced duty cycles and extended run-times.

Features

Up to a 1,200lb. total vehicle capacity including a carrying capacity of 700lb. front tray, 300lb. operator, 200lb rear tray*

LCD dash display with selectable travel settings and diagnostics

Electronic power steering with infinitely variable speed control

Finger tip controls integrated into retractable vehicle guardrails

 Premium steel I-beam mast construction and unitized steel frame

 180 degree articulating driveline with 79" minimum turn aisle

Specifications
Vehicle Type

Task Support Vehicle

Load Capacity

1,200lbs.

(700 front / 300 operator / 200 rear)

Power

48 volt AC electric

Zapi transistor controller

Max Lift Height

Operator platform raises up to 210"

Collapsed Height

83.5" / 89" (162 / 120)

Vehicle Dimensions

Download Brochure

Battery Capacity

48V Li-ion

Charger

External industrial to match battery

Product Video
