Order Pickers // J2 Joey

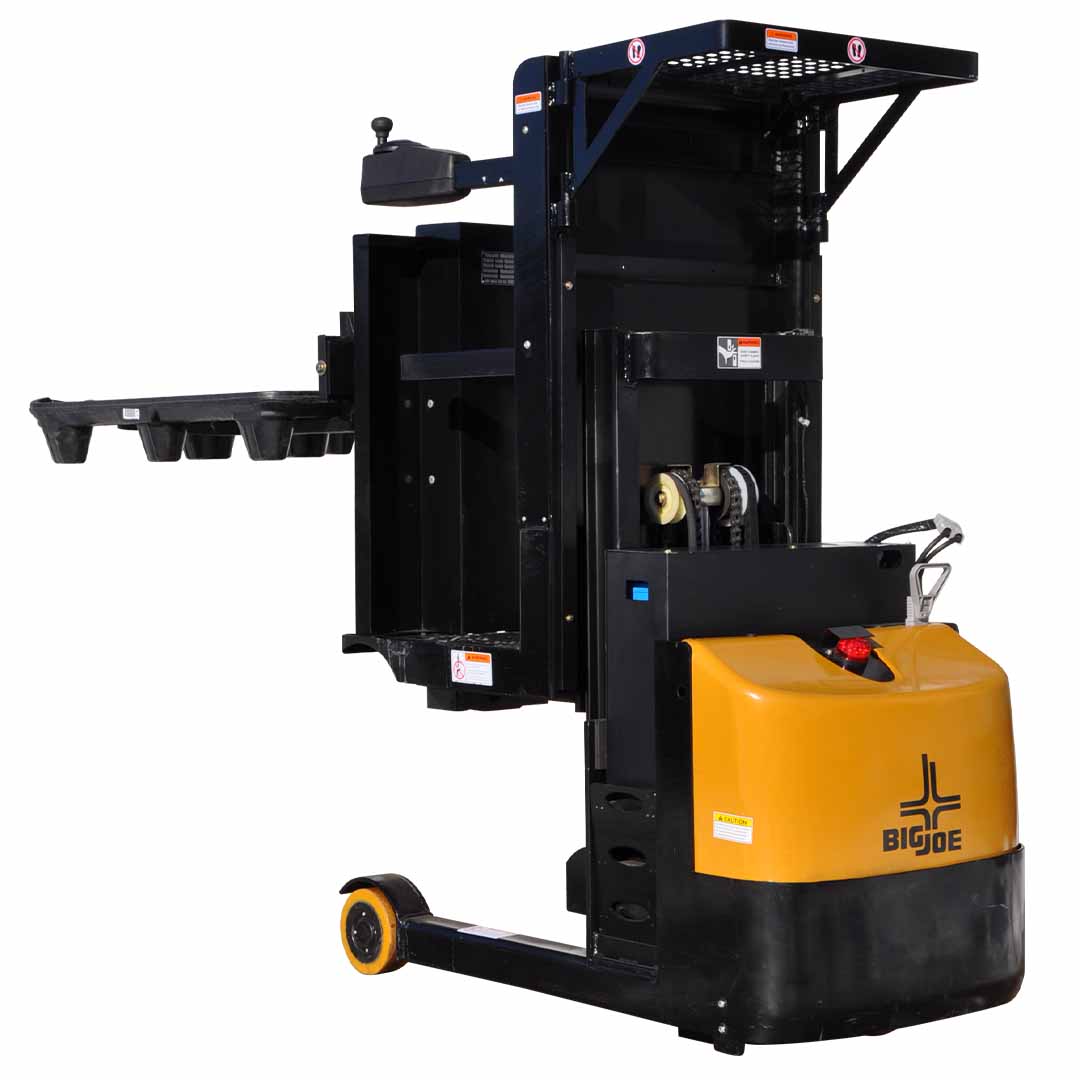

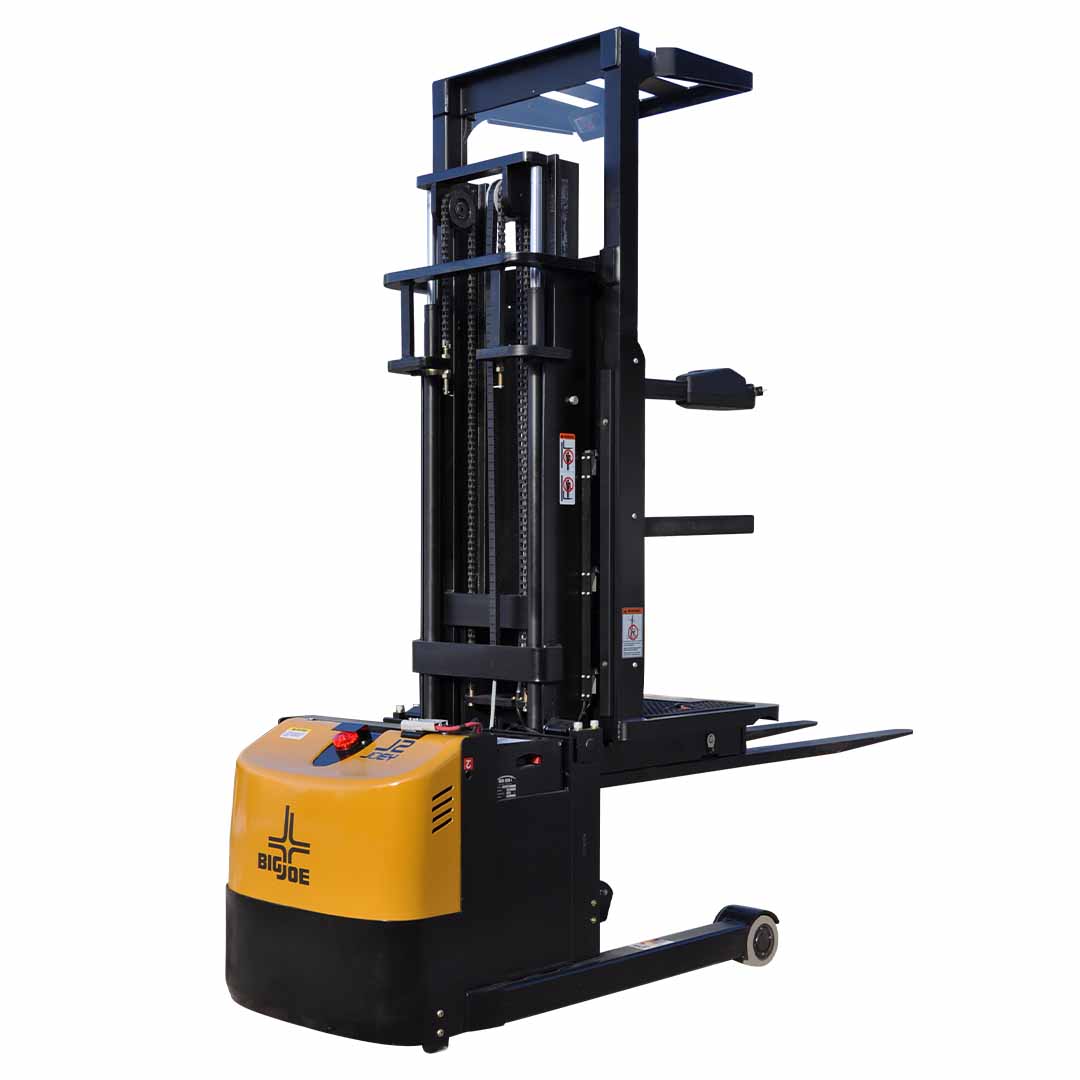

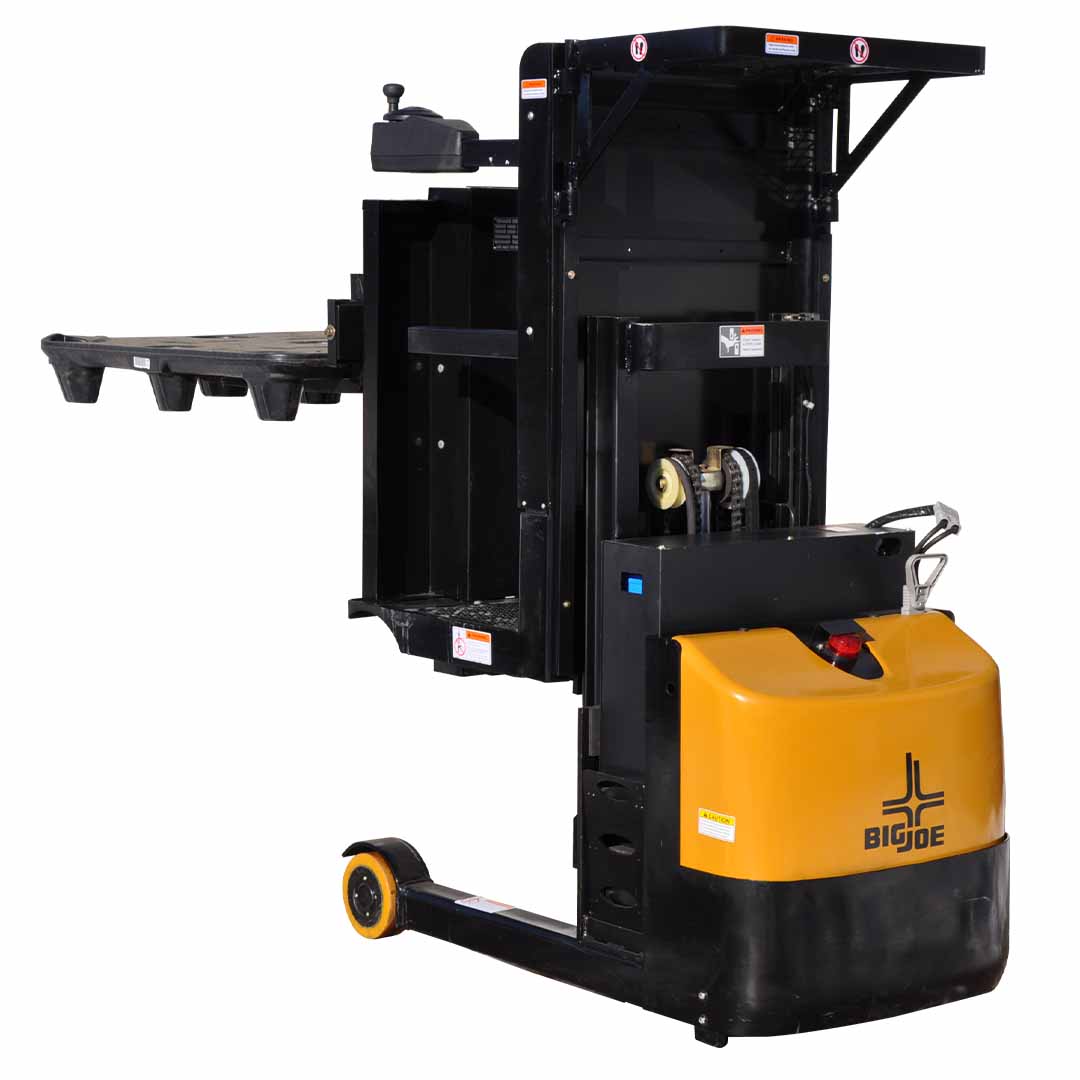

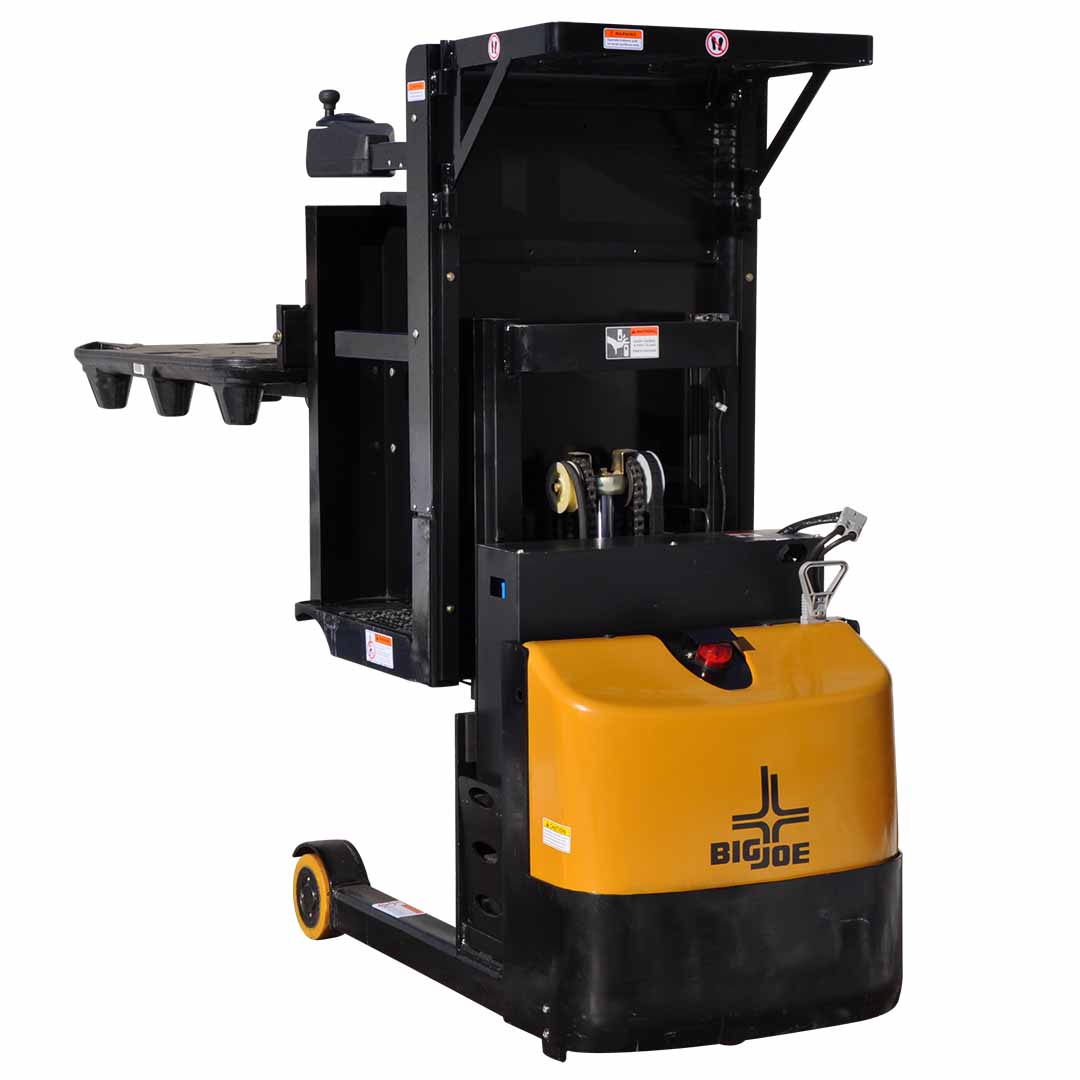

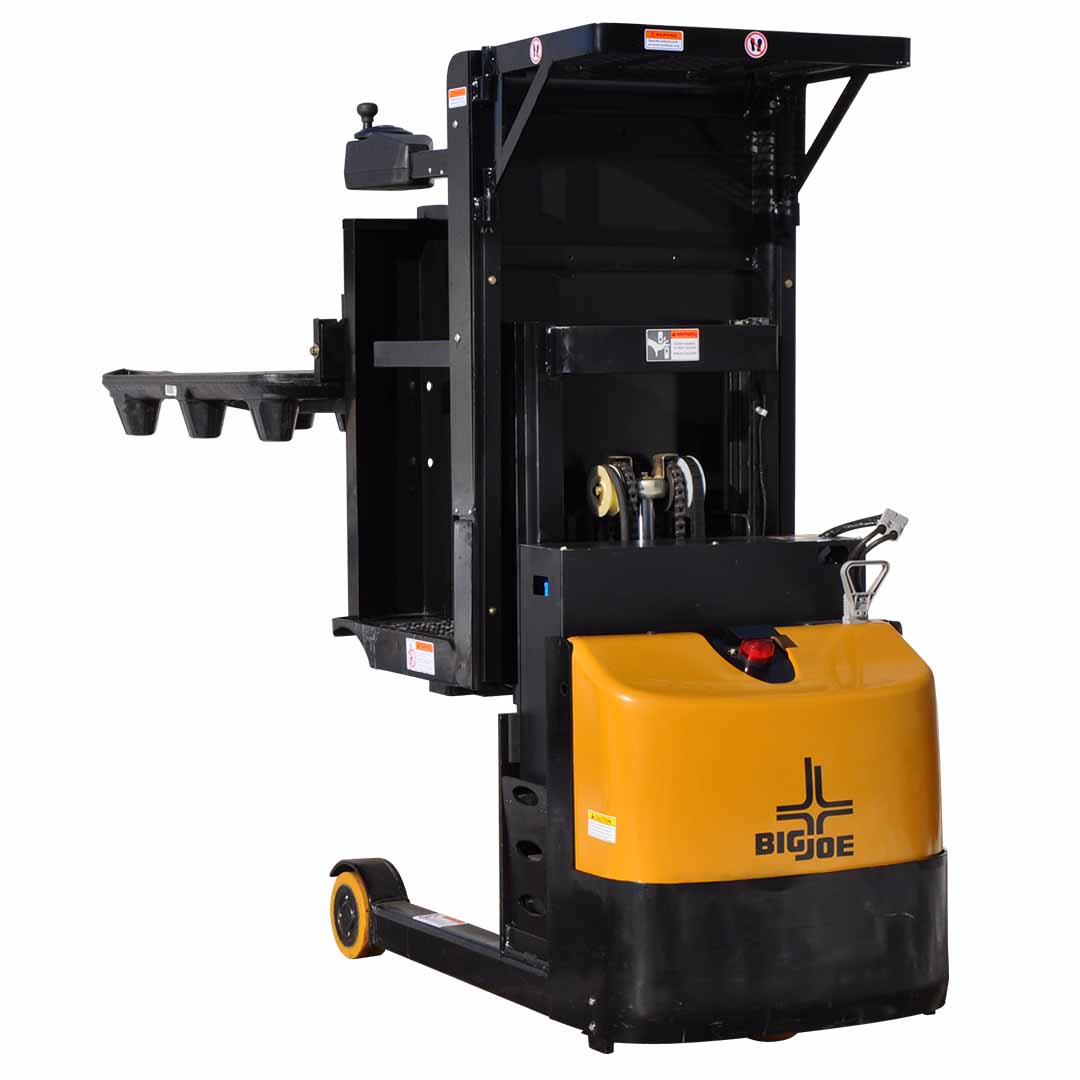

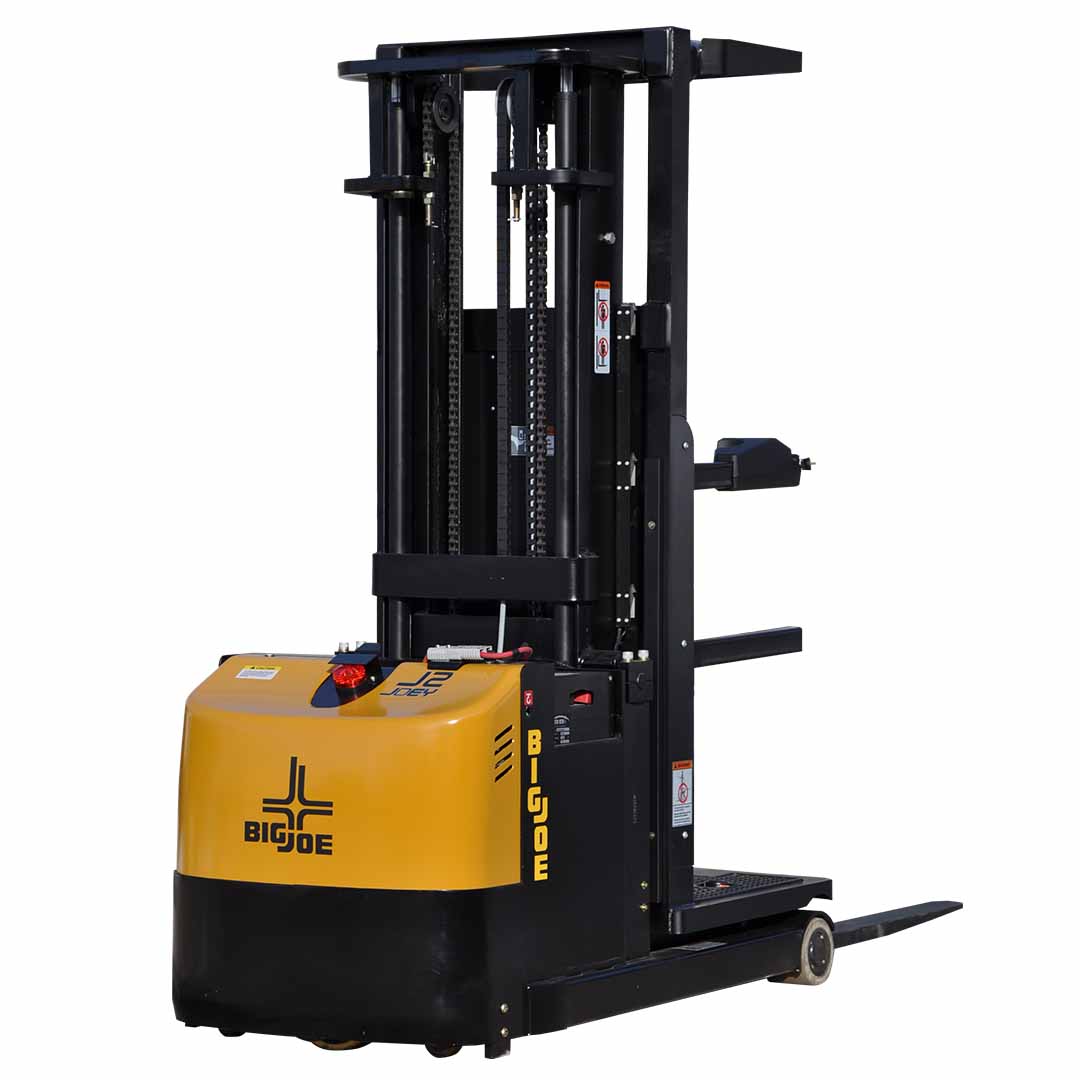

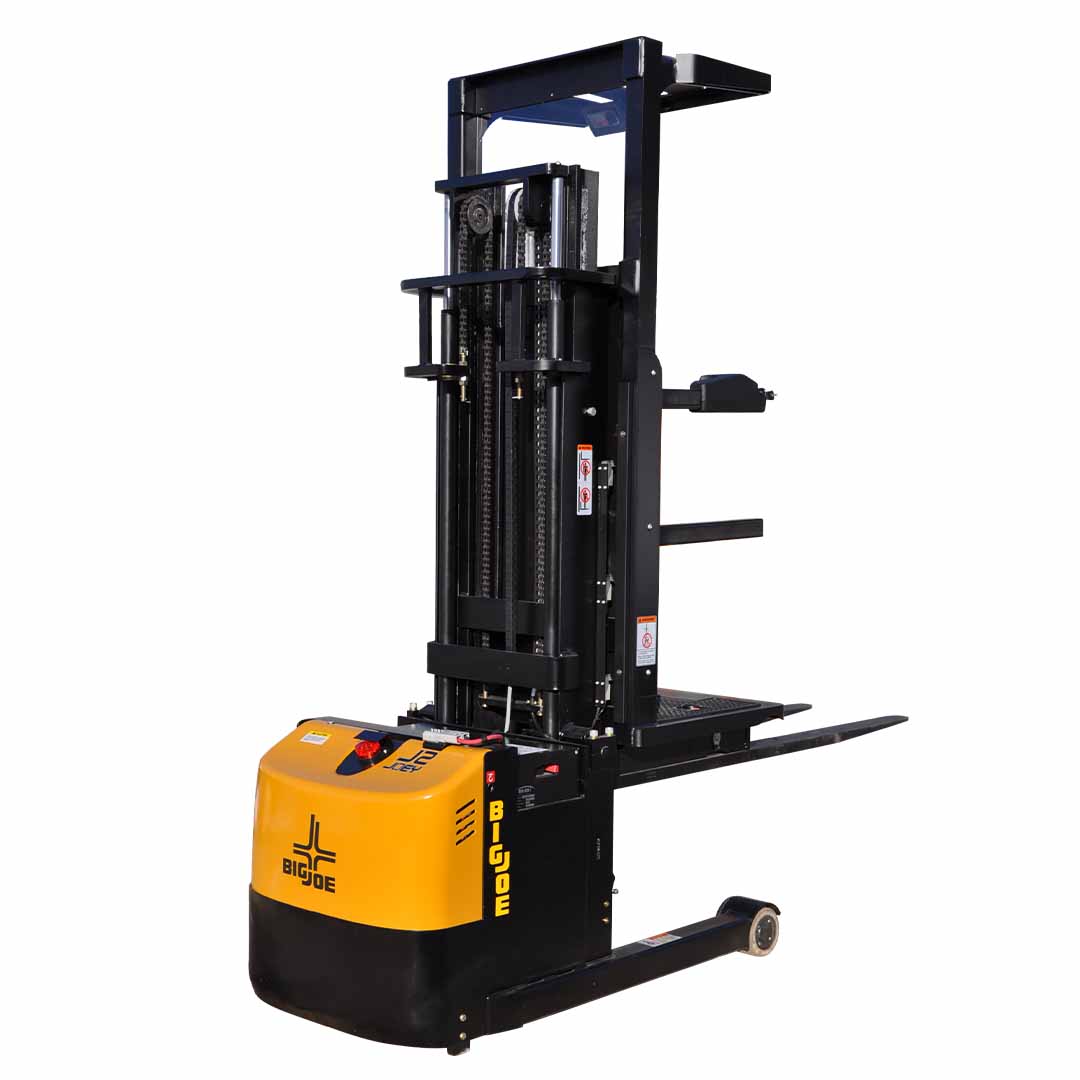

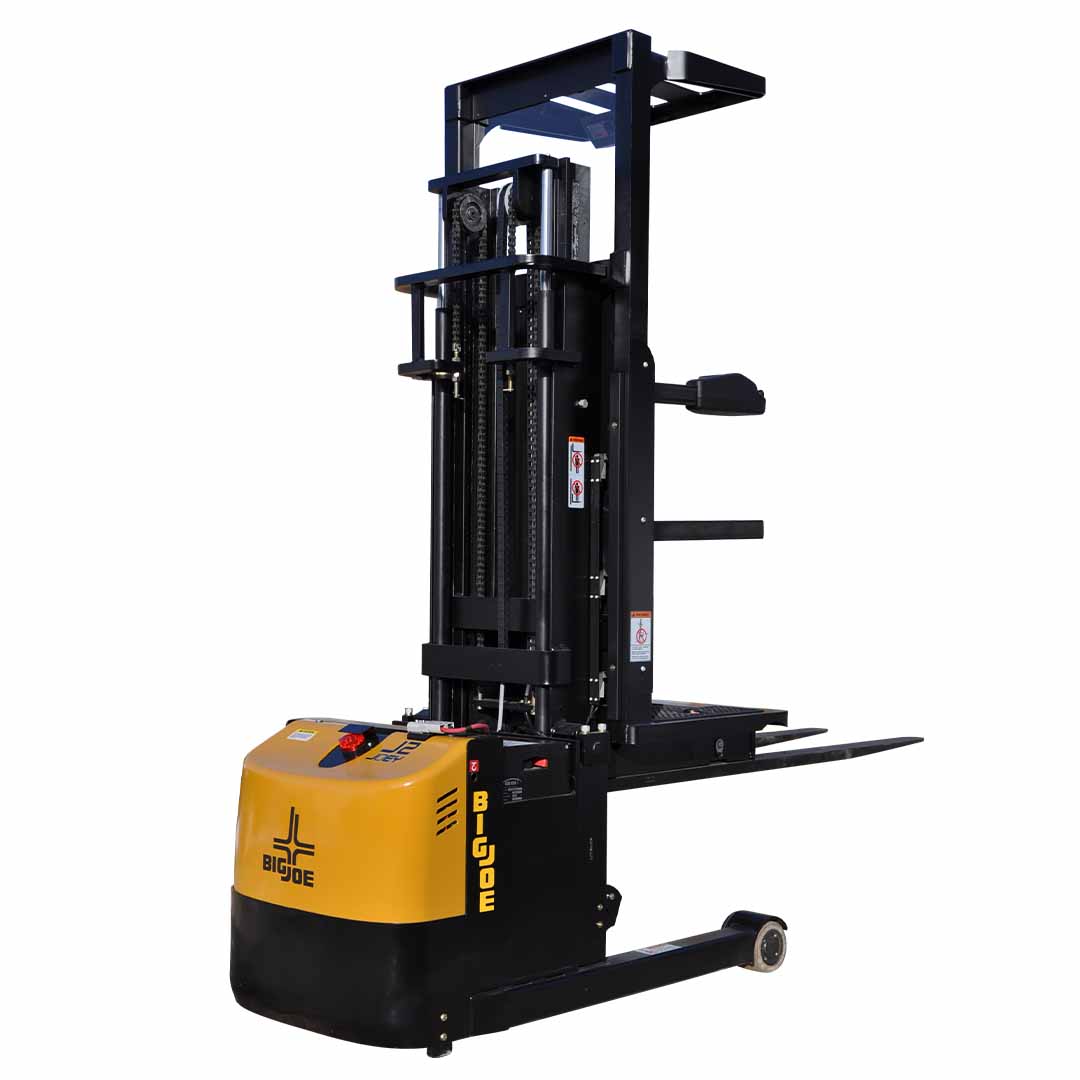

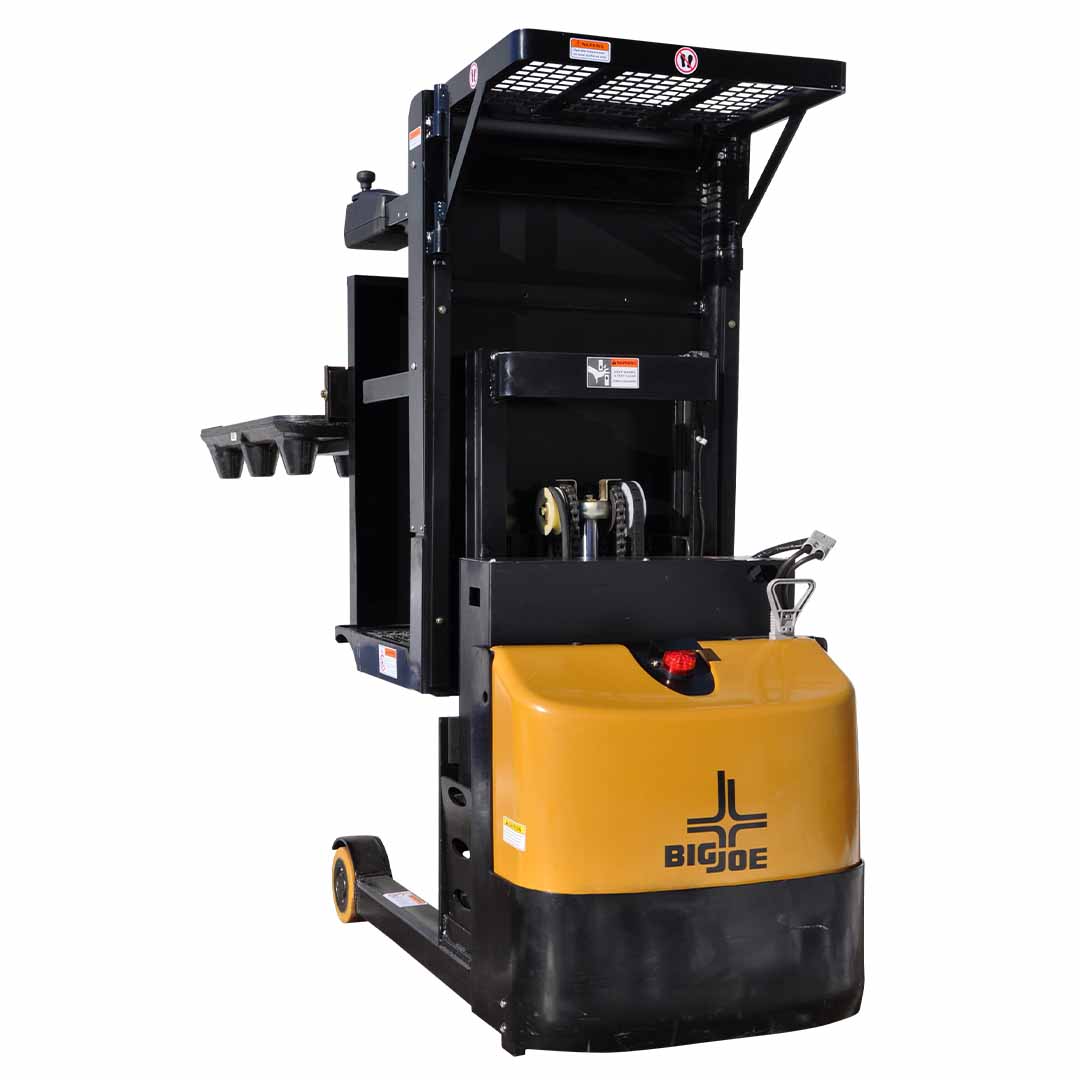

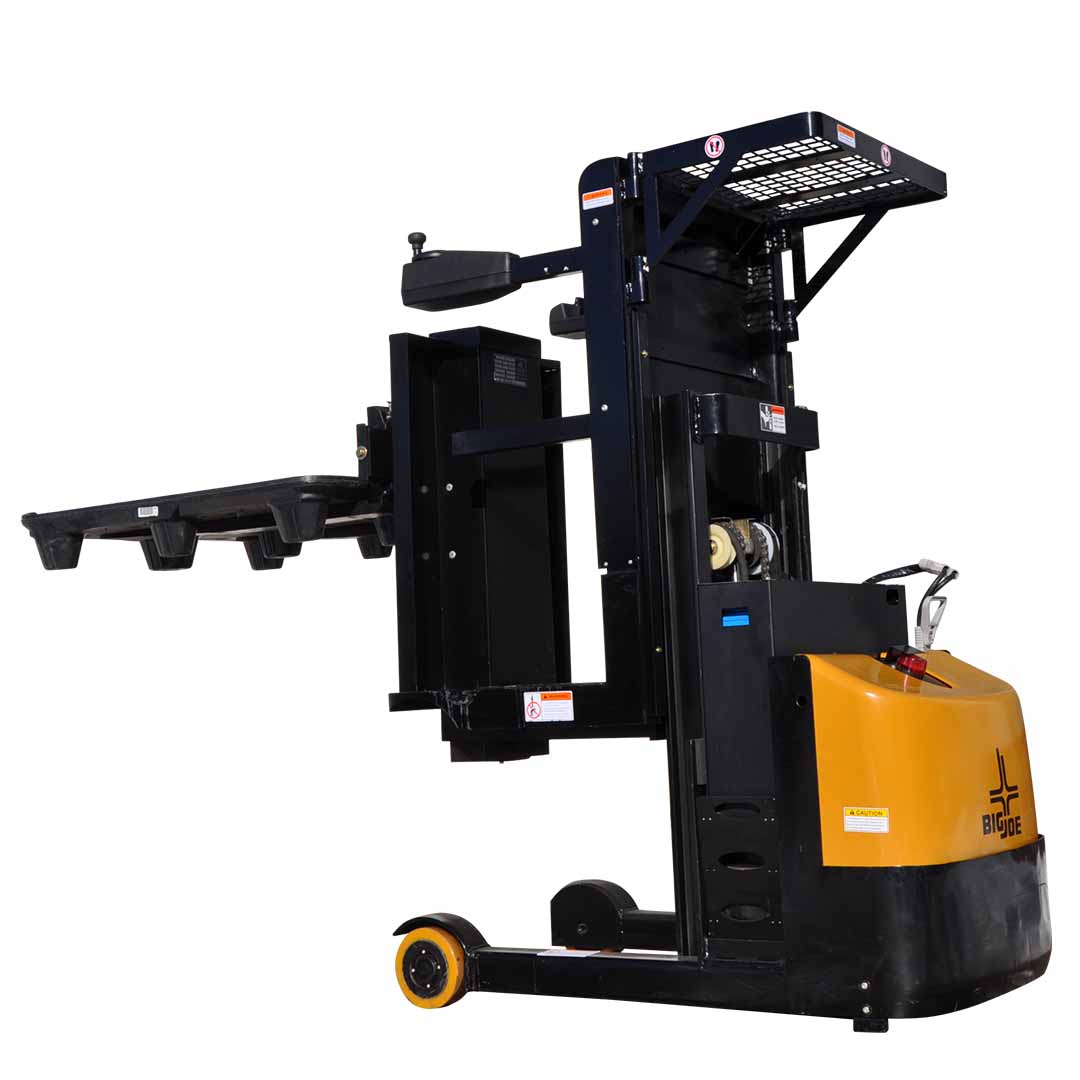

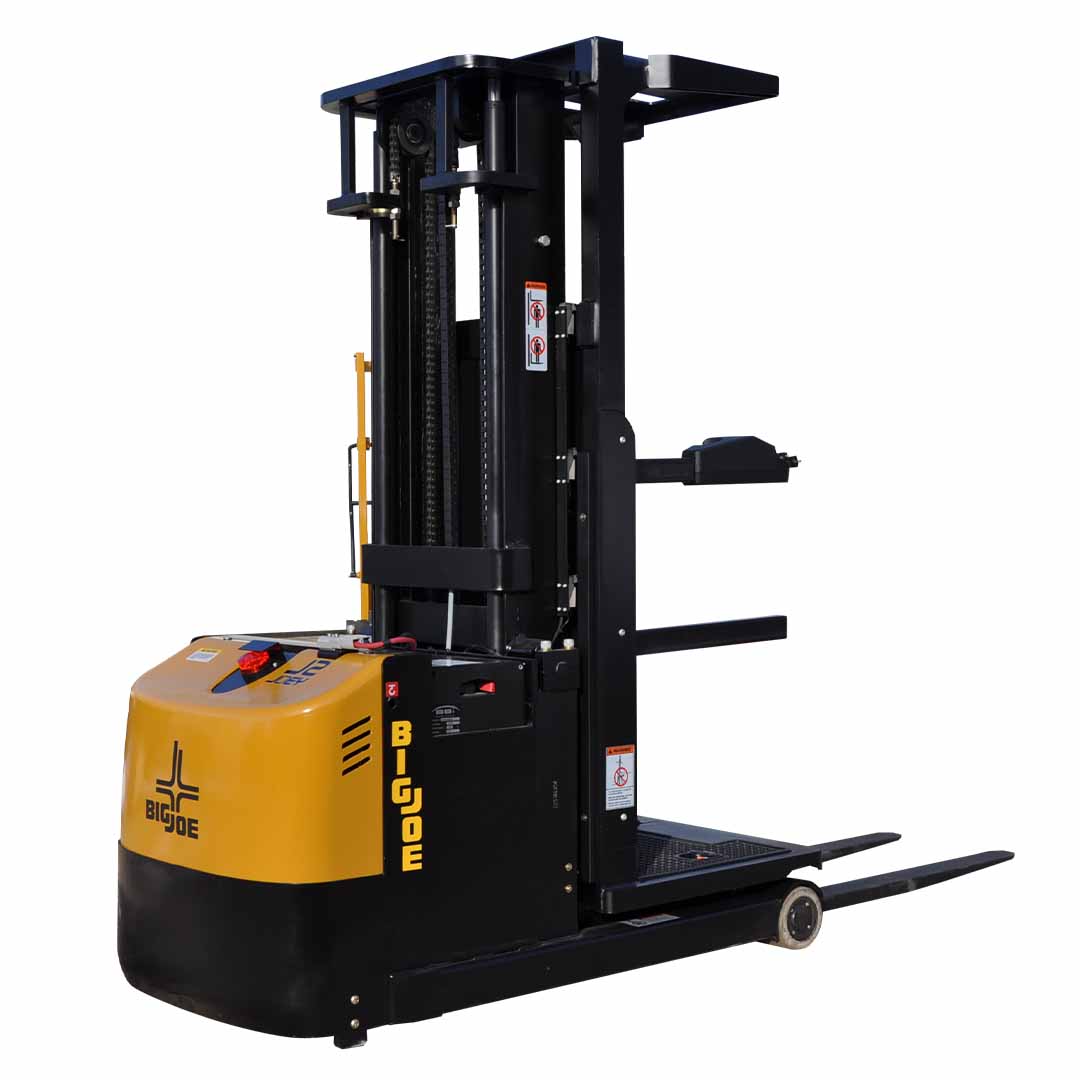

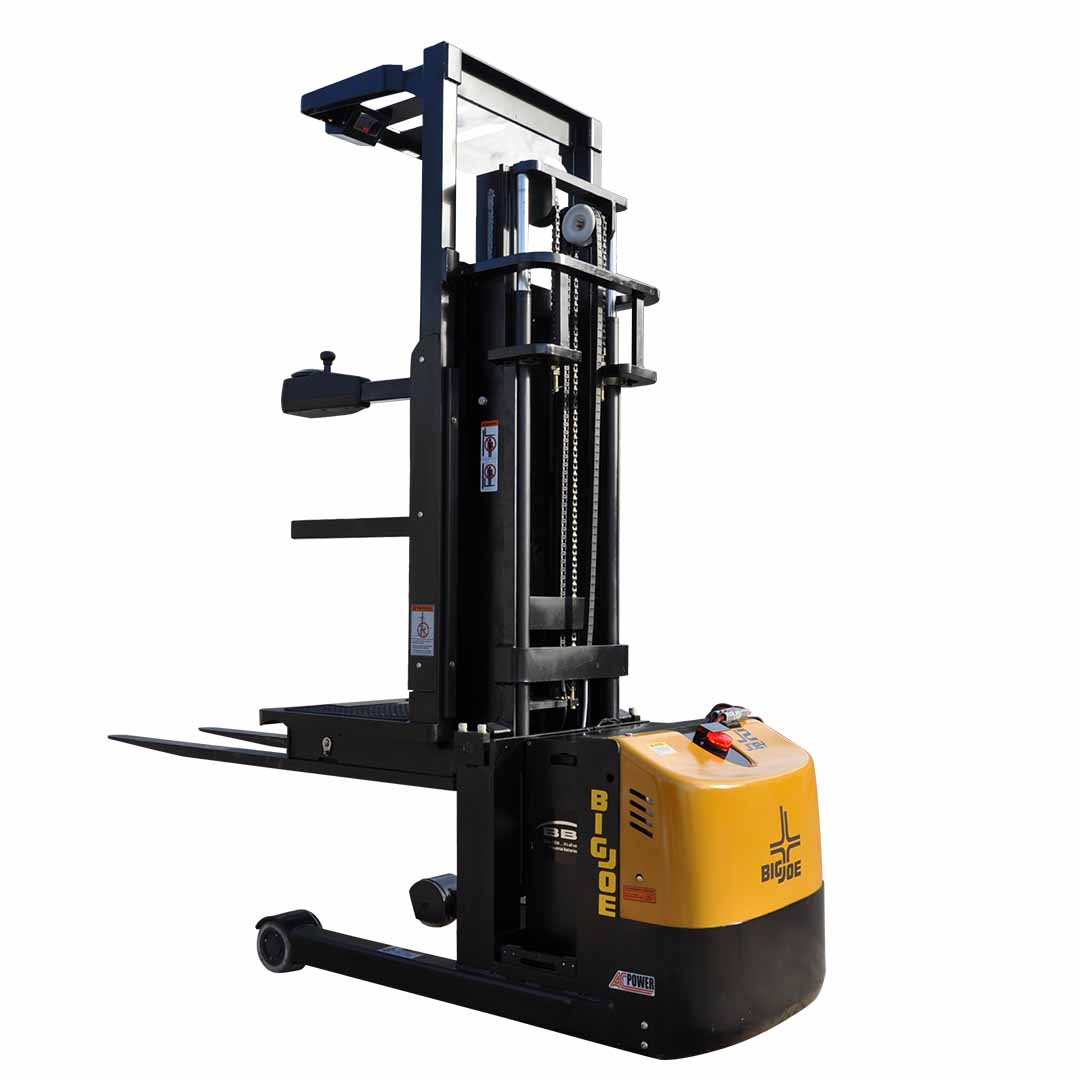

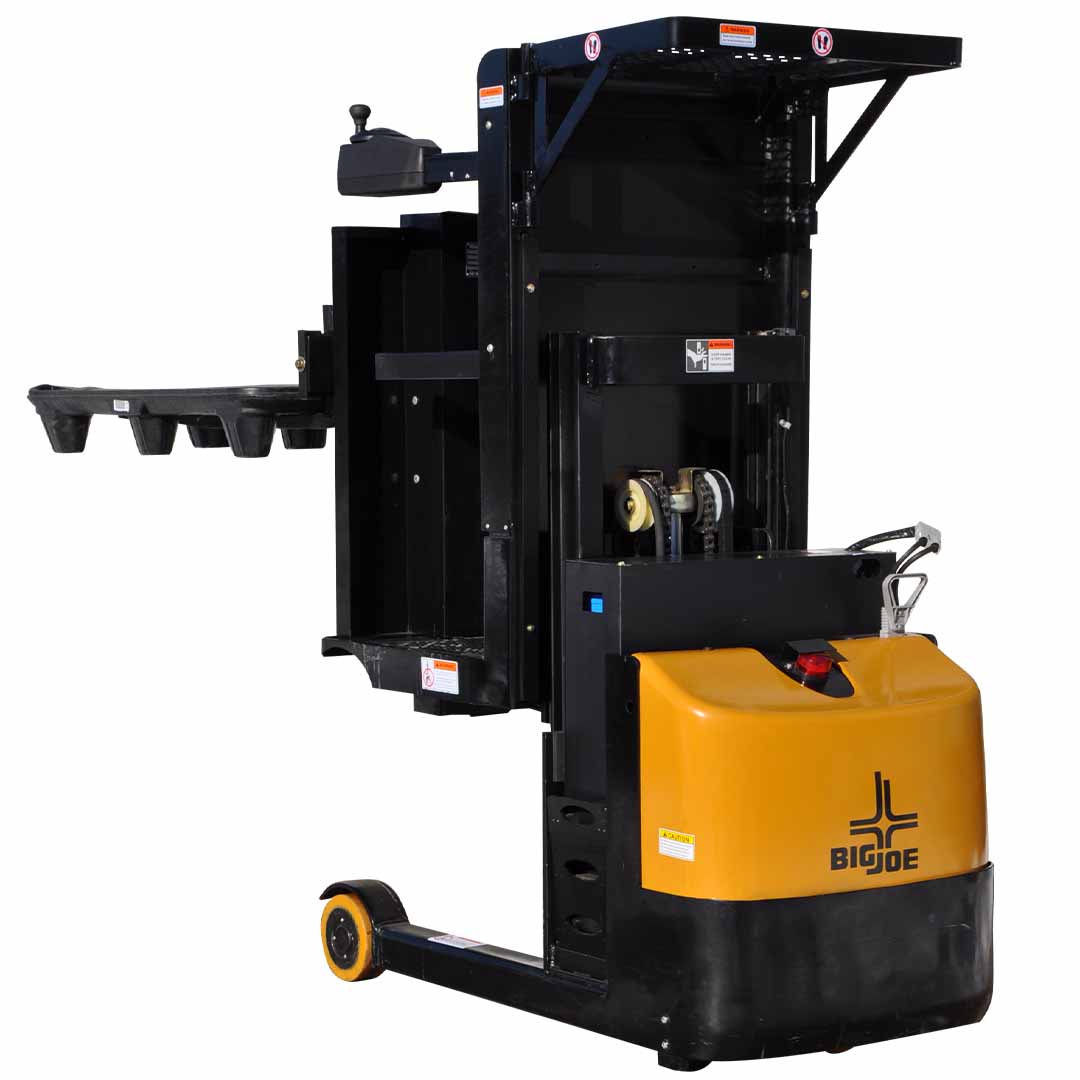

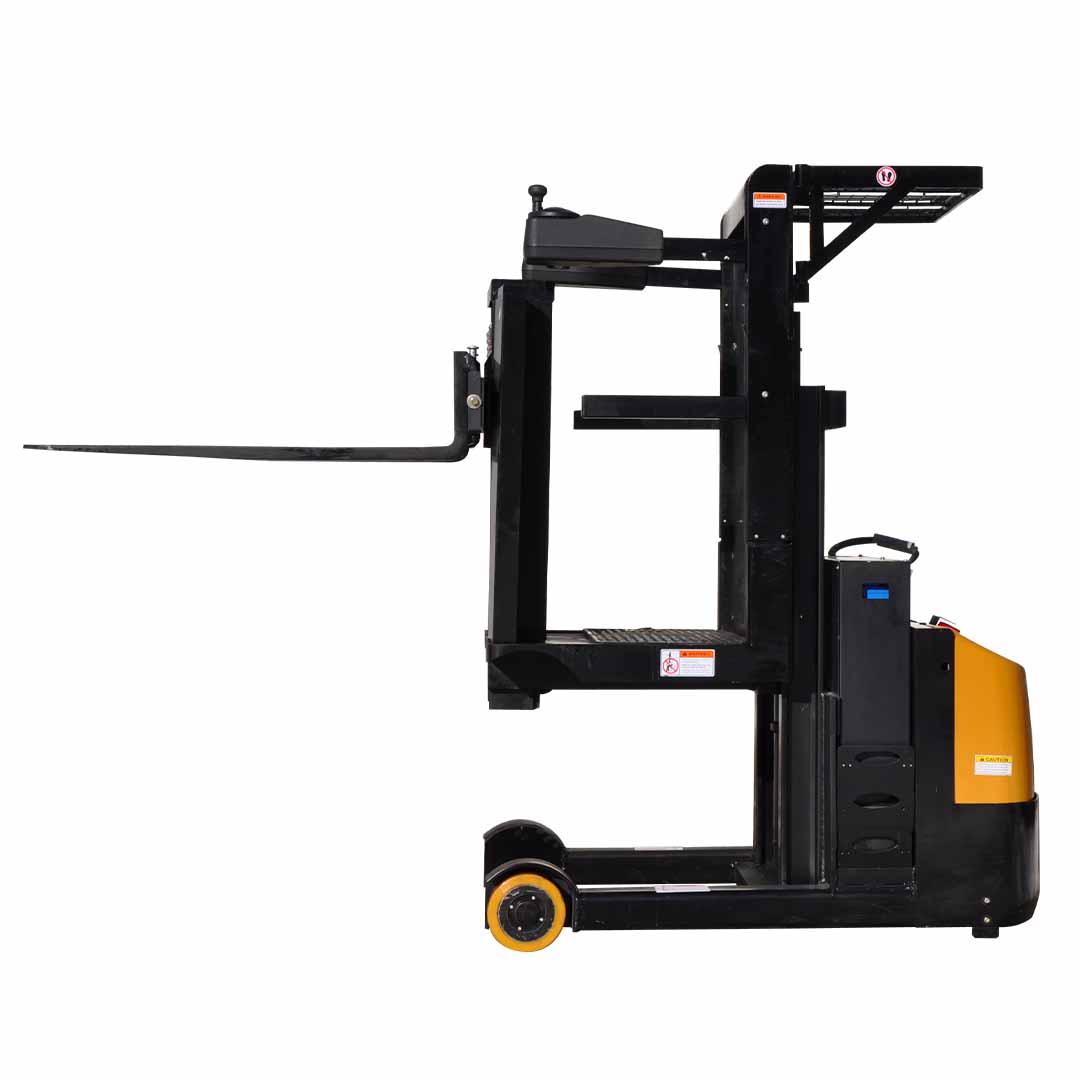

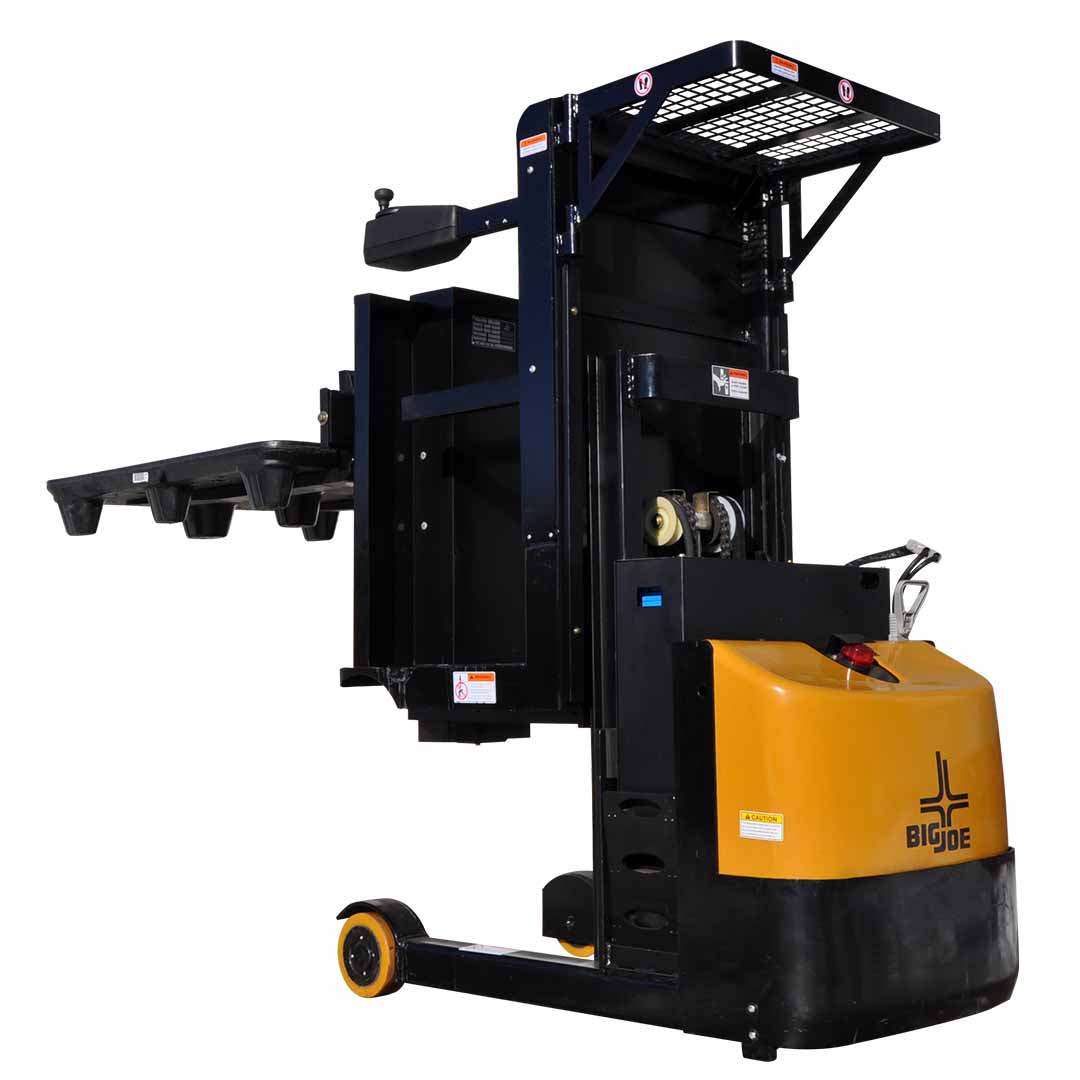

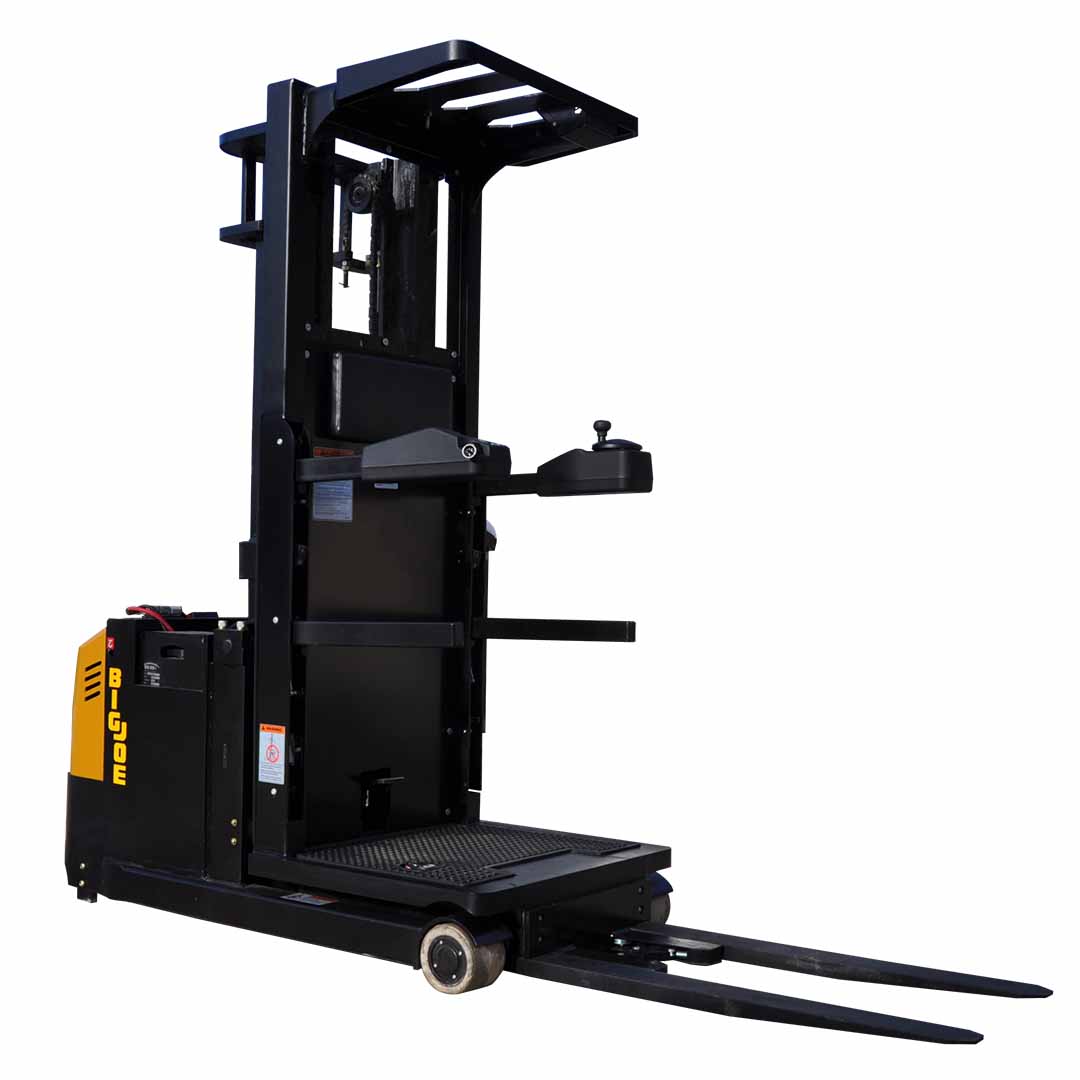

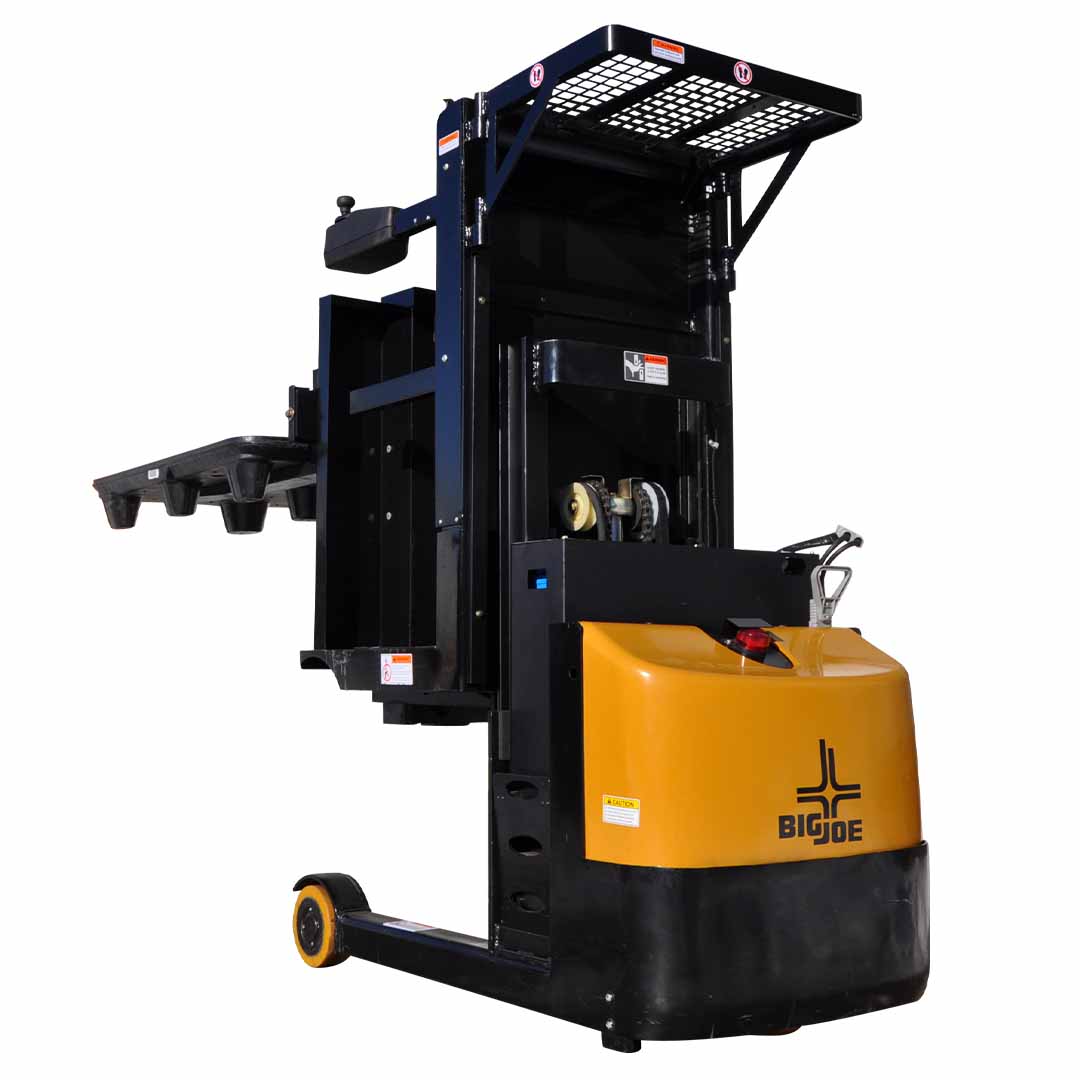

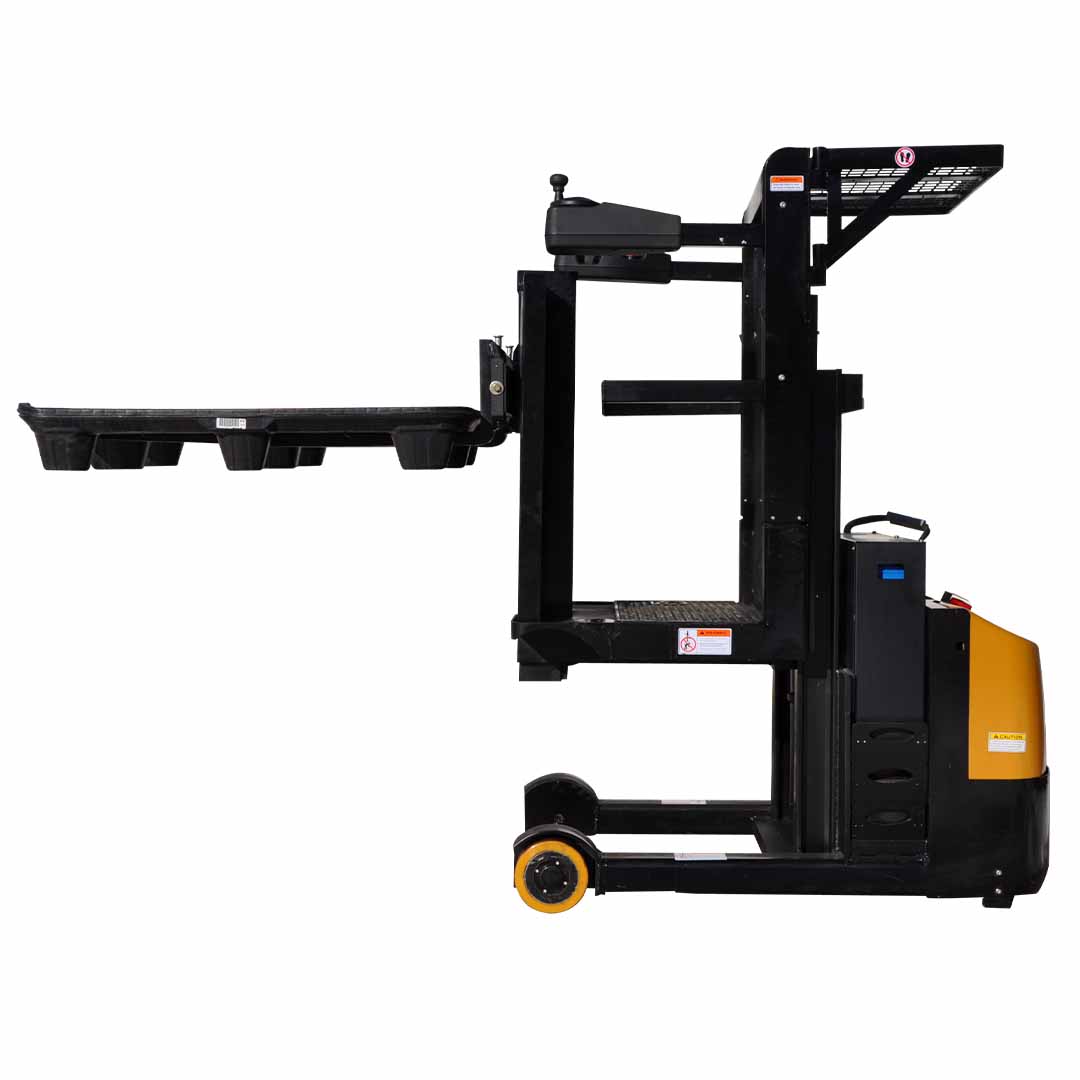

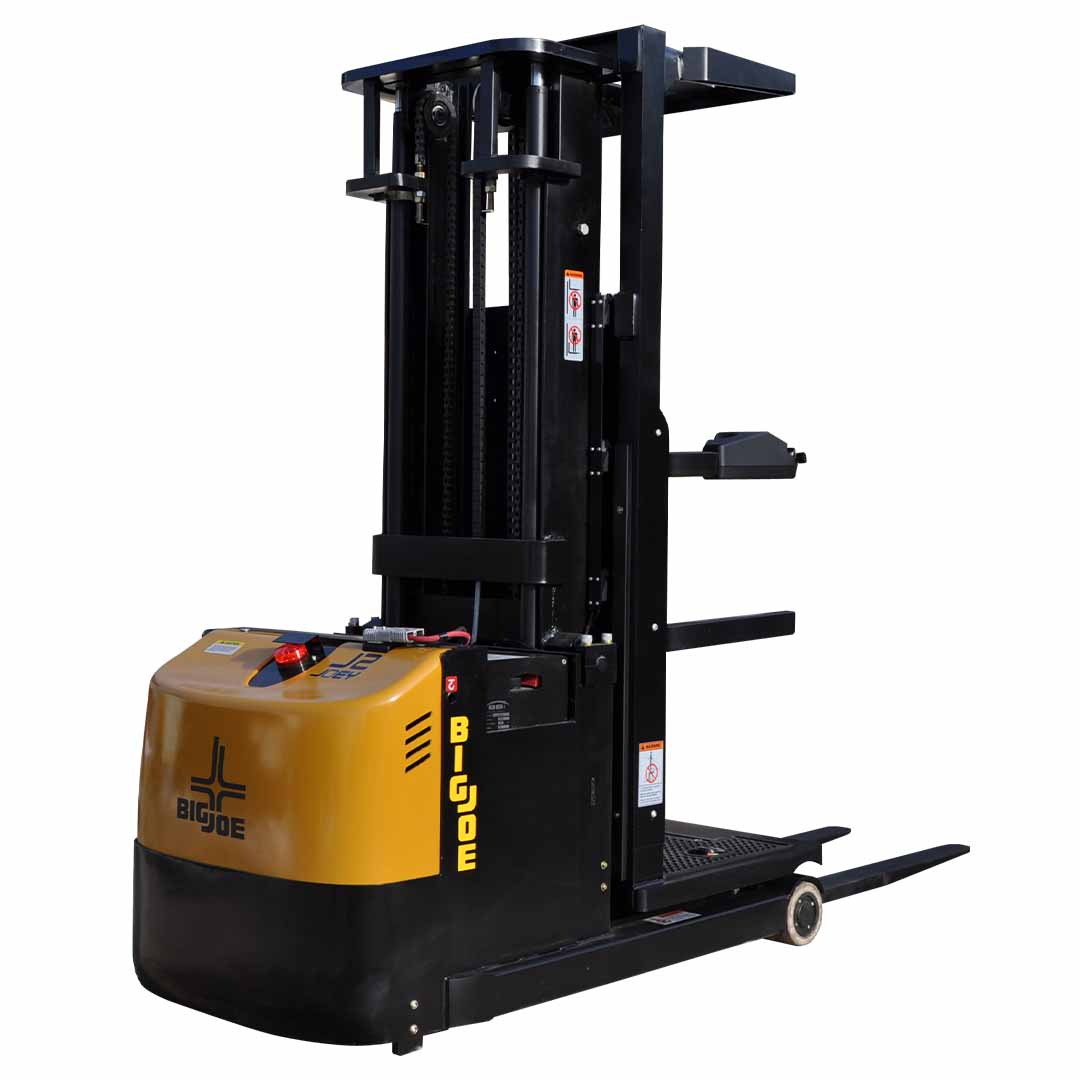

J2 Joey, 2000lb. capacity, Mid Level Order Picker, Pallet Stager

The J2 "JOEY" Low Level Order Picker combines the compact design and exceptional maneuverability of our J1 Task Support Vehicle with attributes of a counterbalanced forklift. The result is a versatile machine that can be used for low level order picking, and staging of pallets.

Utilizing many of the same reliable components as the J1, the J2 low level order picker can elevate an operator 48" and features a mini mast that can lift up to 1,500 lb loads to a 72" elevation. The J2 Low Level Order Picker offers travel speeds up to 4.5mph.

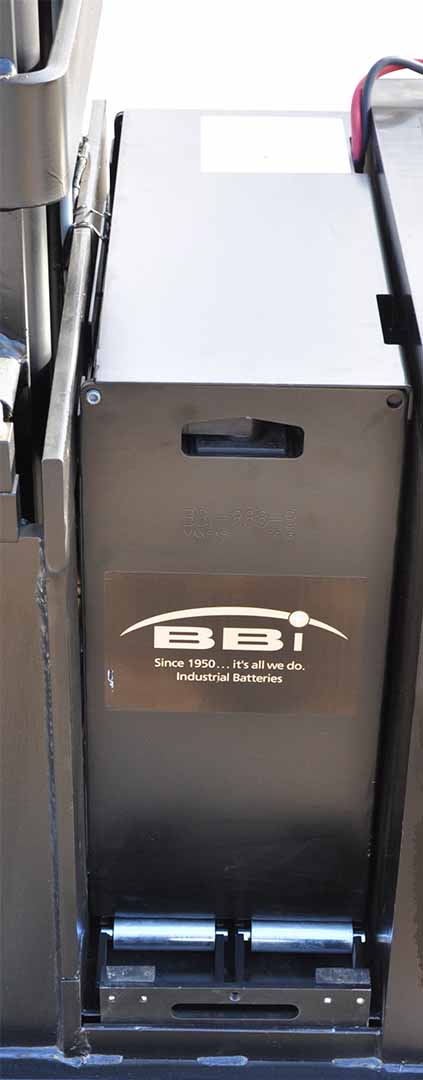

J2 Low Level Order Picker can be used to effectively order pick from low level locations and improve access to pick faces close to the floor. Travel is provided by a high efficiency AC drive motor on each unit that can be programmed through the onboard LCD dash. Power comes from a 340AH industrial battery or 224AH AGM maintenance free battery pack that is an available option.

J2-72 1,500lb. @ 24" load center on front mini mast to 72"

Features

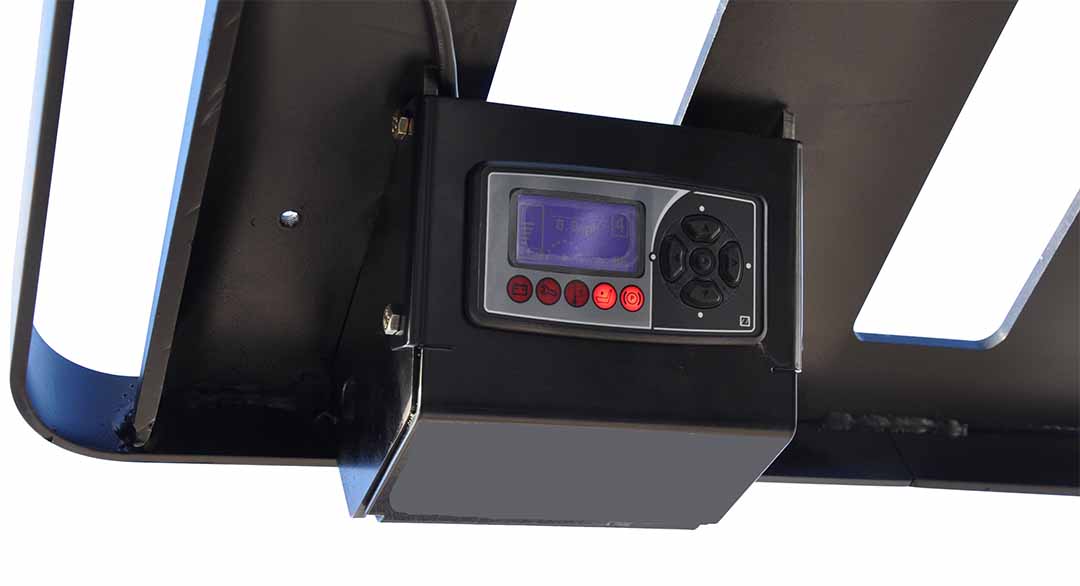

LCD dash display with selectable travel settings and diagnostics

Electronic power steering with infinitely variable speed control

Finger tip controls integrated into retractable vehicle guardrails

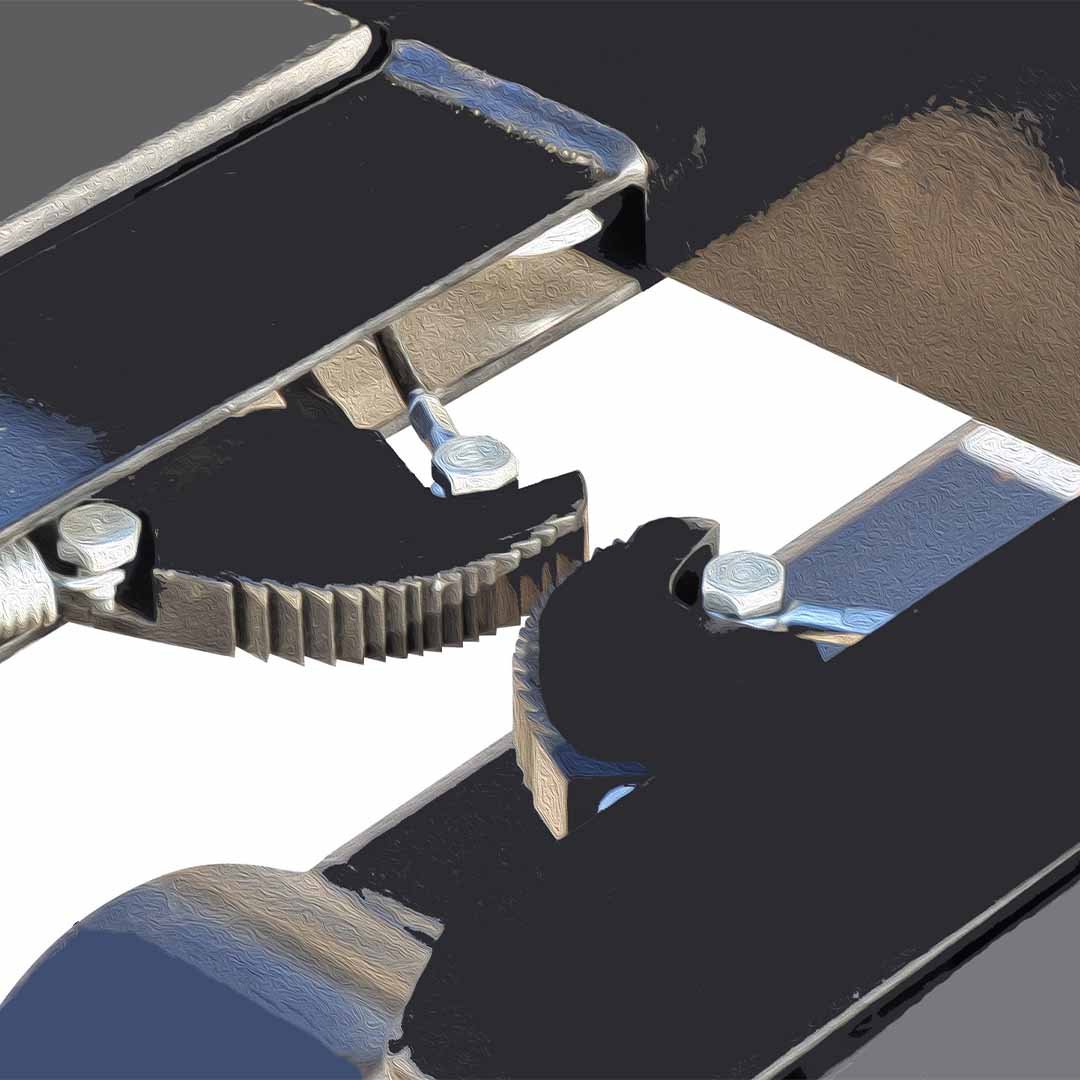

180 degree articulating driveline with compact minimum turn radius

Optional forward controls eliminate the side guardrails

Specifications
Vehicle Type

Low Level Order Pickers

Maximum Capacity

1,500

Load Center

24"

Power

24 volt AC electric with Zapi transistor controly

Charger

External of Integral 120v smart charger

Max Fork Height

72"

Turning Radius

59.8"

Vehicle Dimensions

Download Brochure

Travel Speed

Download Brochure

Product Video
