Order Pickers // Joey E-Step

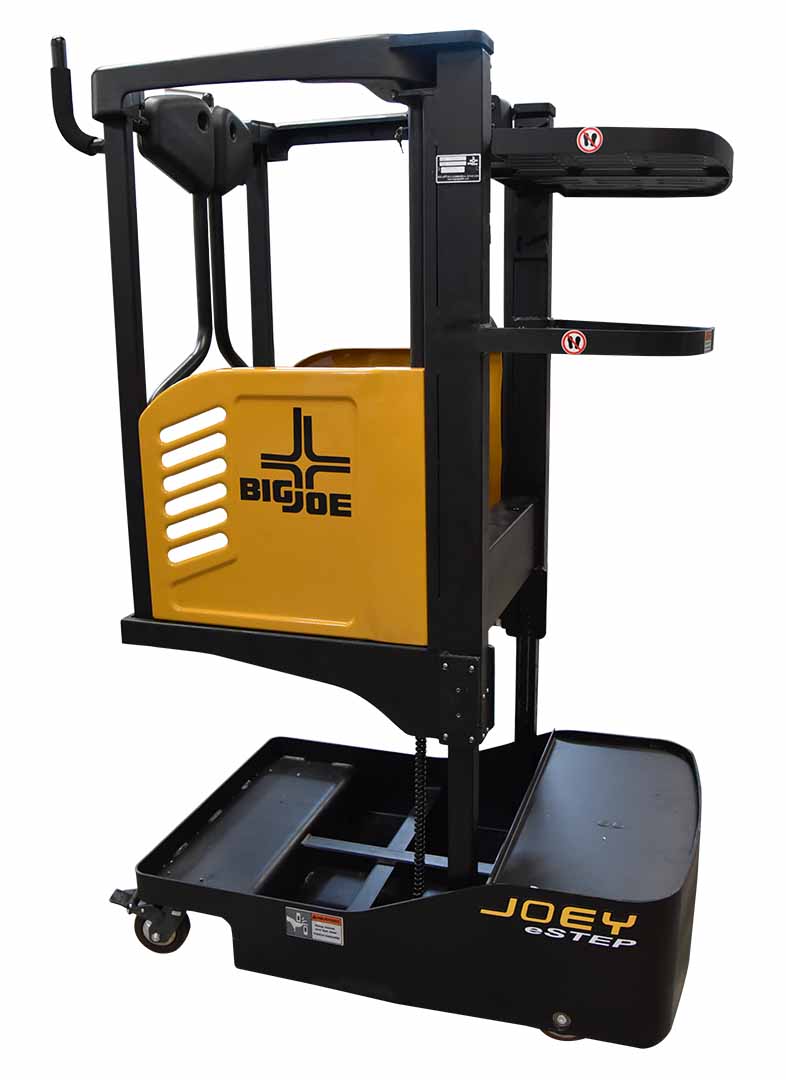

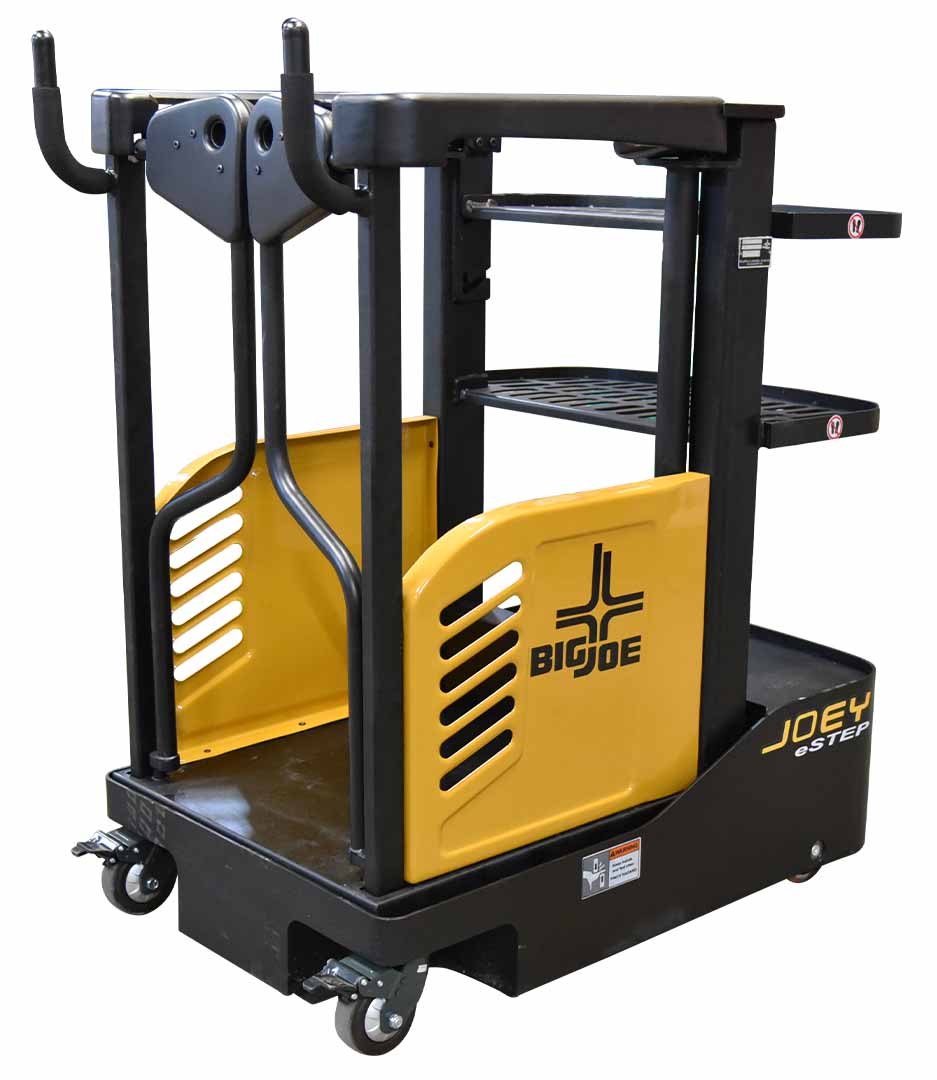

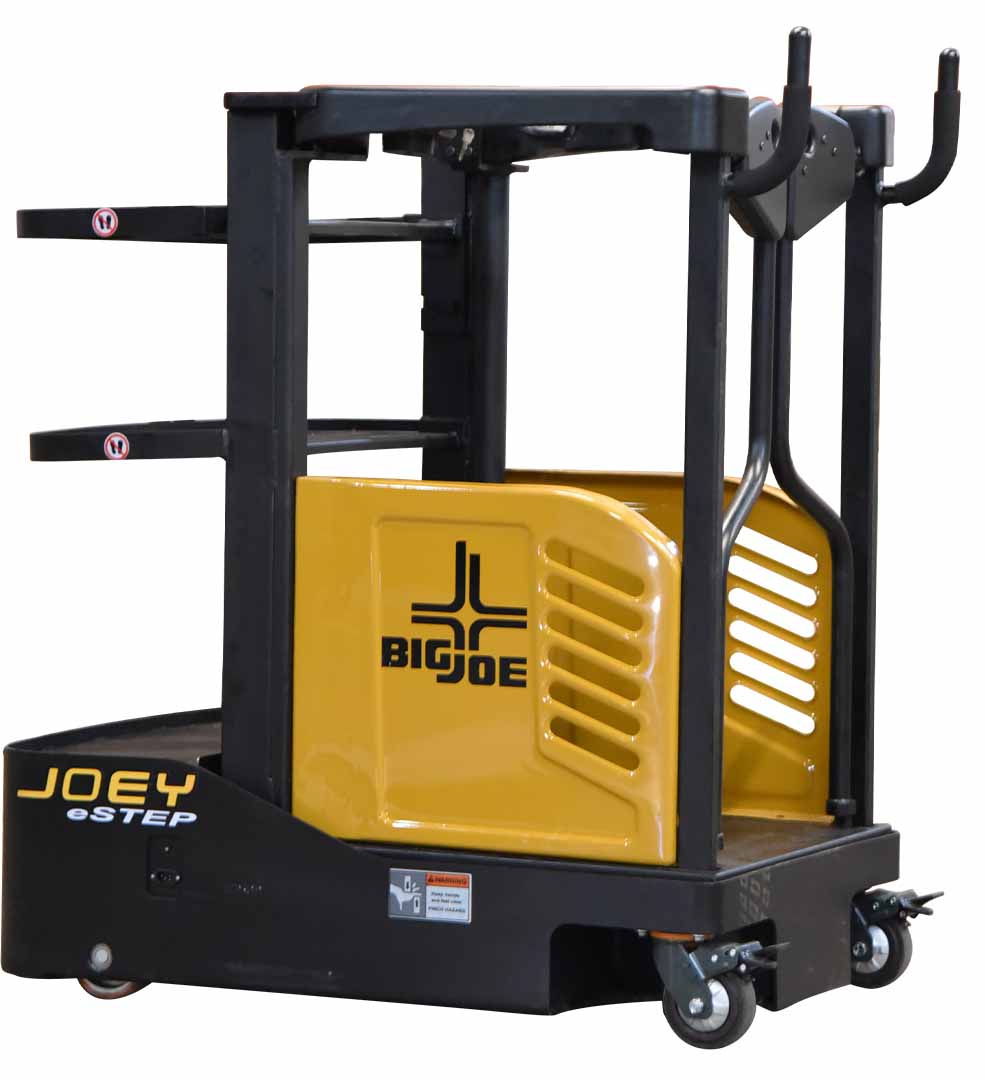

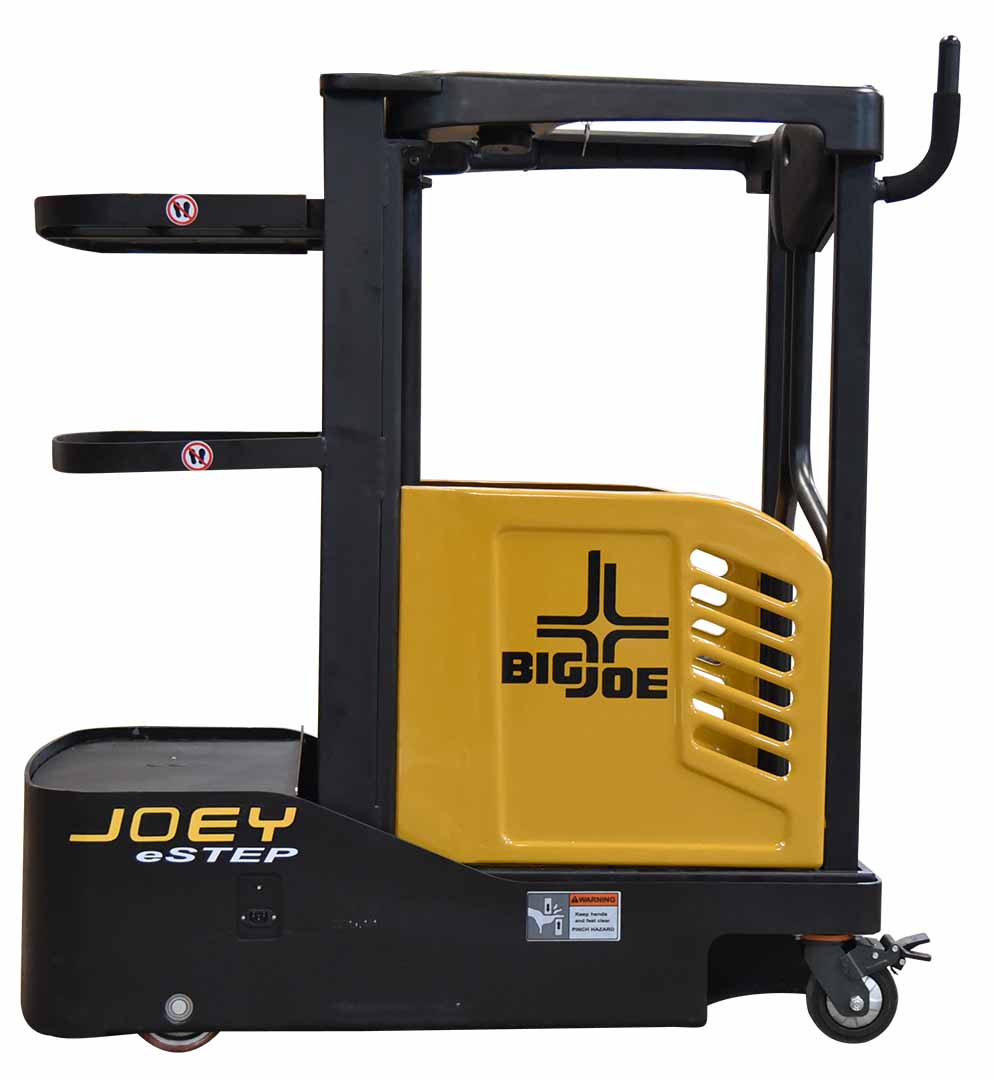

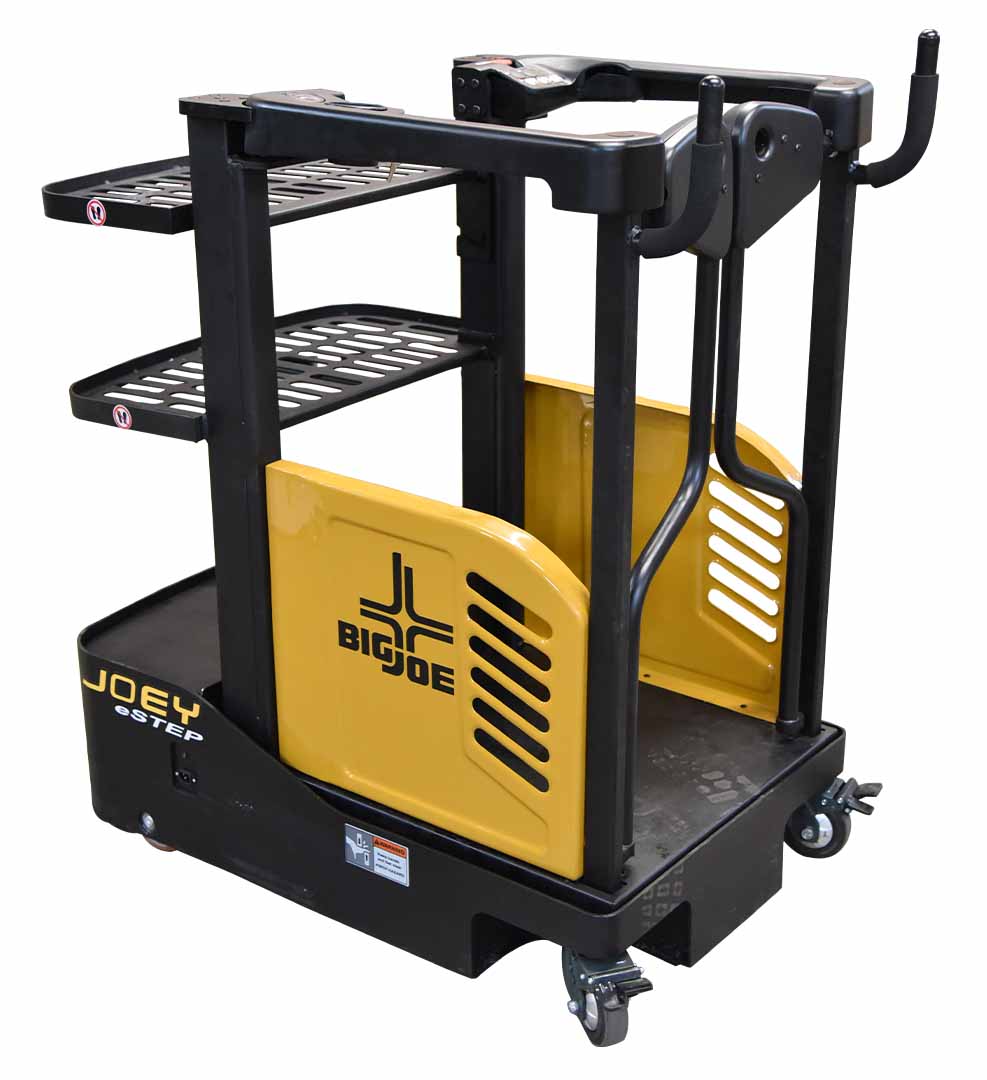

Joey E-Step, 600 lb., Semi-Electric Access Vehicle

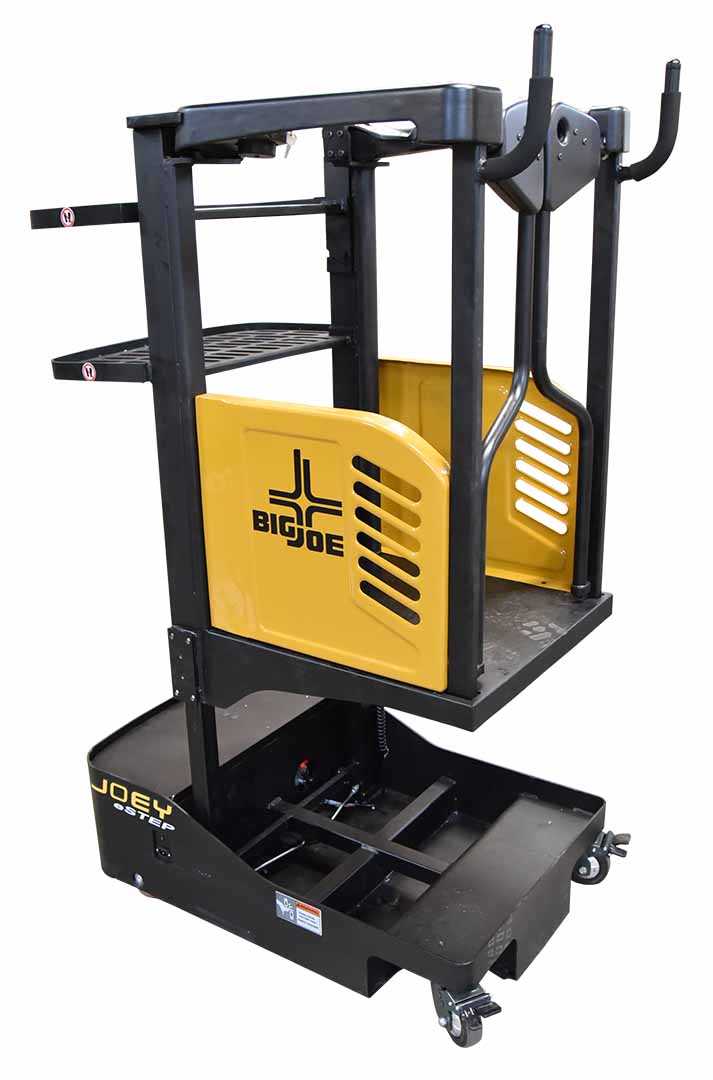

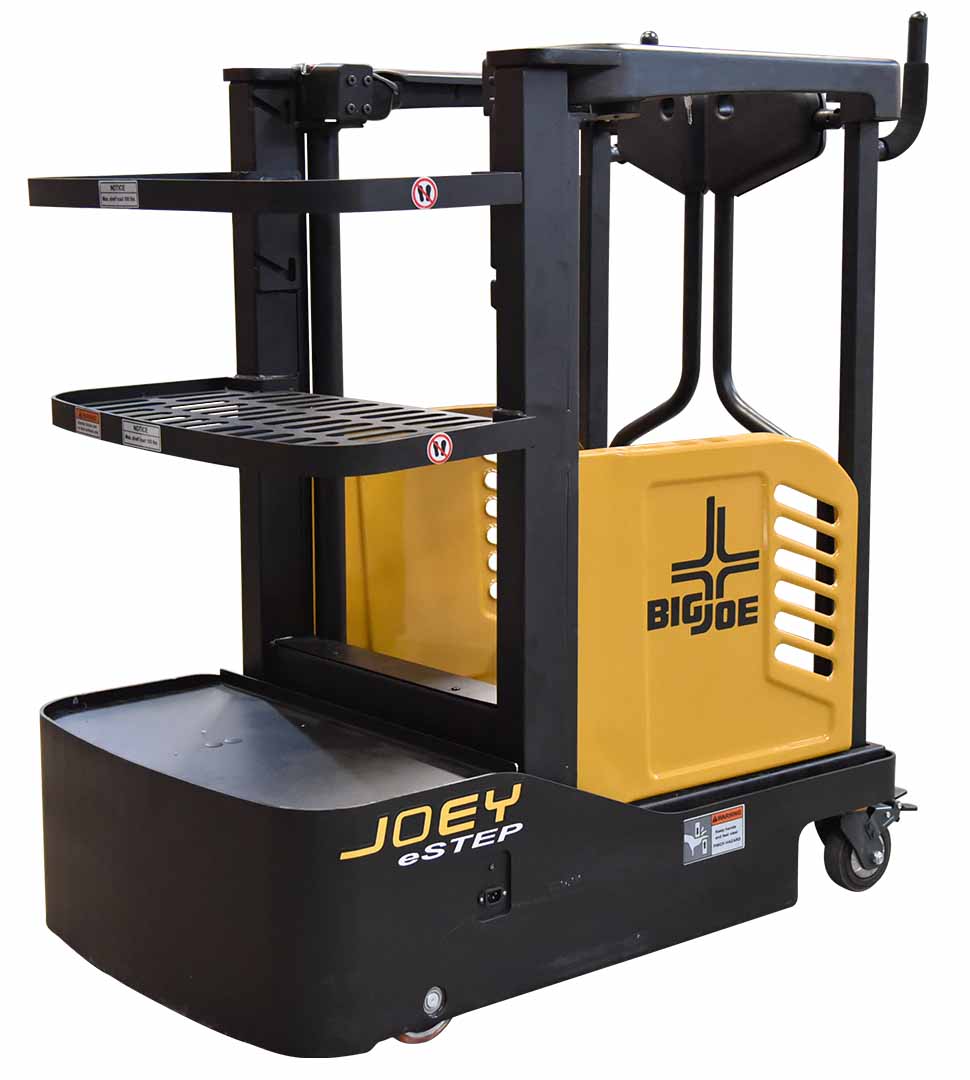

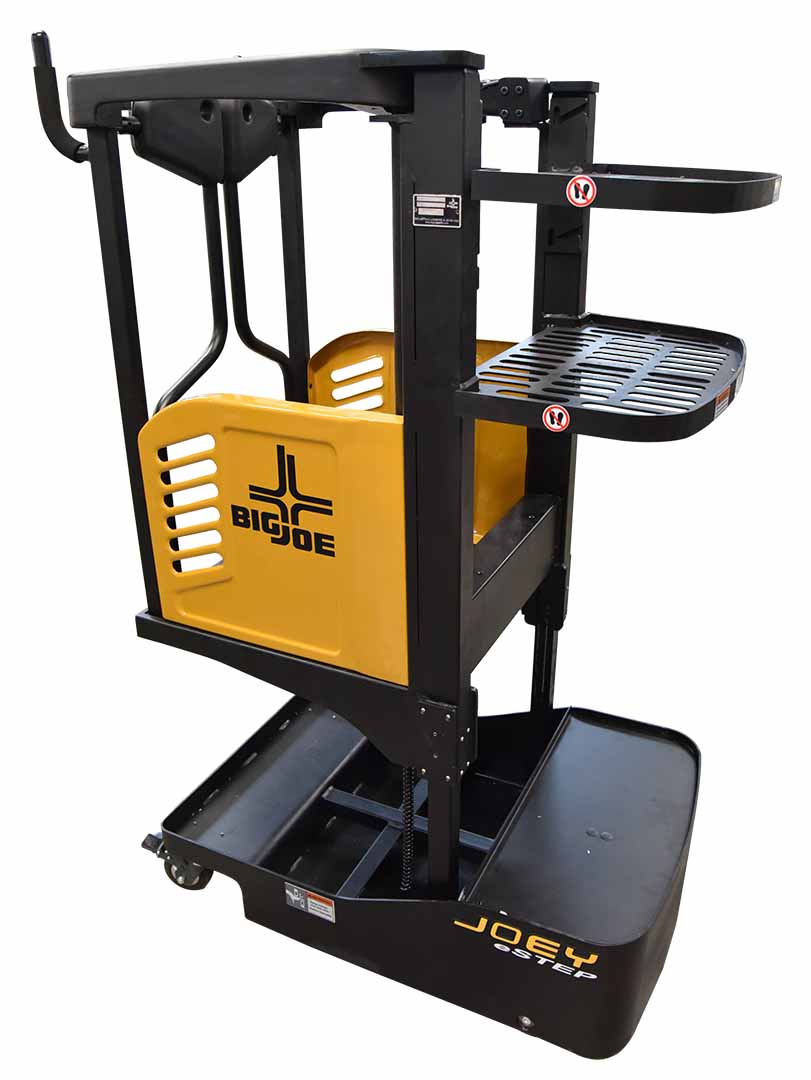

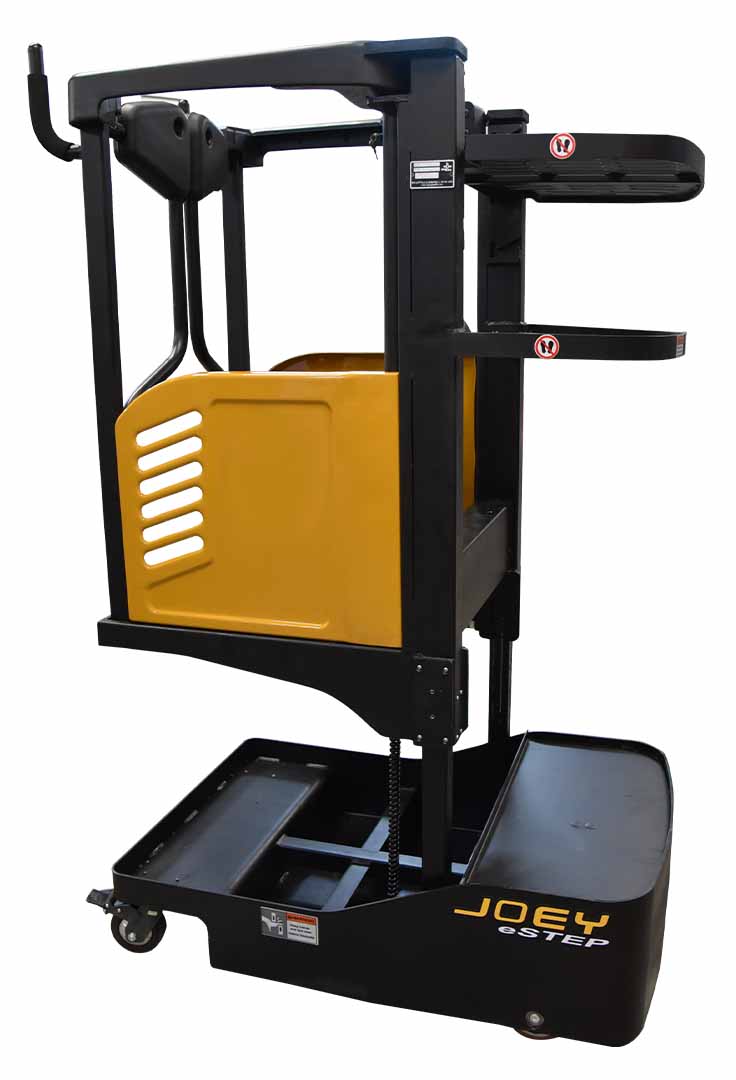

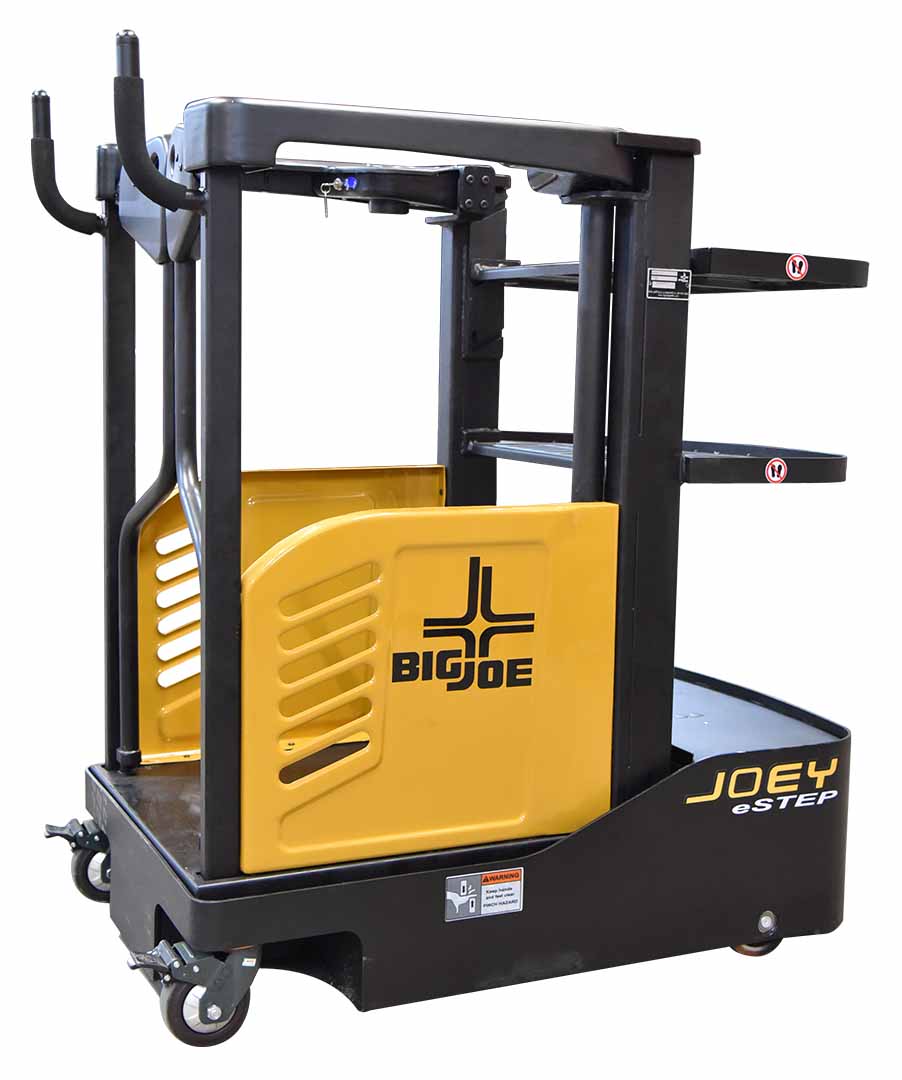

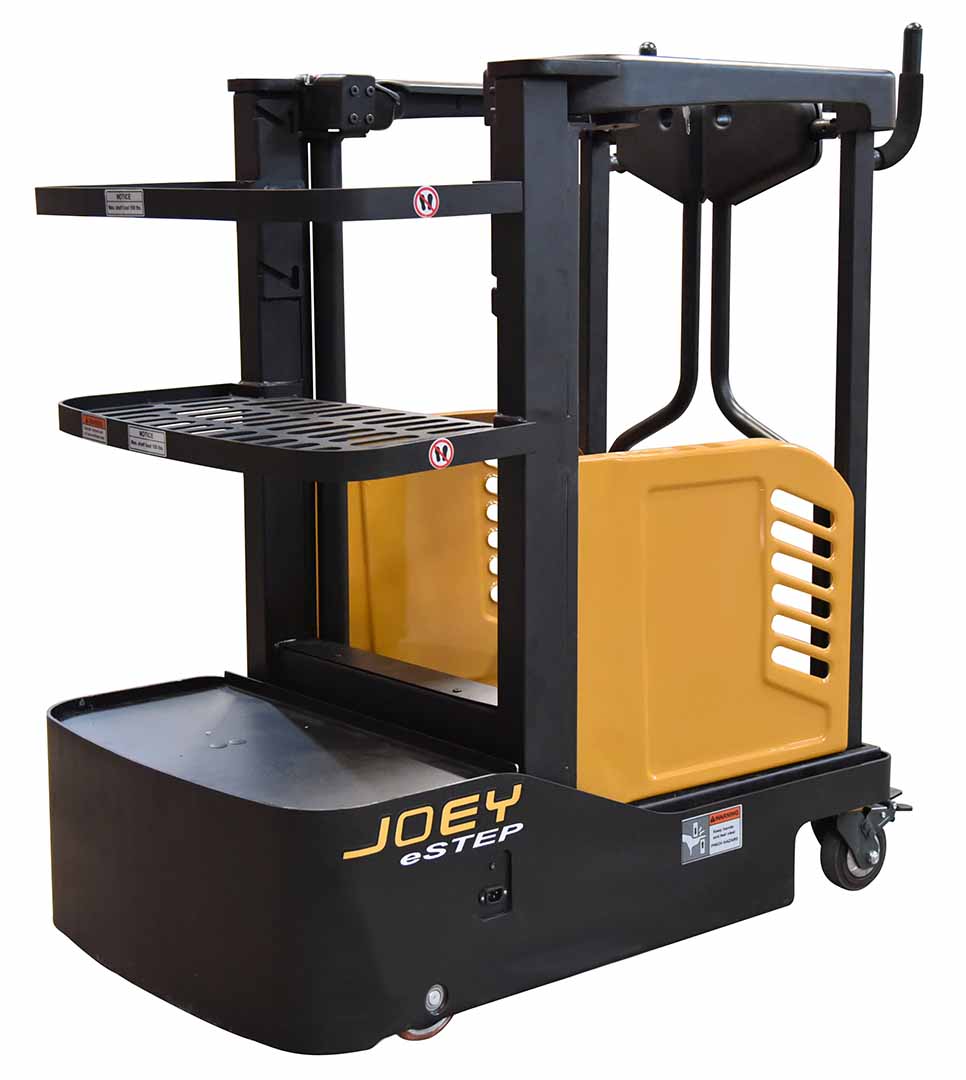

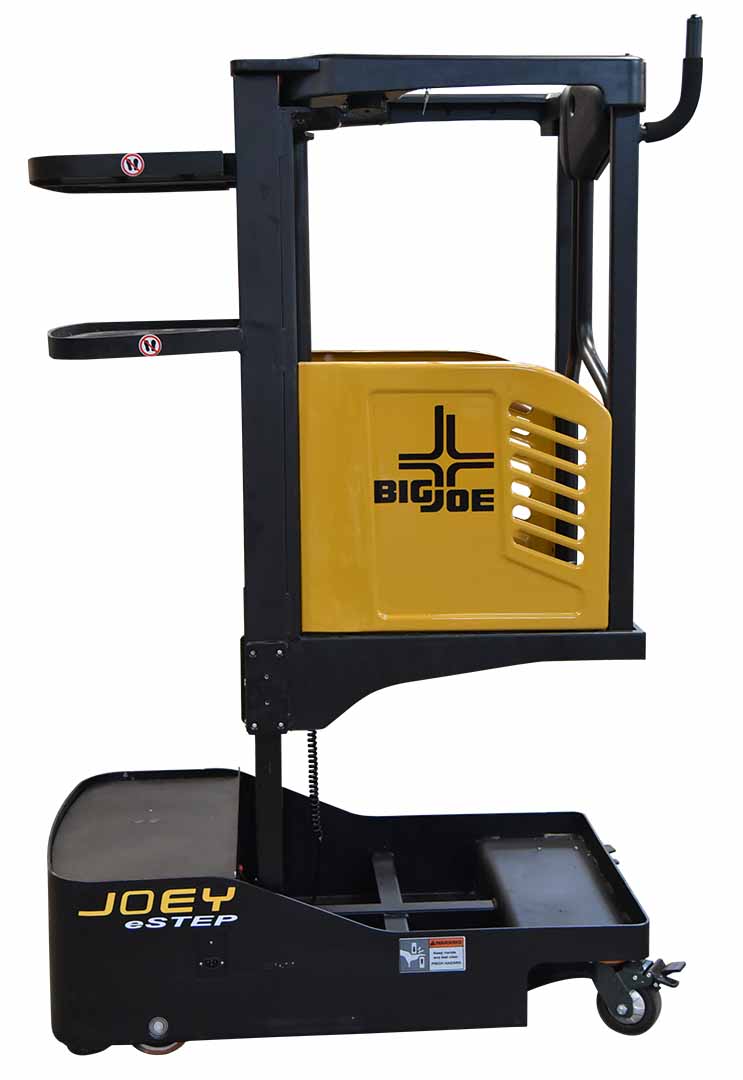

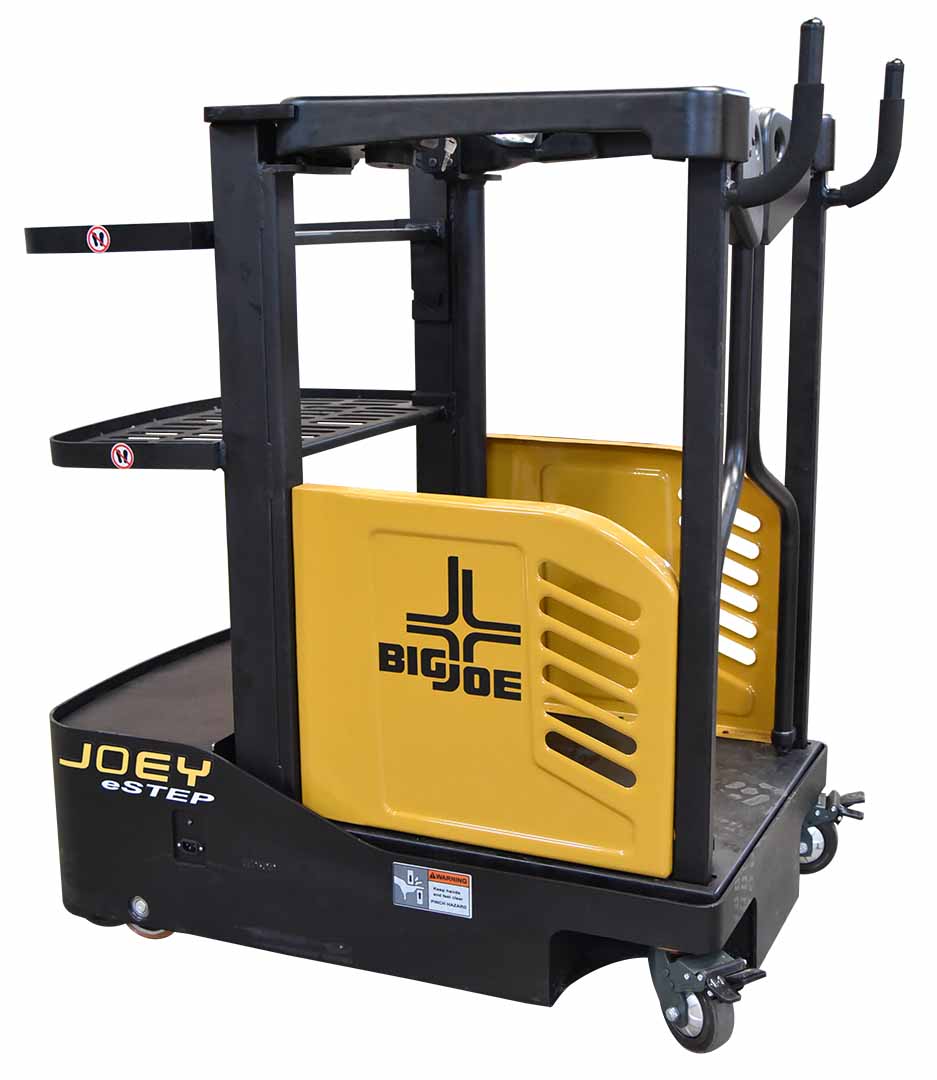

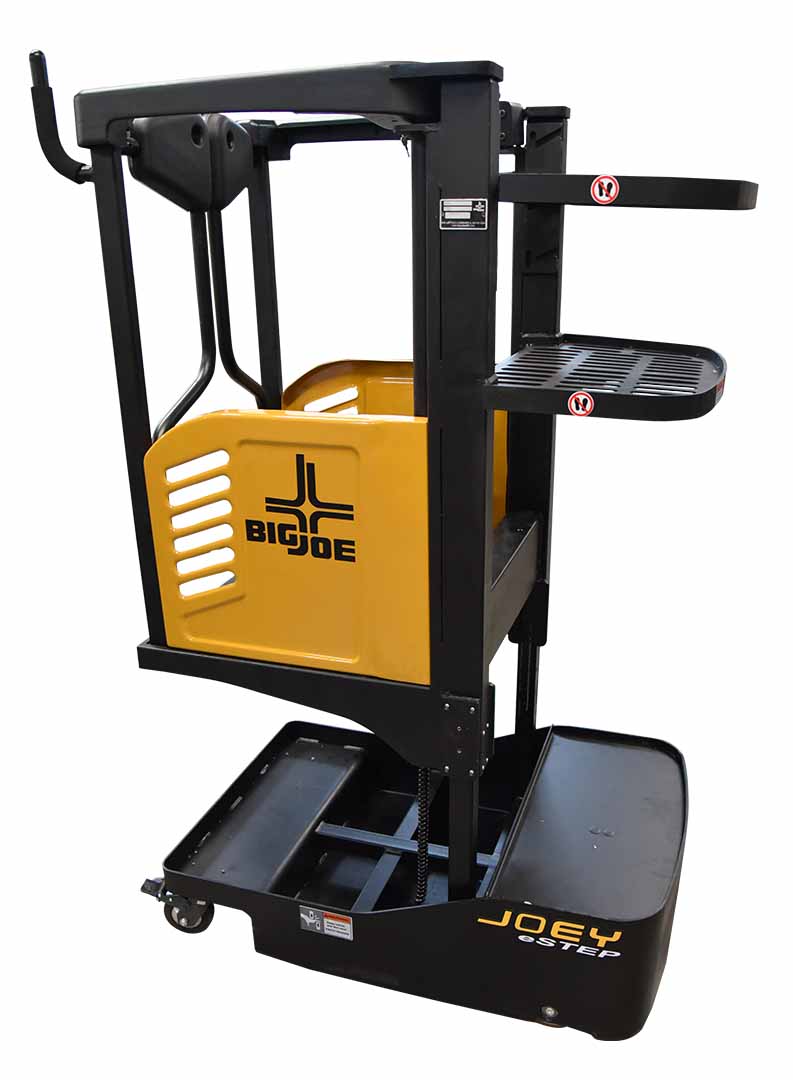

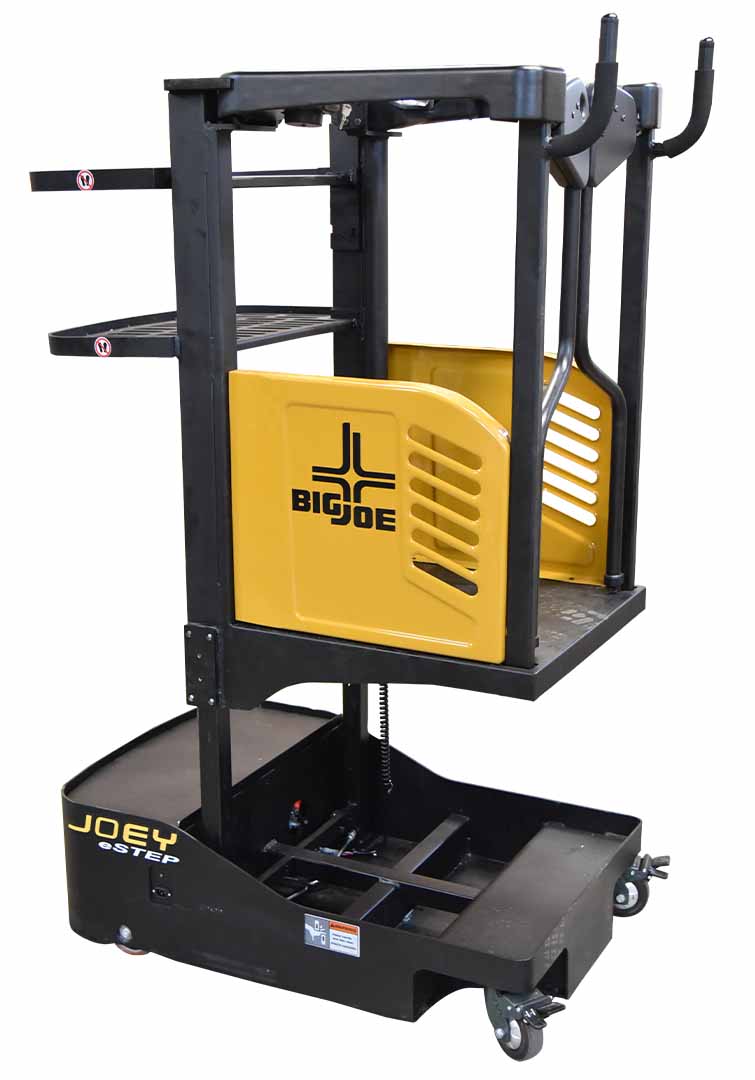

The Joey eStep Semi- Electric Access Vehicle is a manually propelled unit with powered lift that provides companies with a safe alternative to low level ladders in the workplace. The DC lift motor and twin post hydraulic elevating system on the eStep are capable of lifting an operator up to 42” while remaining in a fully enclosed compartment.

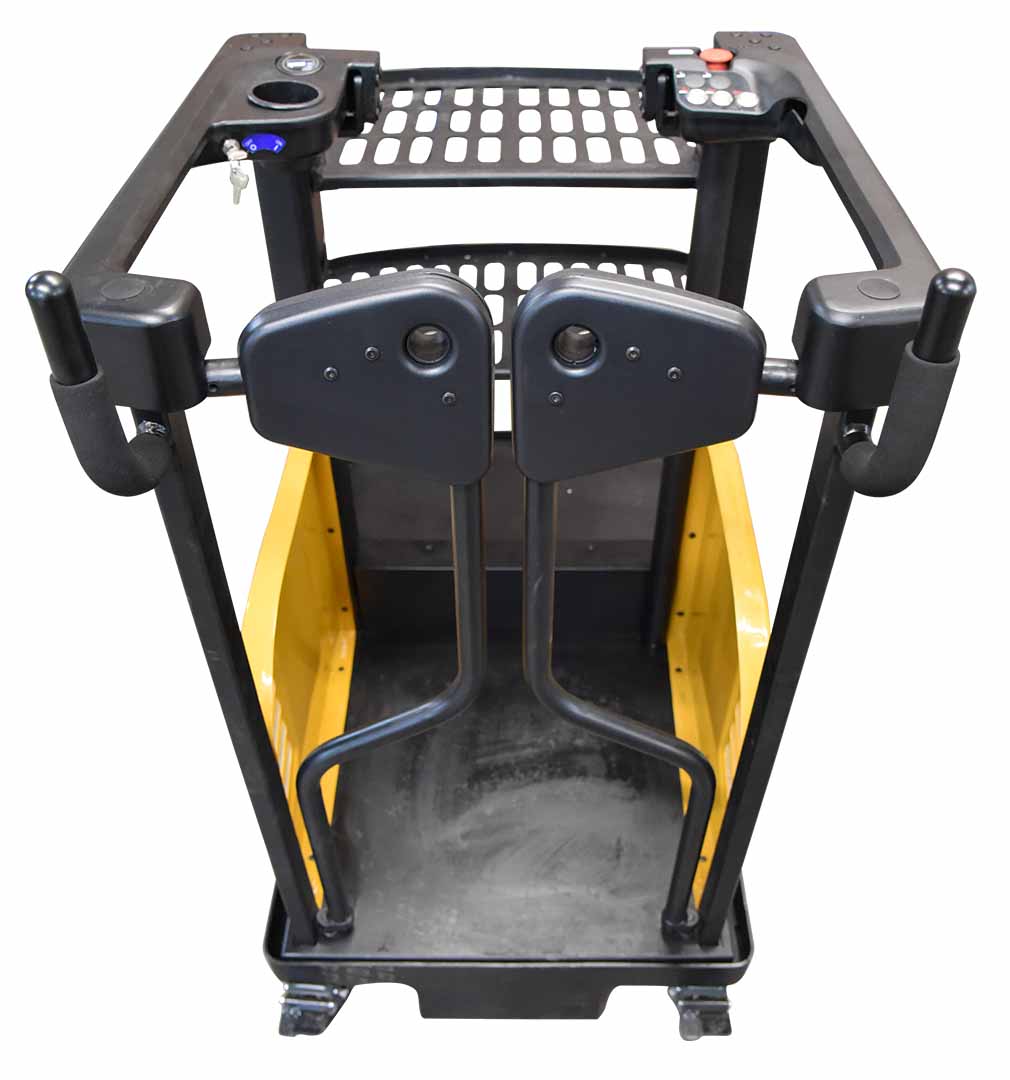

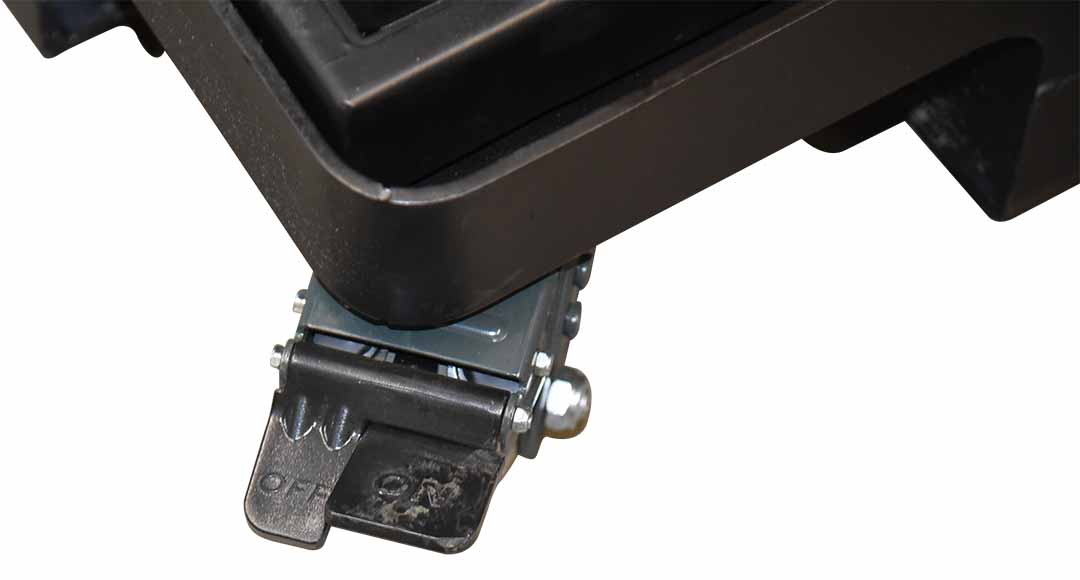

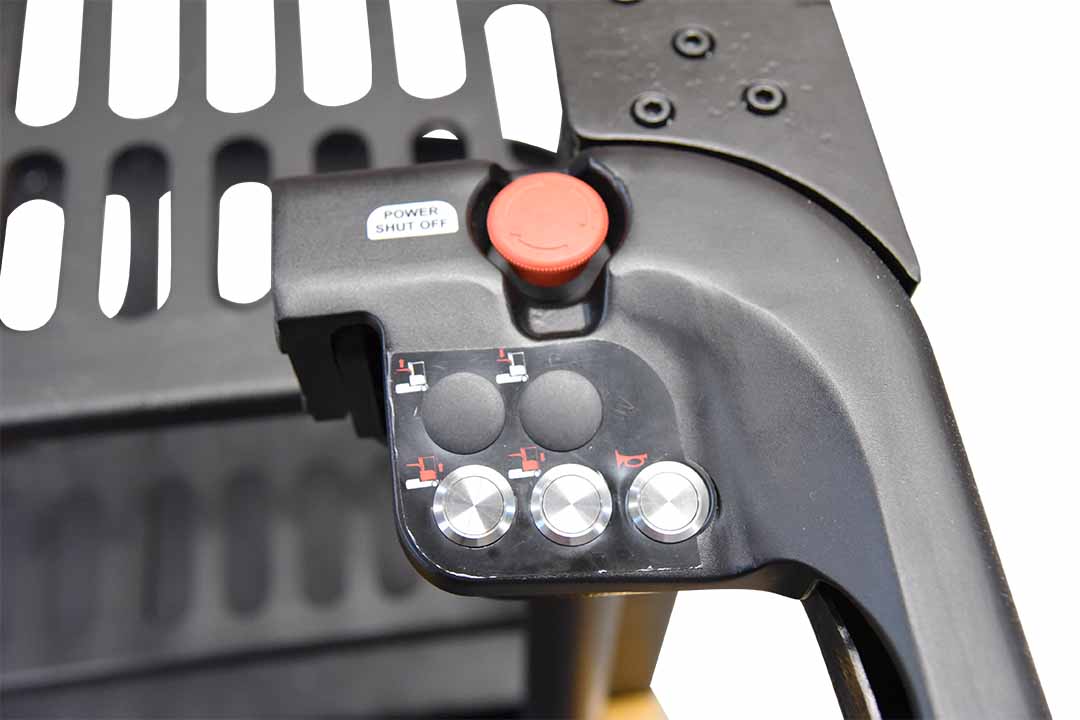

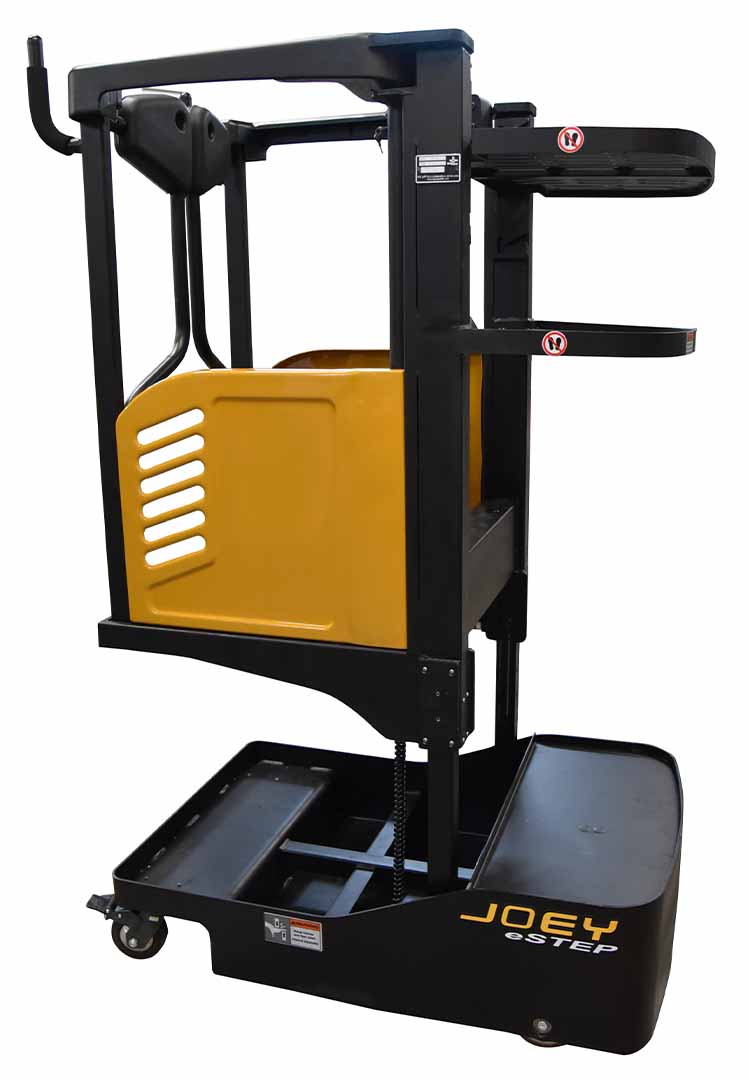

When elevating the operator compartment on the eStep, an automatic floor lock deploys improving stability. Locking rear swivel casters are additionally provided for elevated use on smooth surfaces. Simple and intuitive controls include fingertip lift/lower buttons and an emergency power disconnect.

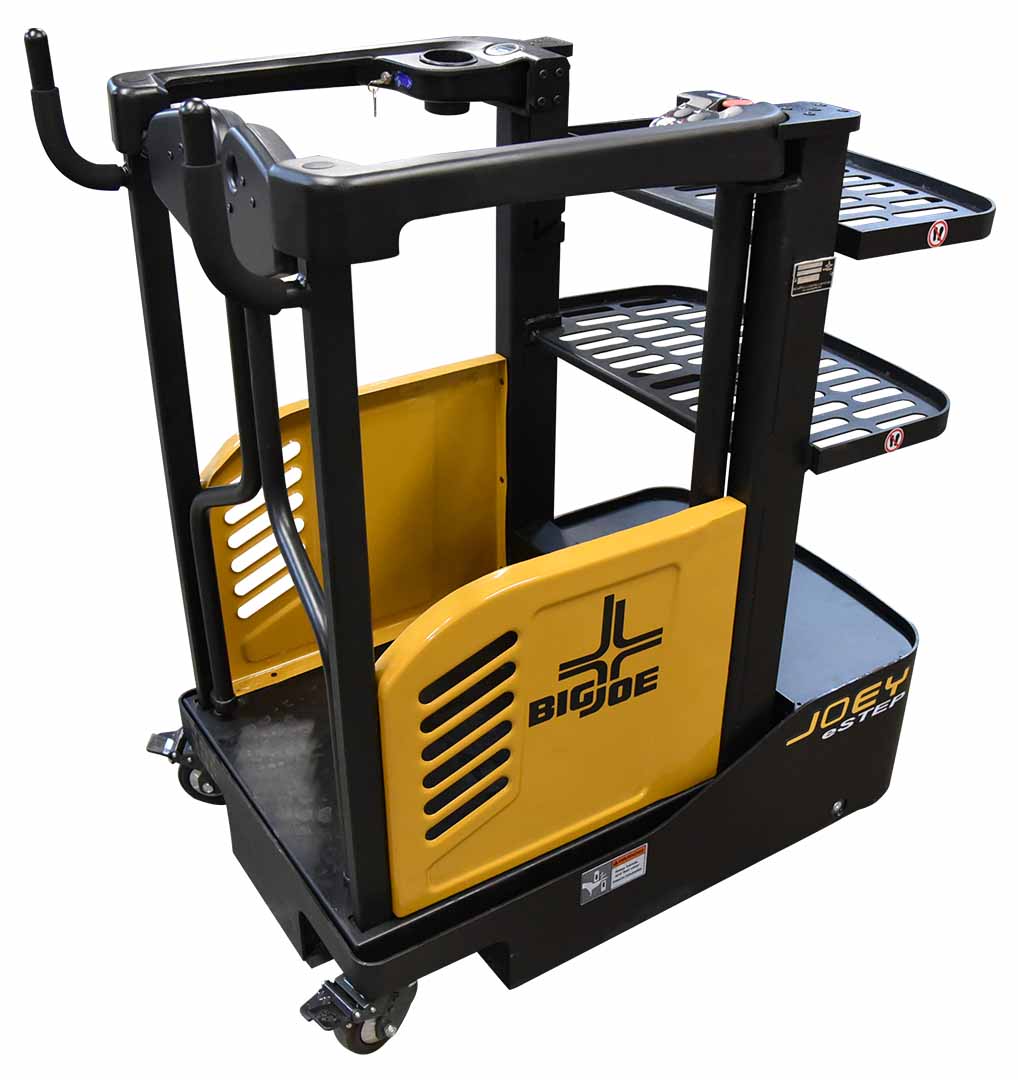

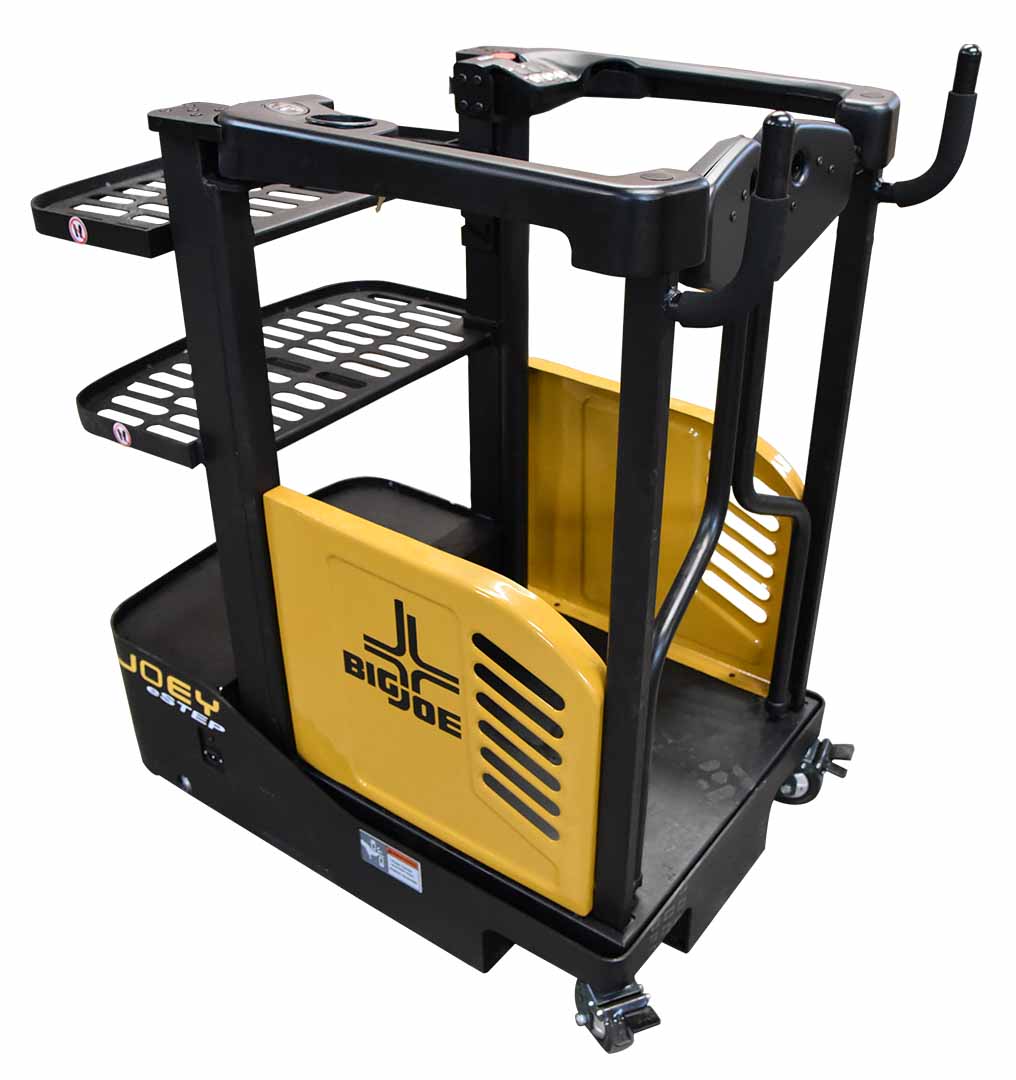

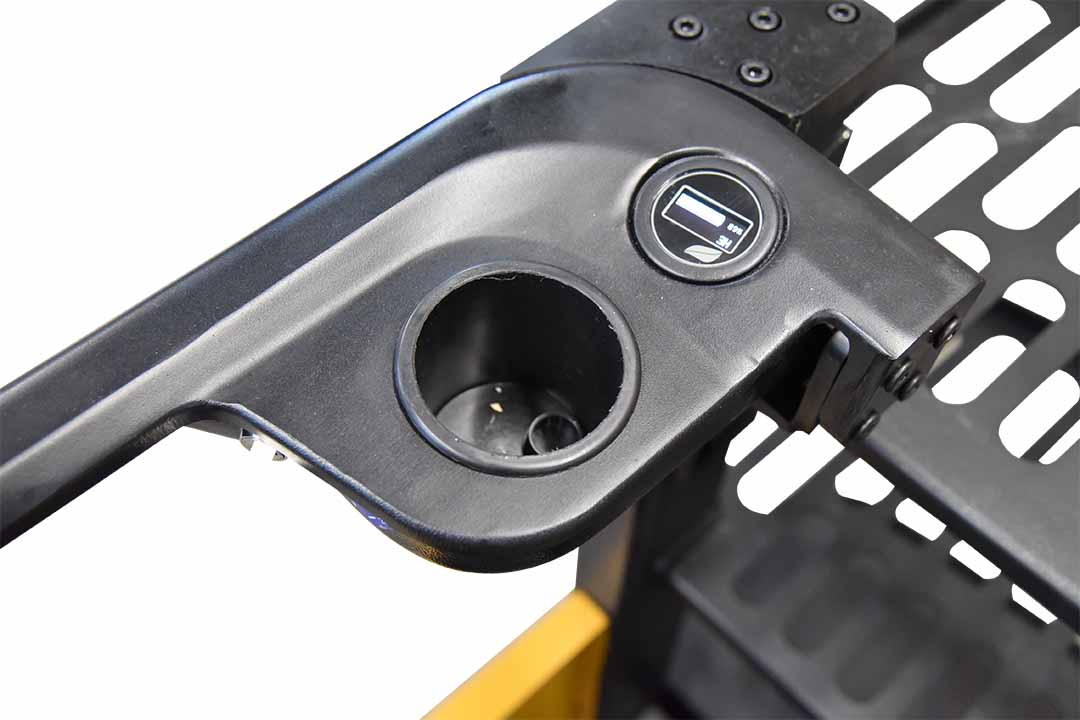

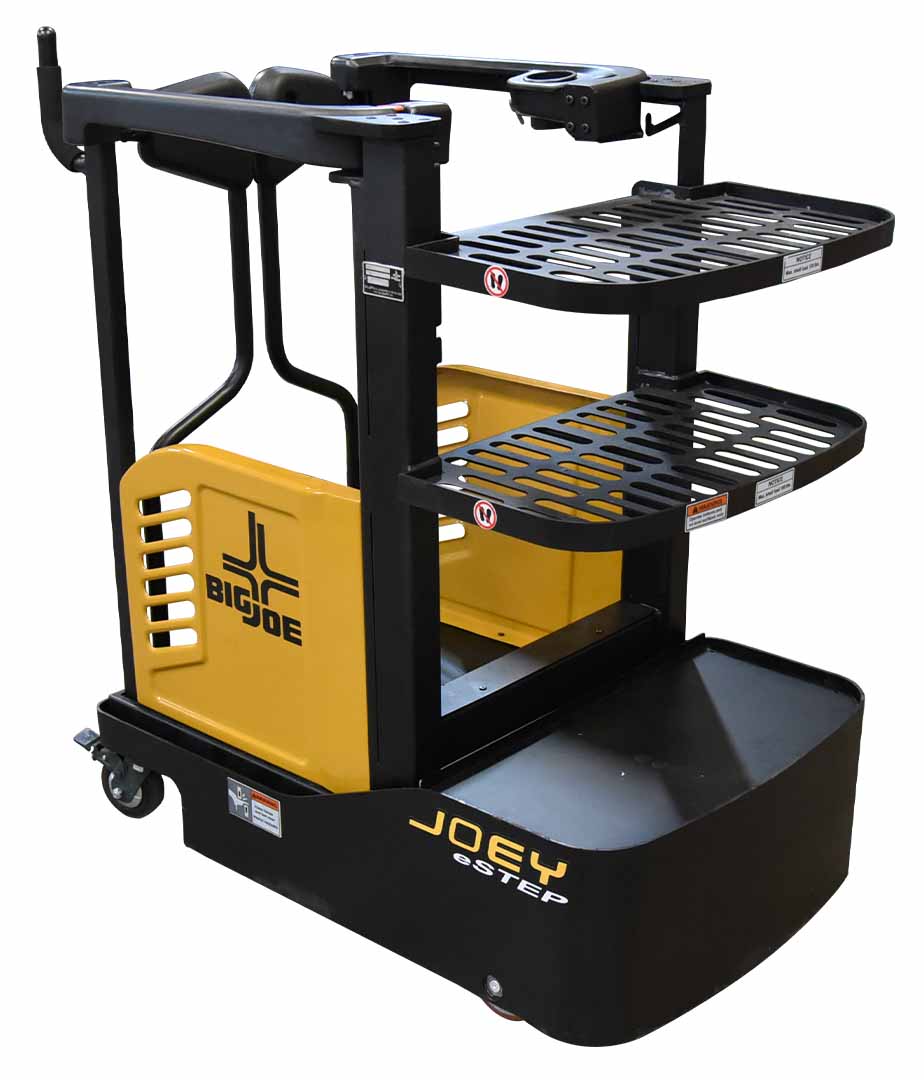

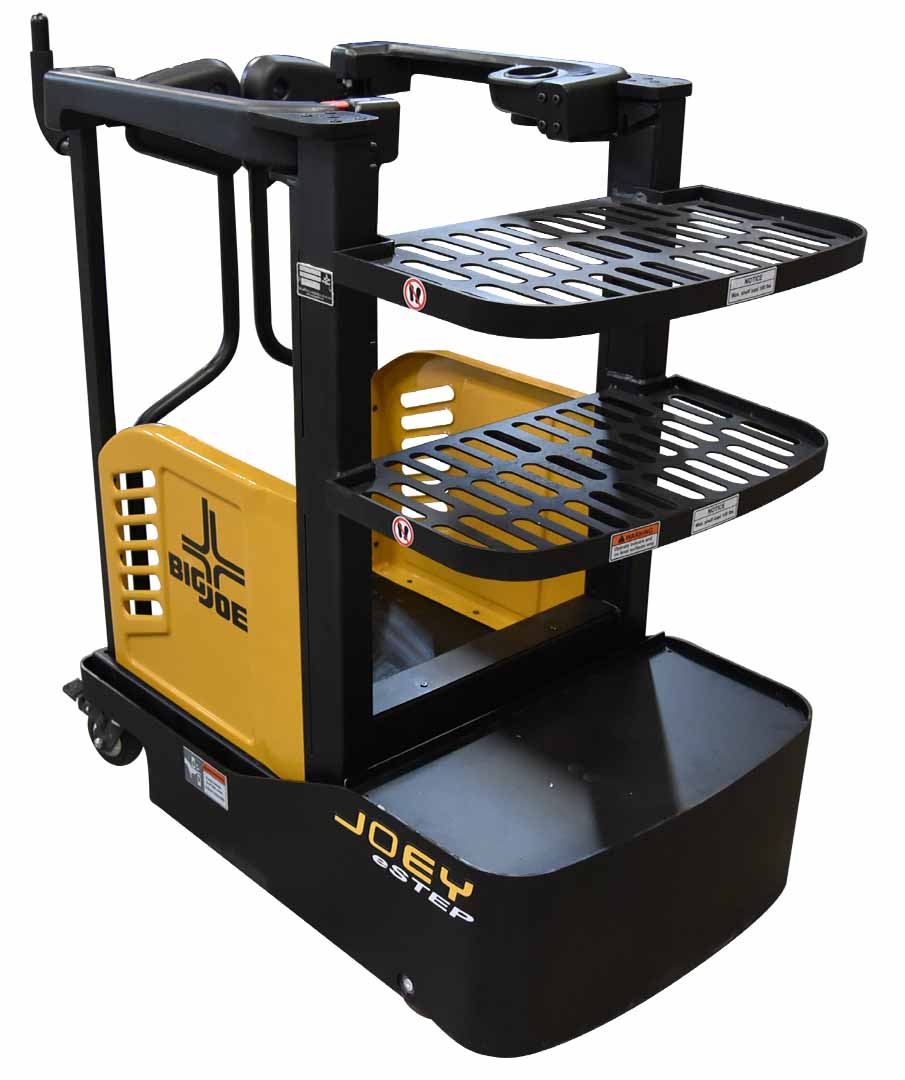

Manual movement and positioning is easy even when loaded, thanks to the four large polyurethane caster wheels and high mounted rear push bars. Two large steel load trays on the front of the eStep allow the operator to access multiple items without having to raise and lower repeatedly, and a load platform on the chassis can carry additional materials from location to location. Standard equipment includes a cup holder, a key switch to limit access to approved personnel, and an integral lithium battery & integral 110v smart charger.

Features

Maximum operator compartment lift height 42”

DC lift motor with twin post hydraulic elevating

Integral lithium battery & 110VAC plug-in smart charger

Automatic floor lock when elevated

2 front load trays with 100lb capacity each

Front load deck with 100lb capacity

Specifications
Vehicle Type

Semi-Electric Access Vehicle

Maximum Capacity

600lbs. (300 operator /  100 per shelf (2) / 100 front tray)

Load Center

24"

Power

DC Lift Motor

Charger

110VAC plug-in smart charger

Max. Lift Height

42”

Collapsed Height

54.75”

Vehicle Dimensions

Download Brochure

Travel Speed

Download Brochure

Product Video
