Walk Behind Lifts // PDSR

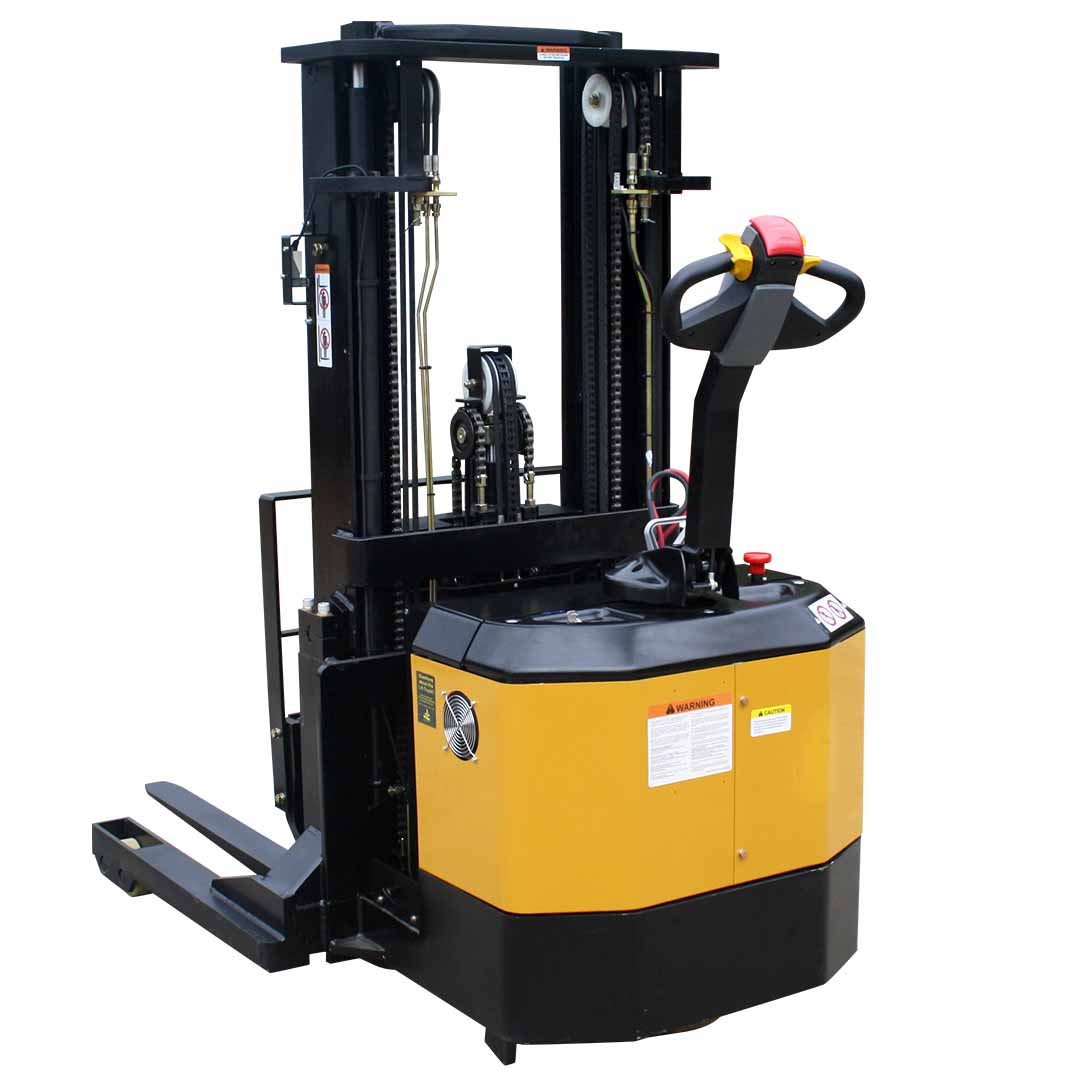

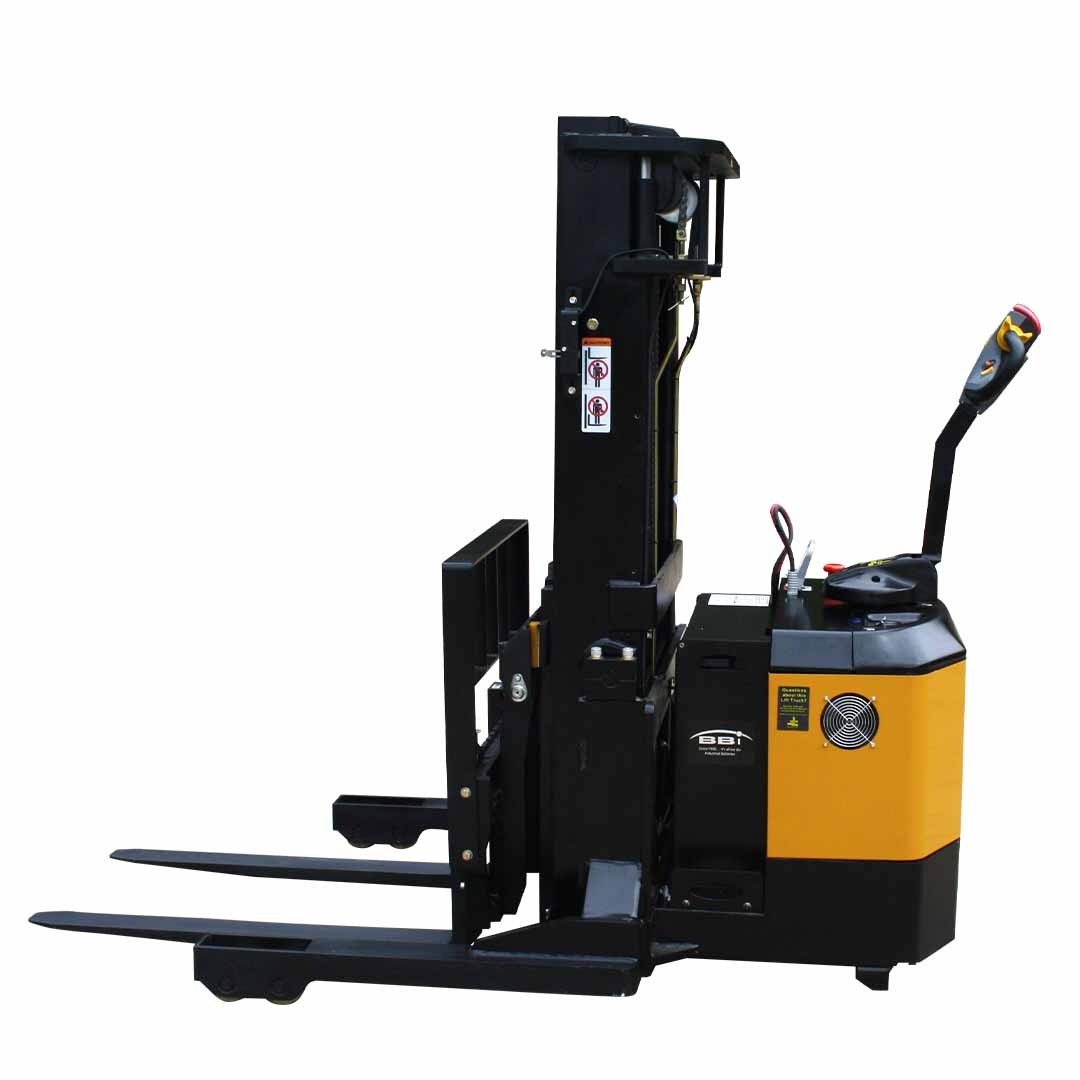

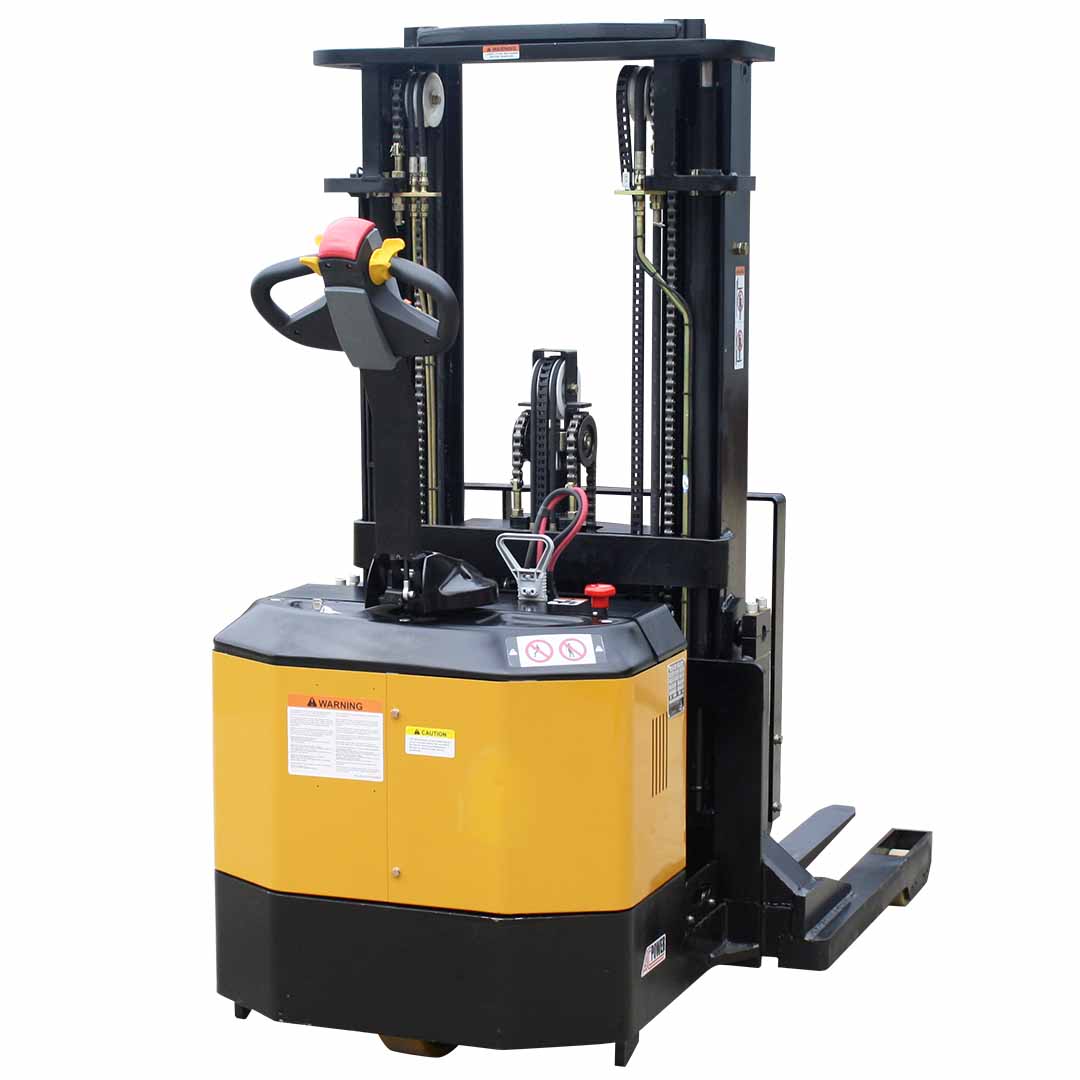

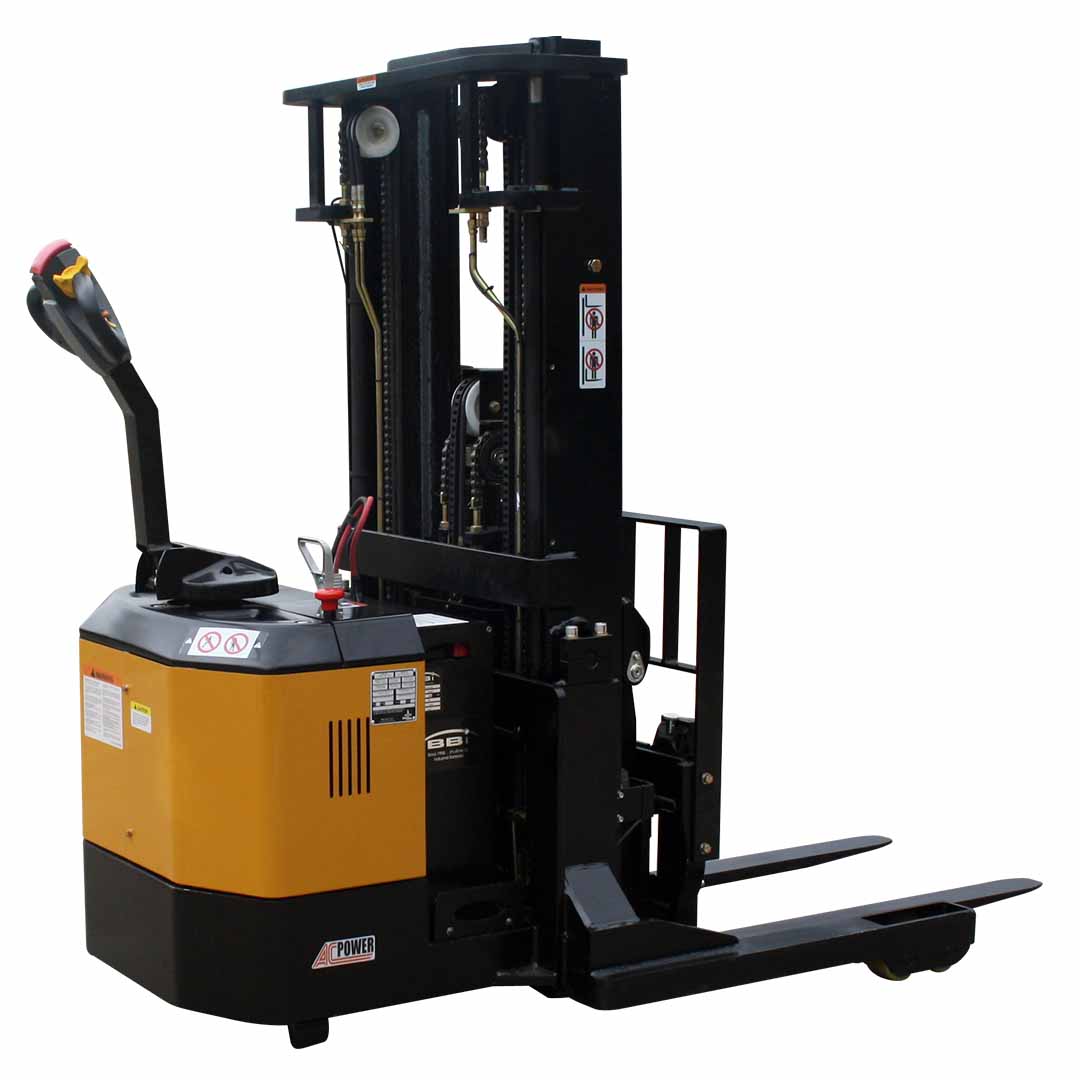

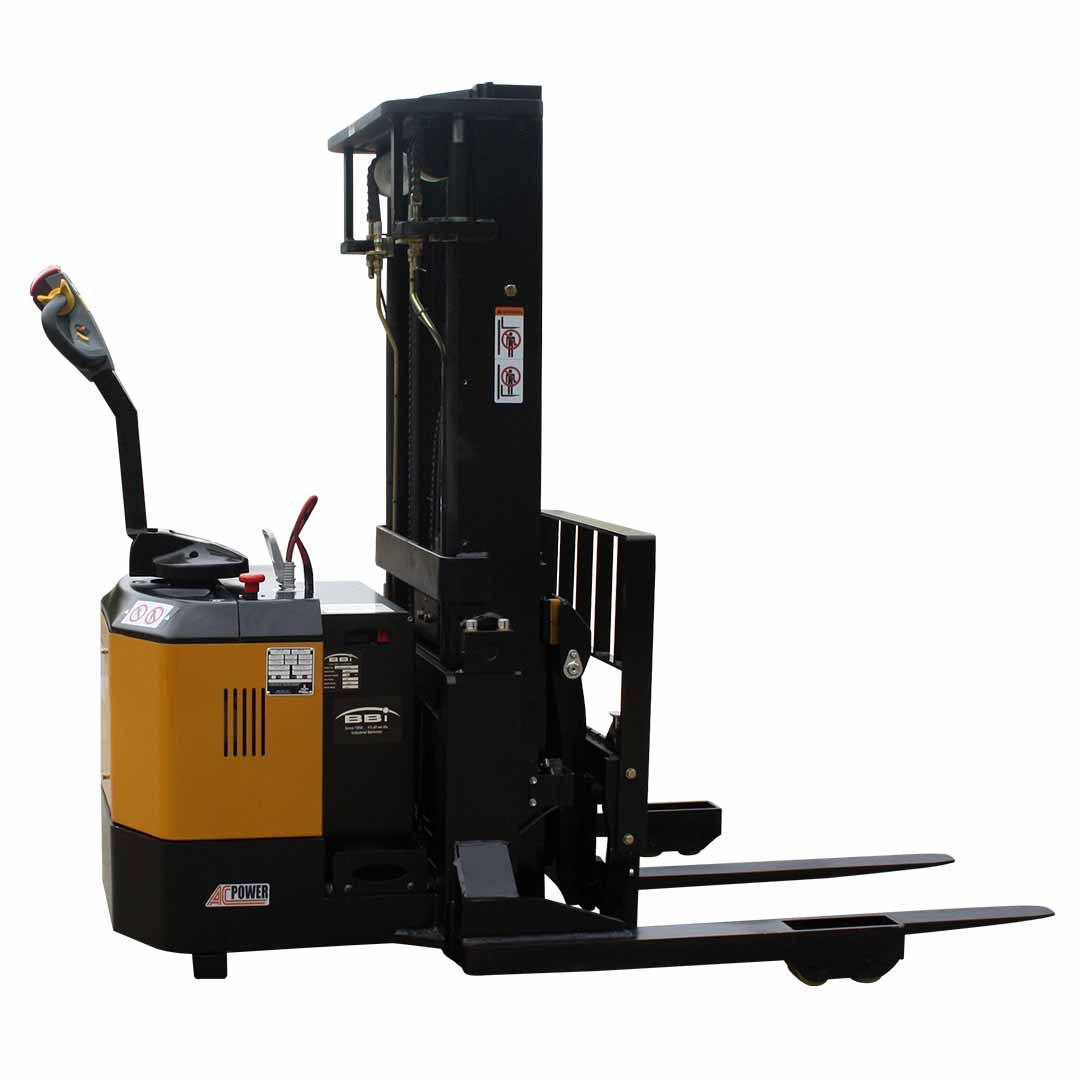

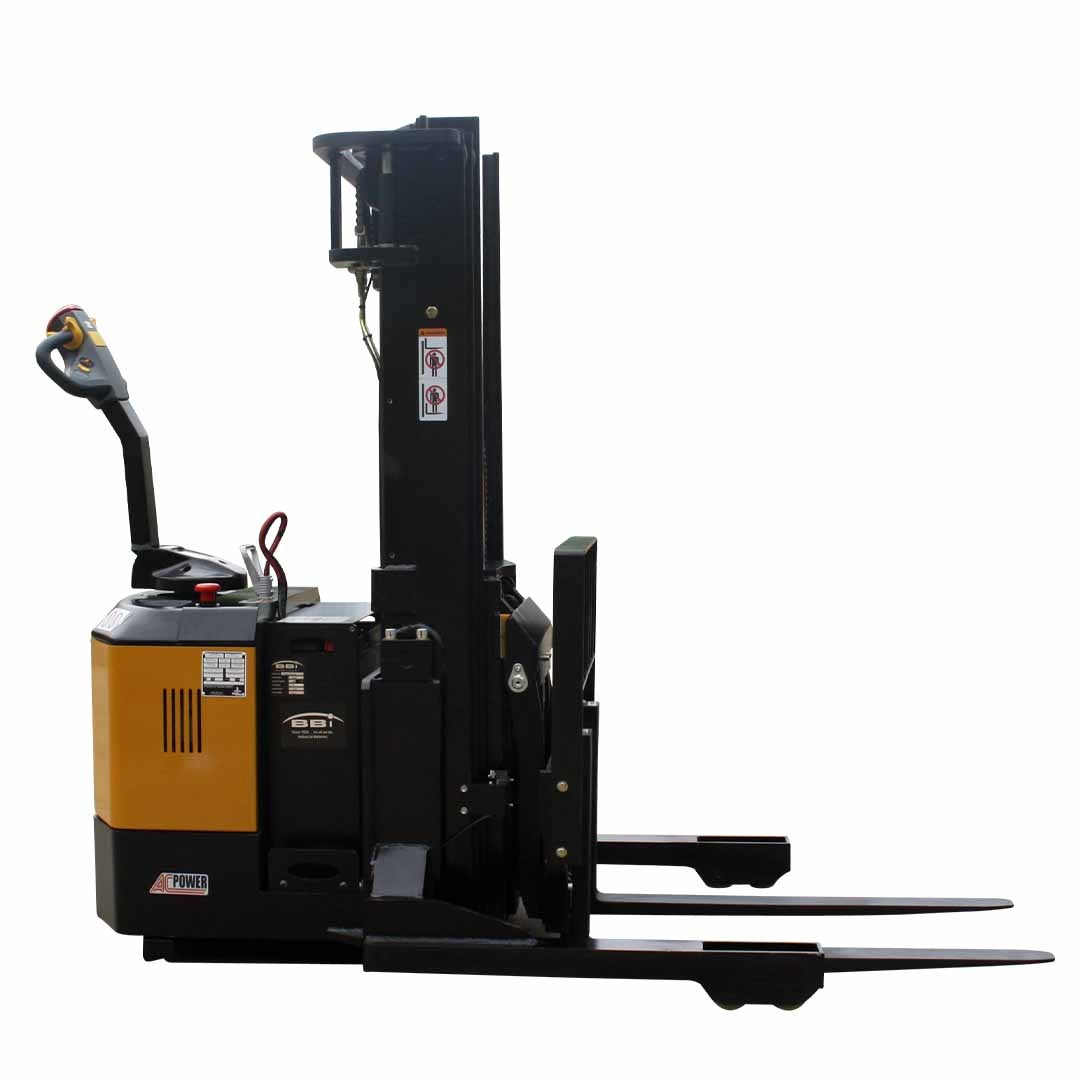

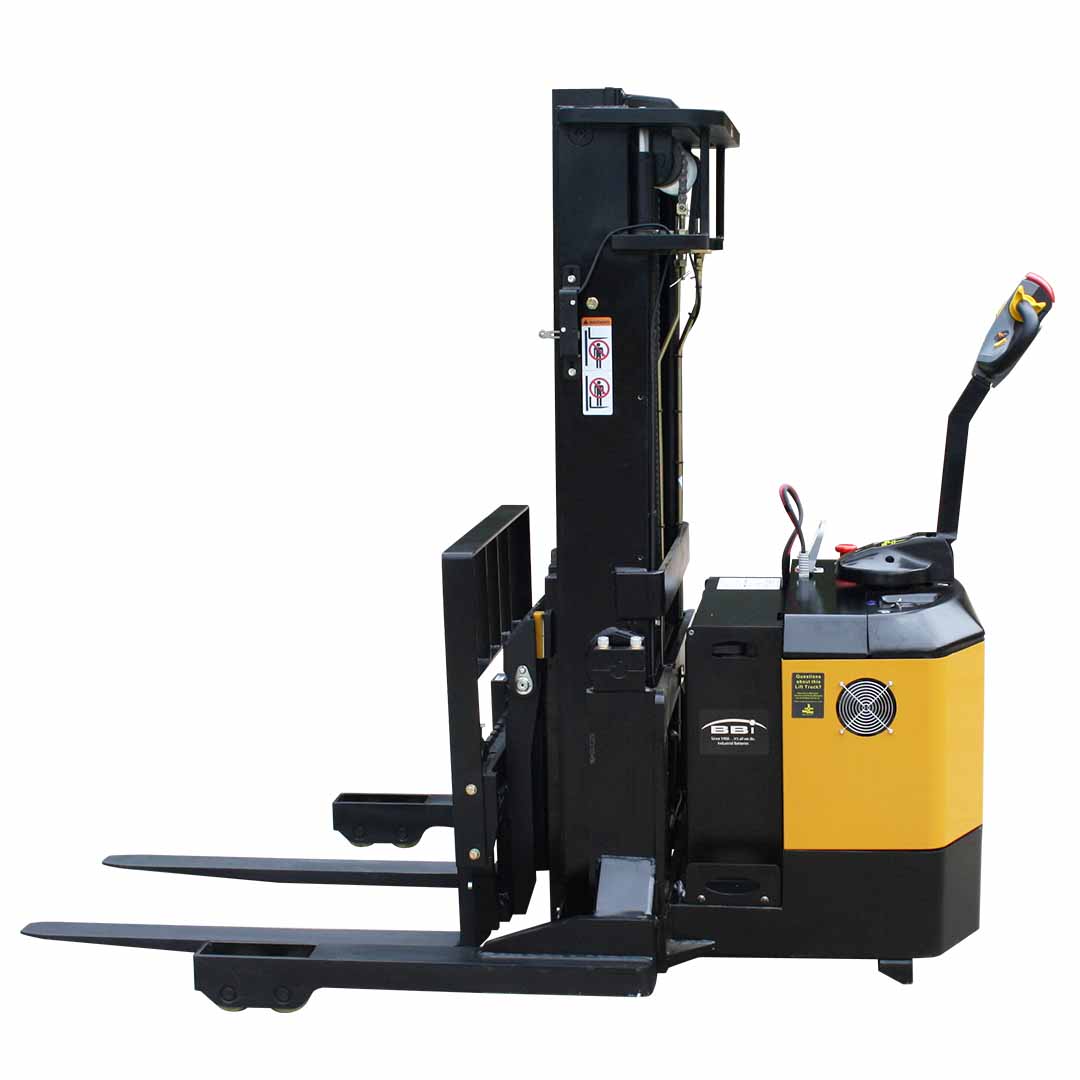

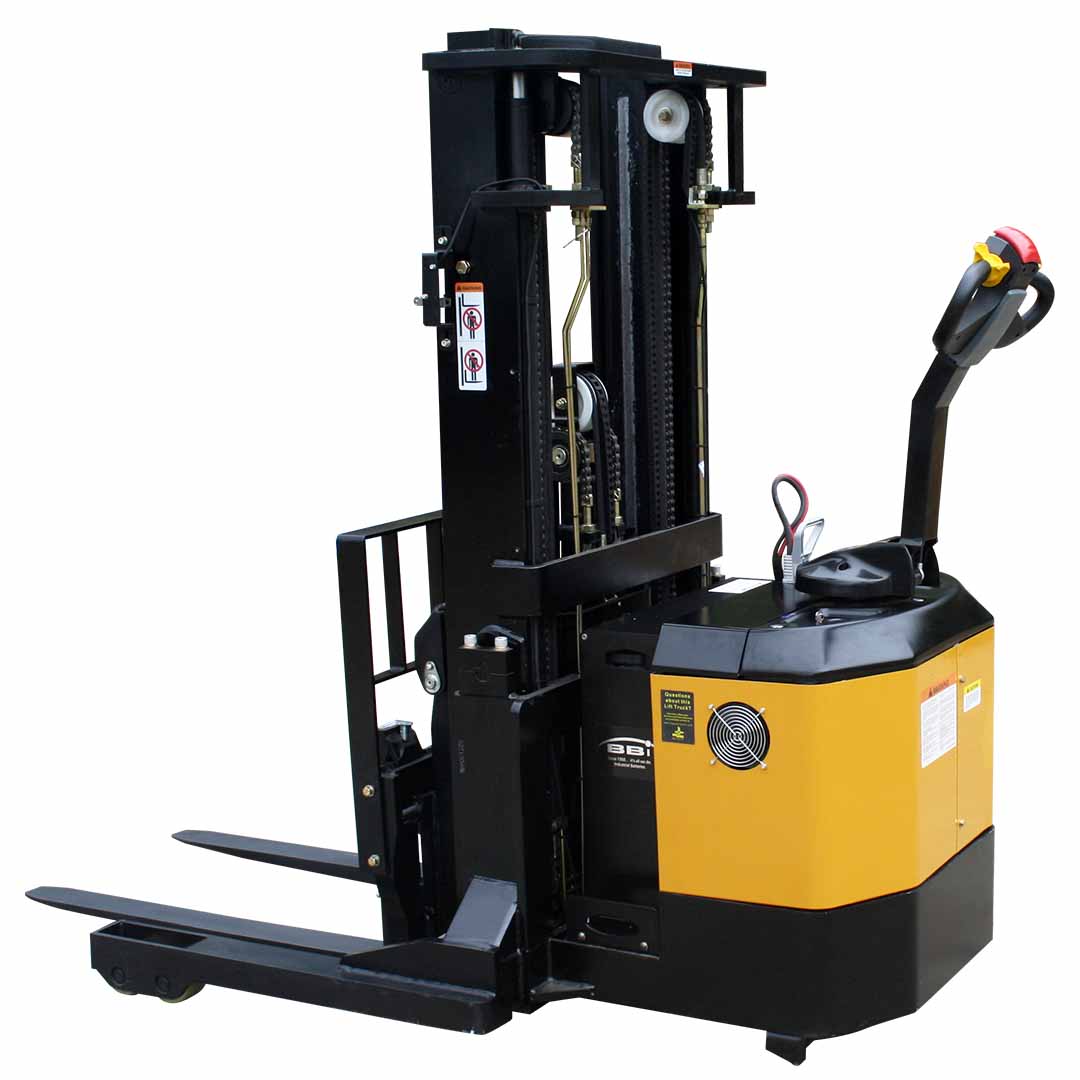

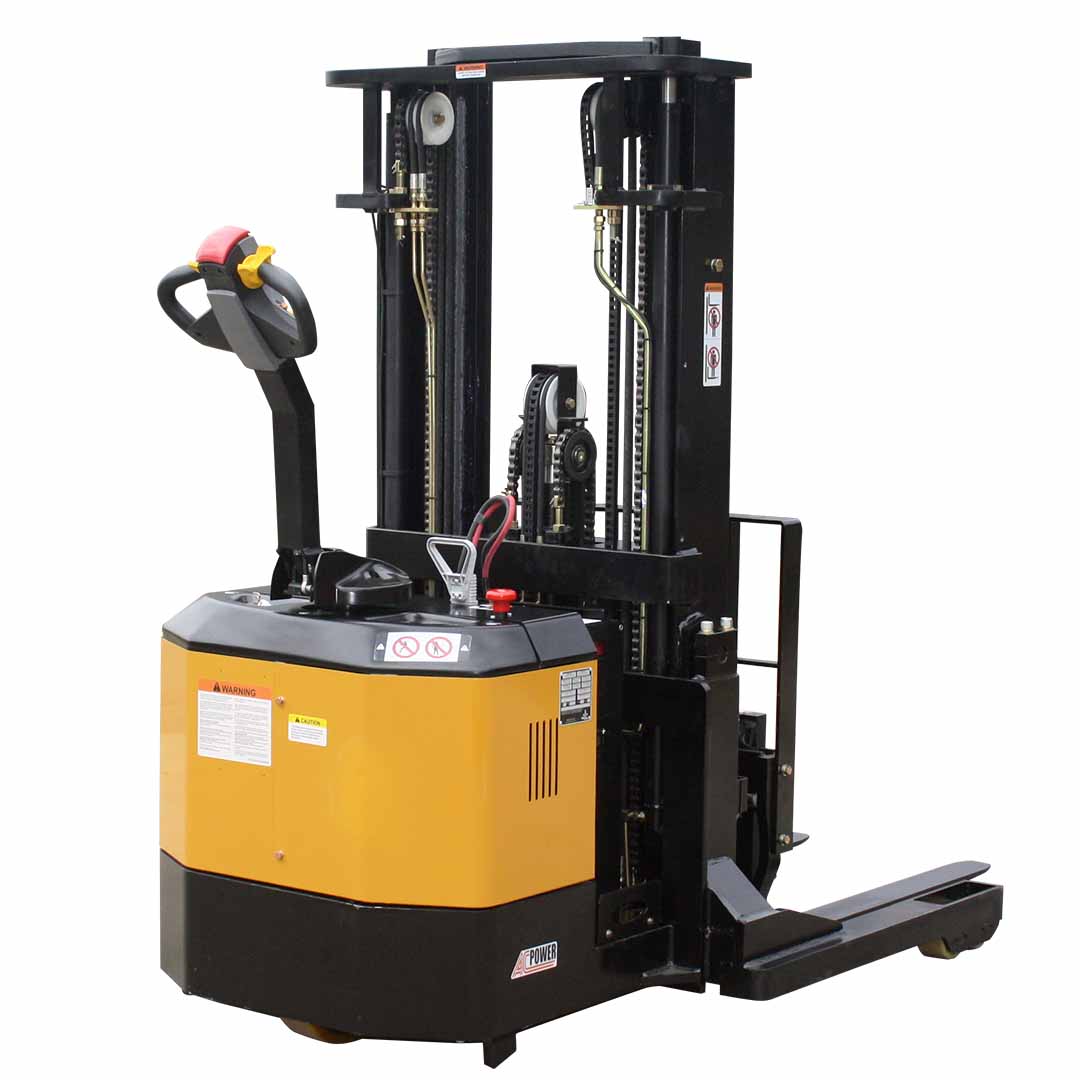

PDSR Walkie Reach Stacker, 3000 lb., heights up 189”

AC Walkie Reach Stacker With Power Steering

3,000lb capacity models with lift heights to 189"

The PDSR combines the tight turning characteristics and low operating cost of a walkie straddle stacker with the flexibility of a counterbalanced truck through the use of a pantograph. This mechanism extends the loads being handled beyond the straddle legs to lift or lower products and can be retracted for compact turns. With the addition of power steering, side shift, proportional hydraulics, and tilt, the PDSR delivers exceptional versatility and easy intuitive control.

Features

24volt ZAPI transistor control with high torque

AC drive motor.

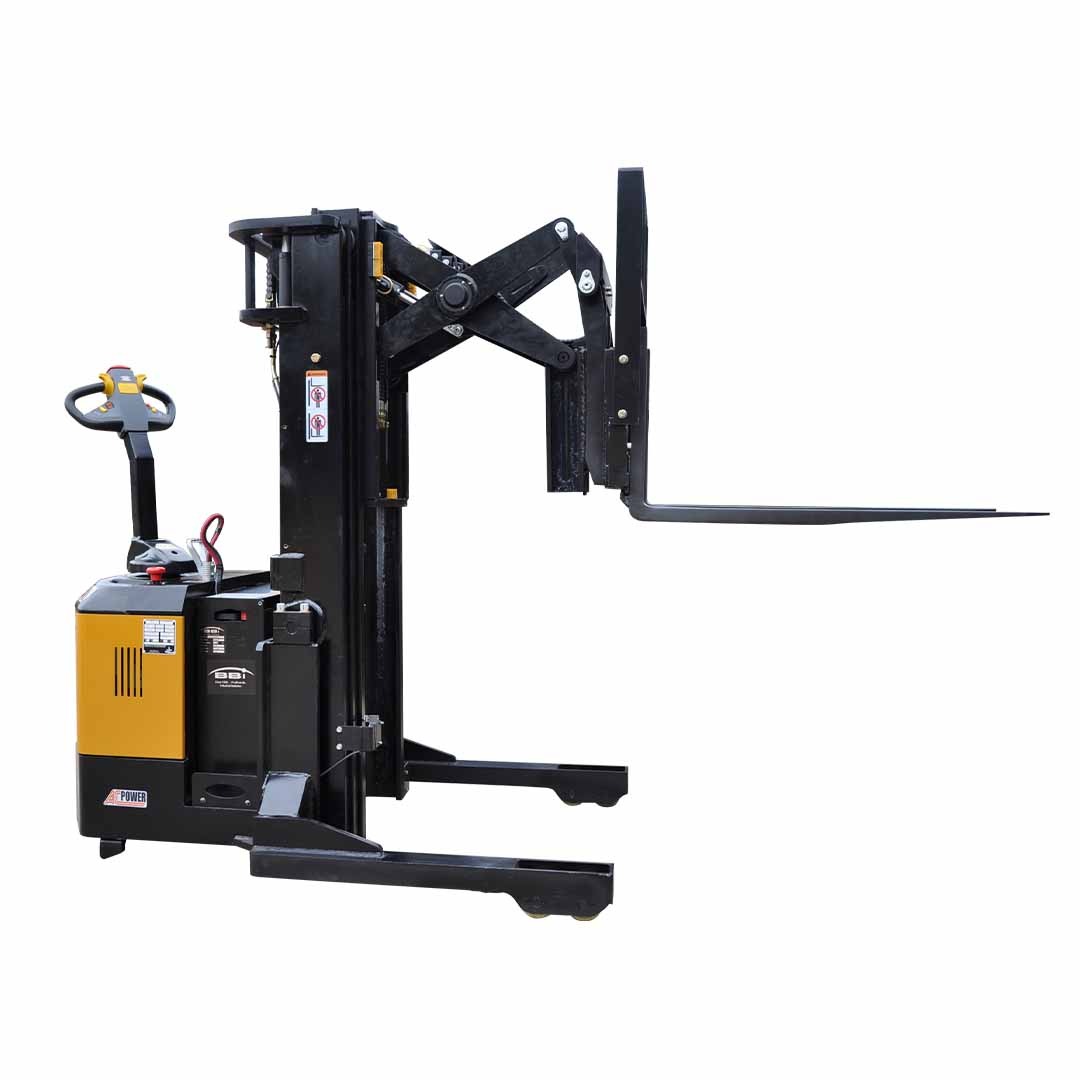

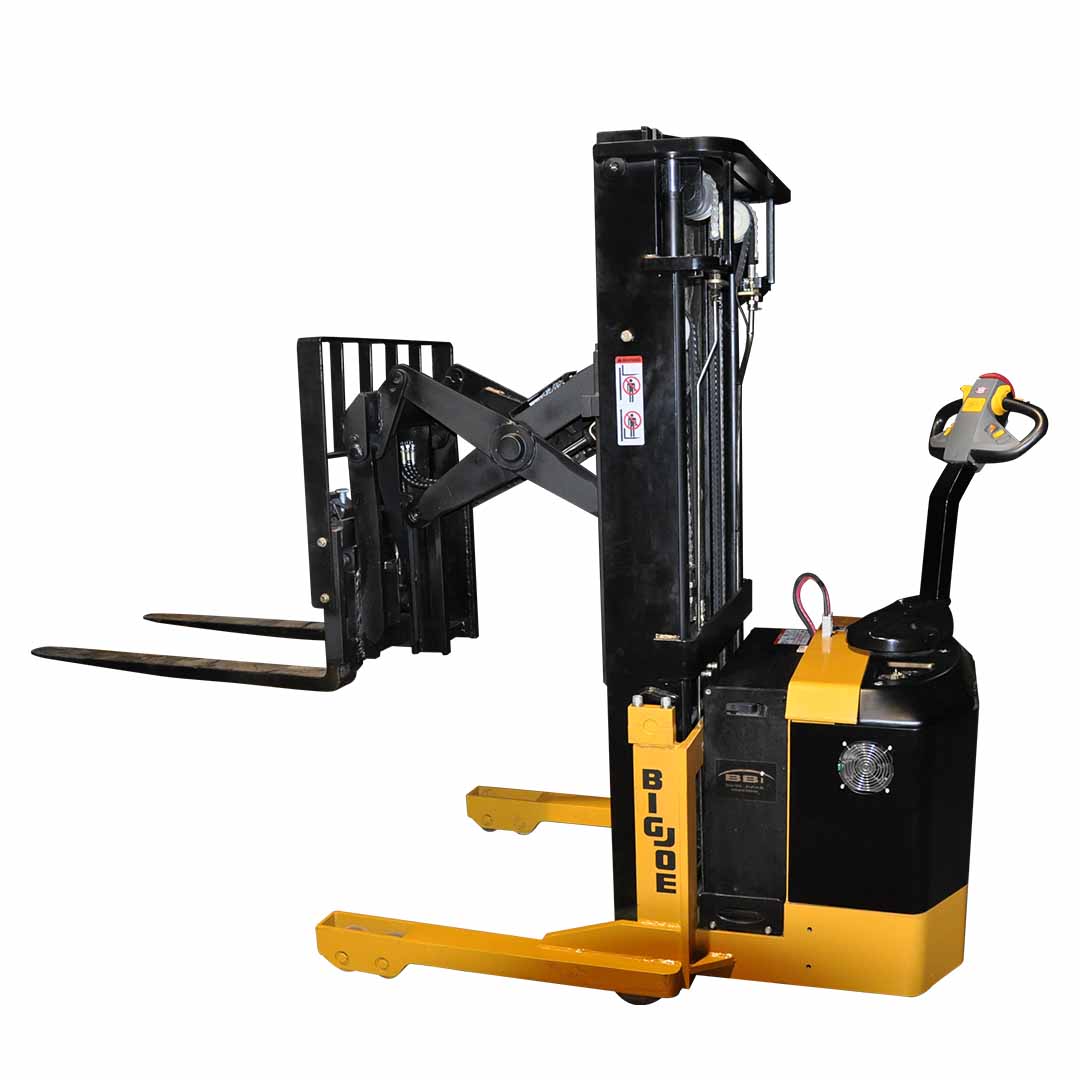

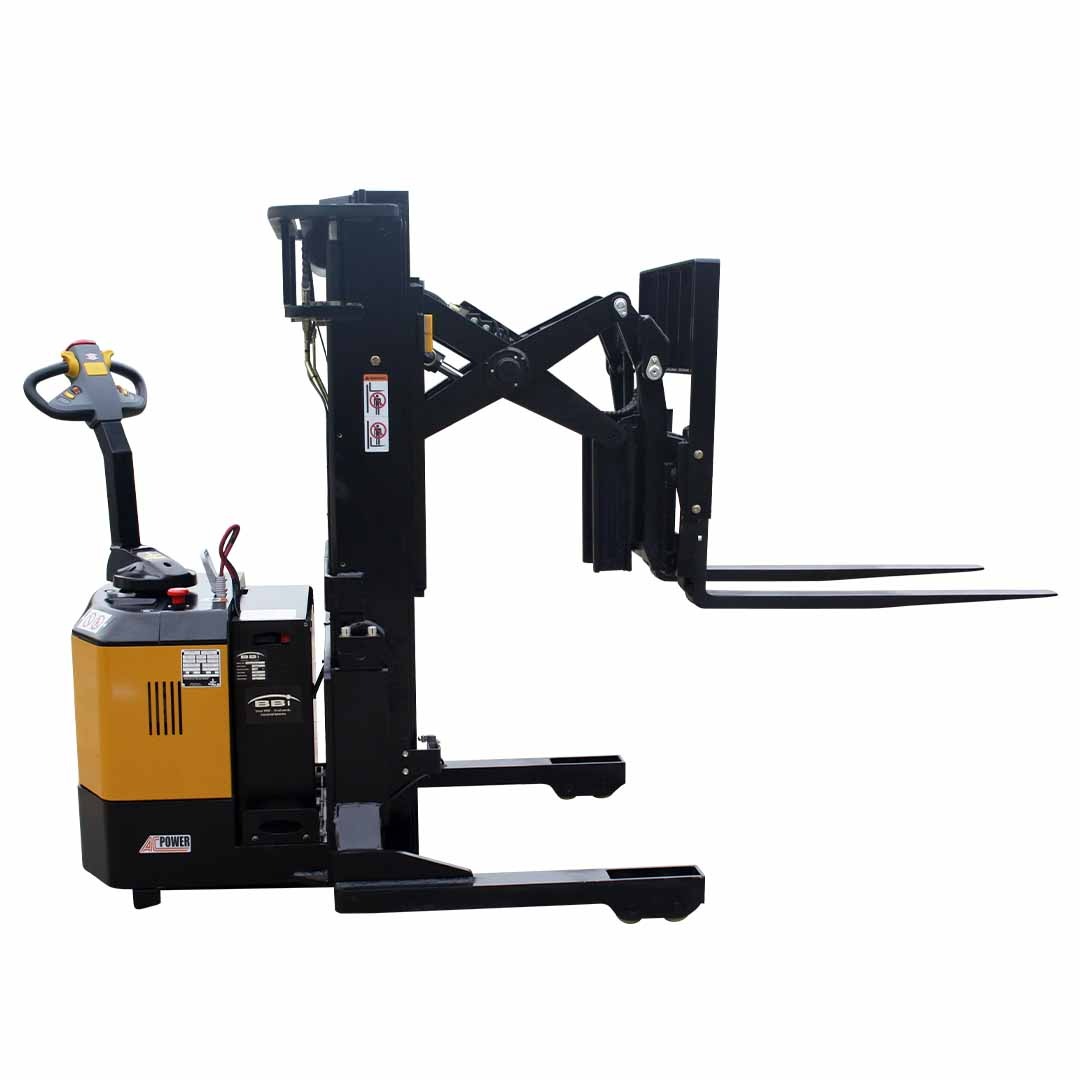

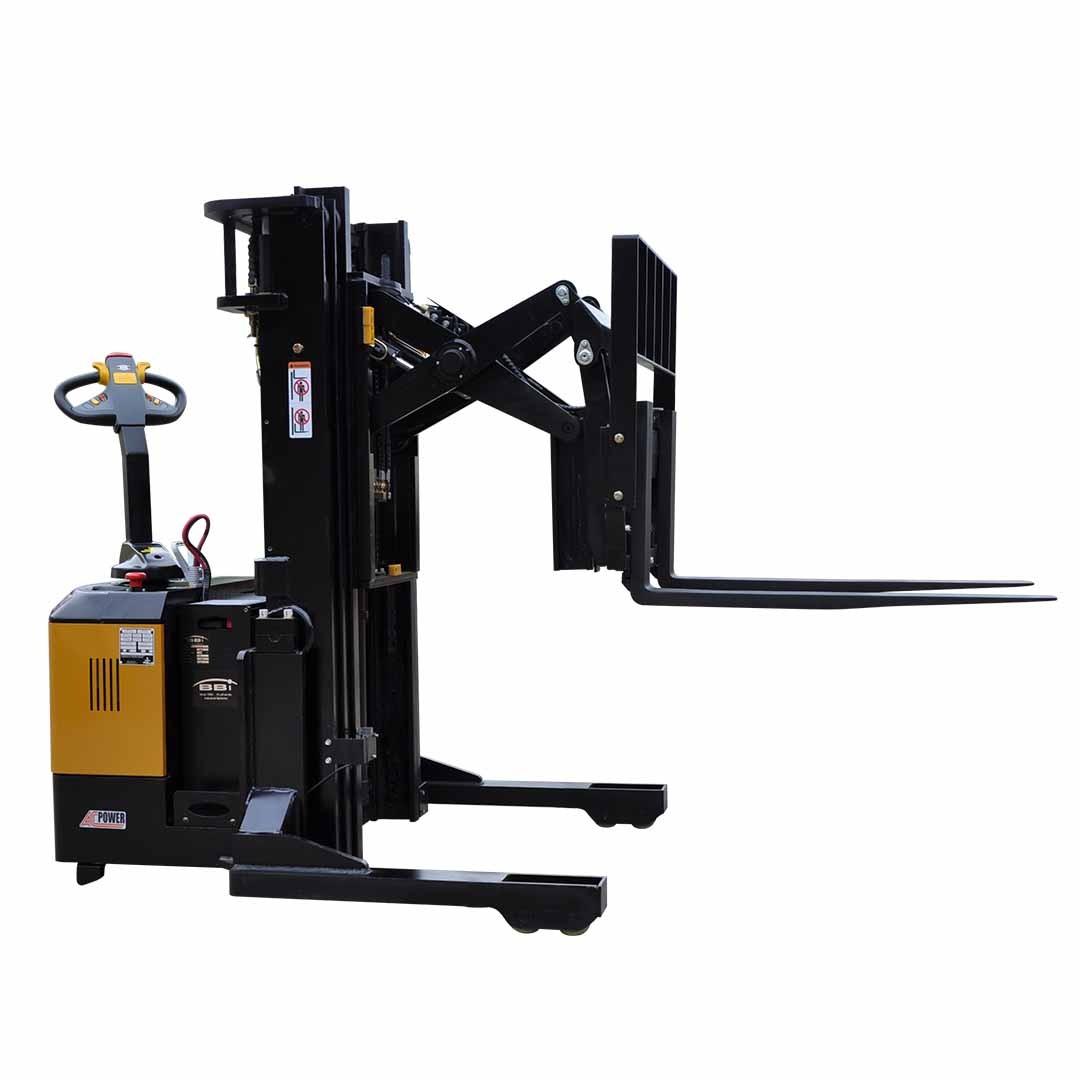

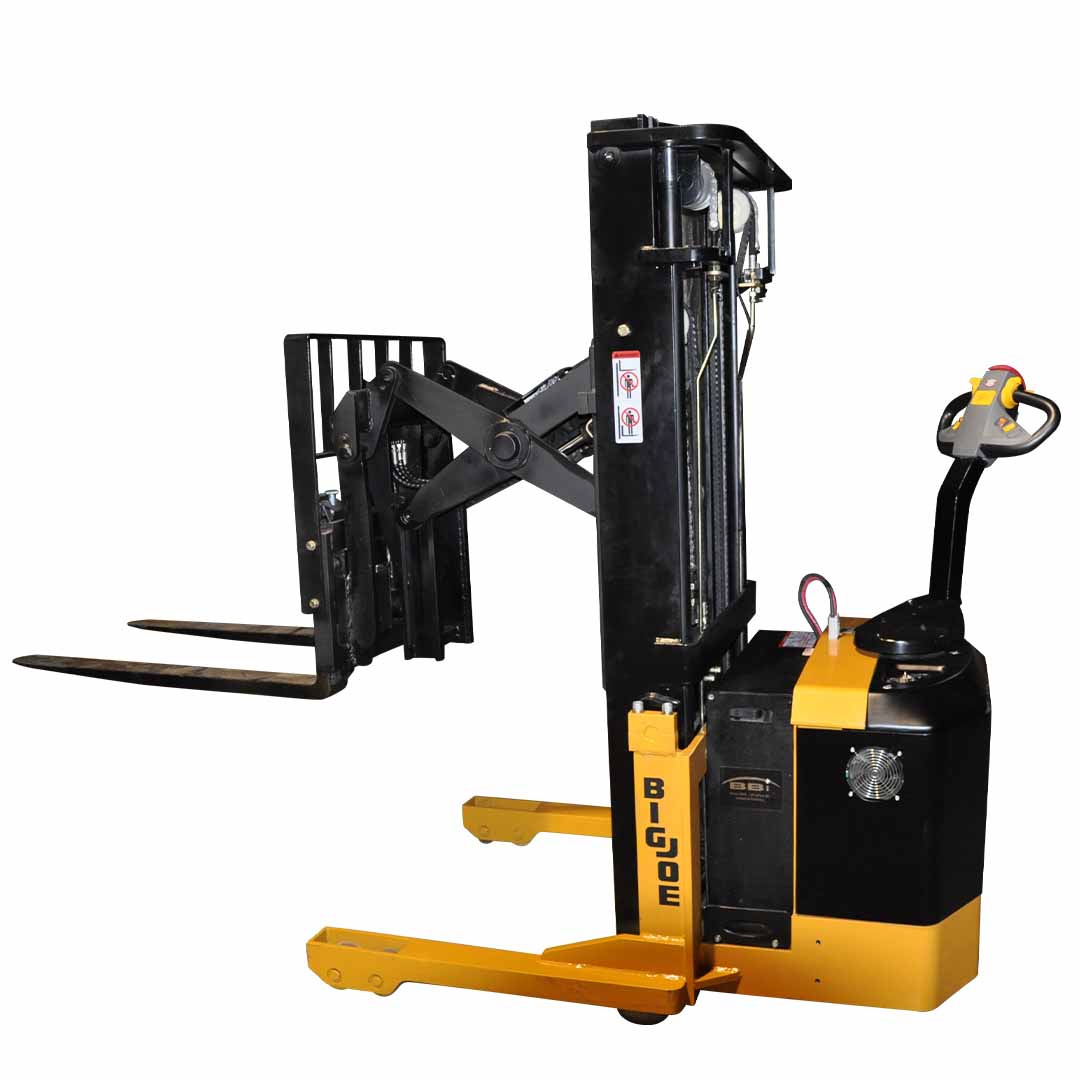

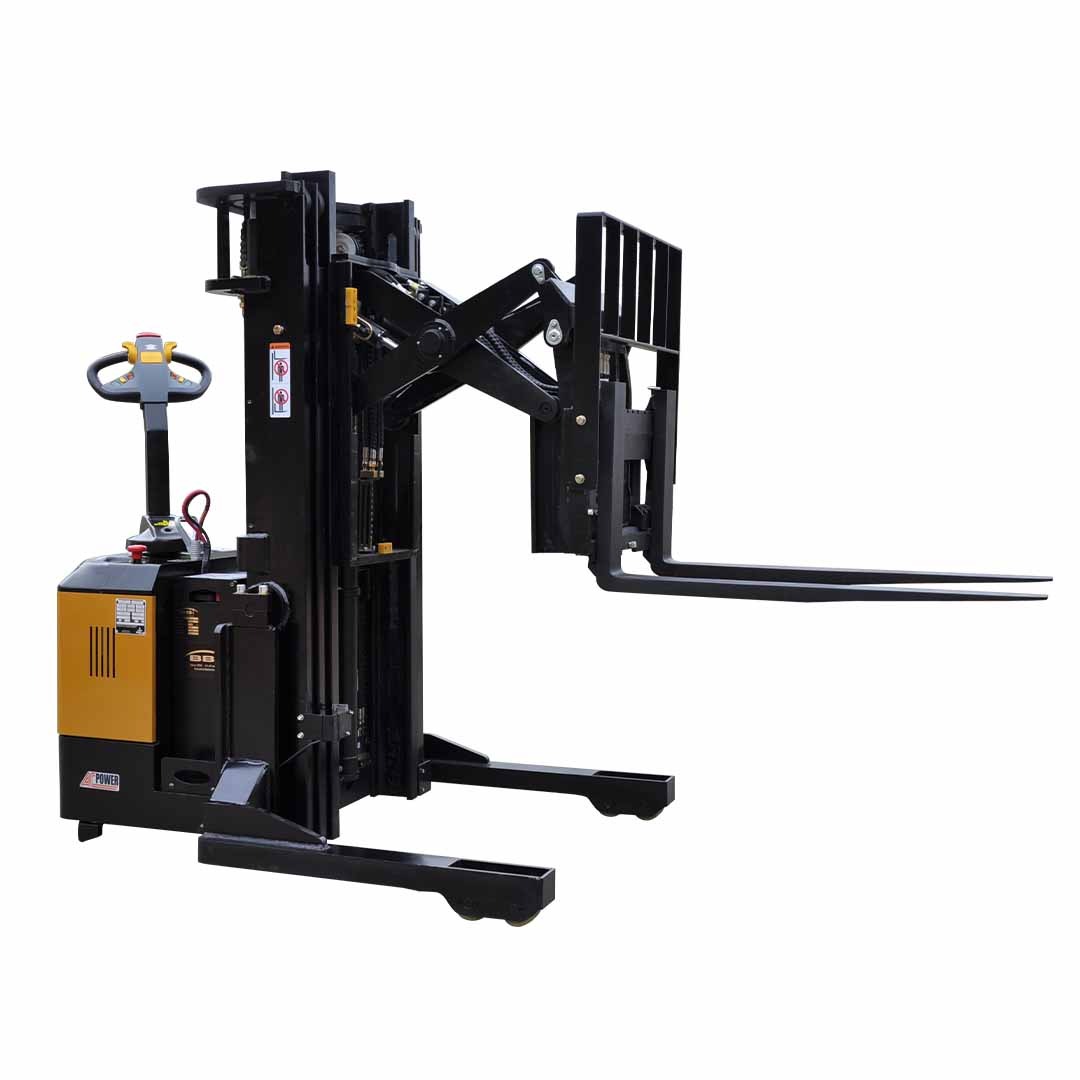

Pantograph extends forks beyond straddle legs.

Power steering, side shift, tilt and proportional lift, lower, extend & retract

Choice of 34"/42" or 42"/50" fixed straddle legs.

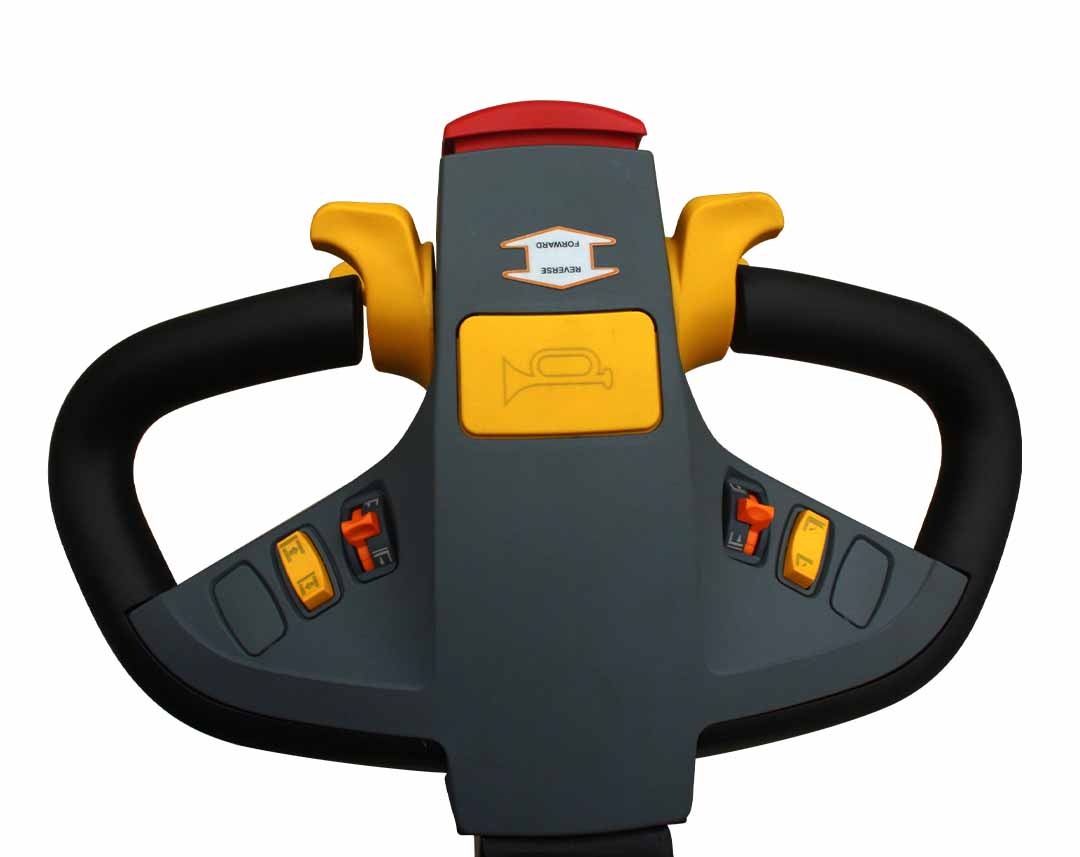

Ergonomic control handle with safety reversing switch and horn

Industrial battery or 224 AH Maintenance free battery pack

Battery discharge indicator with hour meter

Key switch to limit access to approved personnel

Specifications
Vehicle Type

Walkie Reach Stacker

Capacity

3,000lbs

Load Center

24"

Power

24 volt AC electric with ZAPI controller

Charger

External or 120v integral to battery pack

Fork Dimensions

42" L x 4" W x 1.5" Thick

Collapsed Height

Masts available as low as 76.5"

Turning Radius

See specification sheet

Vehicle Dimensions

Download Brochure

Travel Speed

Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
