Pallet Trucks // PTE40L

PTE40L Electric Powered Pallet Truck

The PTE40L 4,000lb capacity, walkie electric pallet truck is one of our most popular entry-level, fully electric pallet jacks. It is the ideal choice for material transportation within a short distance and for trailer loading/unloading.

This ergonomic, compact pallet truck is equipped with high-quality components like AC drive, Curtis Controller, maintenance-free battery and built-in charger. High-performance - Competitively priced - One of the best values on the market.

Features

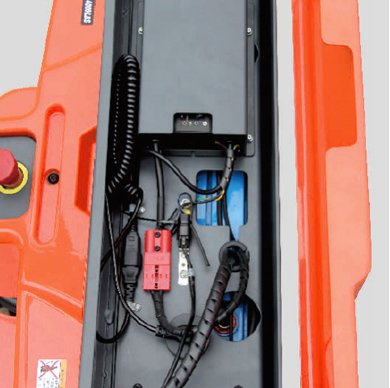

Equipped with 160Ah maintenance-free battery, with working time of 12 hours according the the VDI calculations, or for continues work for 7 hours.

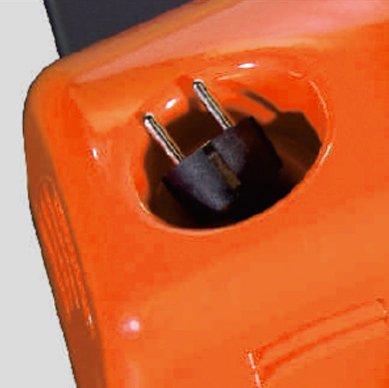

The built-in charger is located above the battery for easy charging after opening the battery cover.

Easy-Maintenance

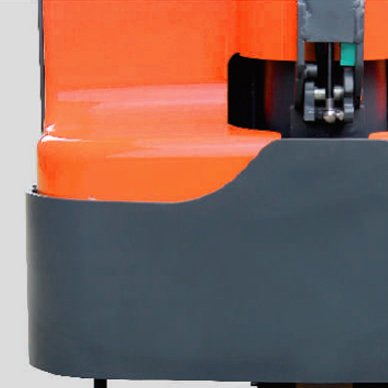

The robust chassis with the strong 8mm thick apron protects the truck and the components against mechanical impacts from the outside. The steel battery cover ensures the battery is well protected. IP54 protections for the controller enables safe operation for deliver applications where dust and water droplets are common.

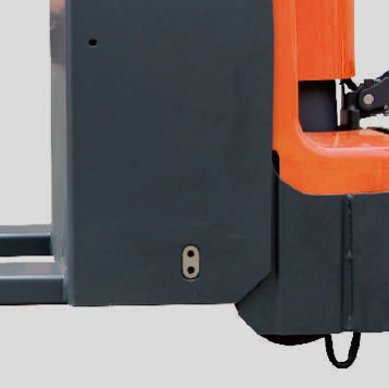

Higher ground clearance, for easy operation on uneven grounds with potholes or small obstacles such as small threshold or trailers with lifting gates.

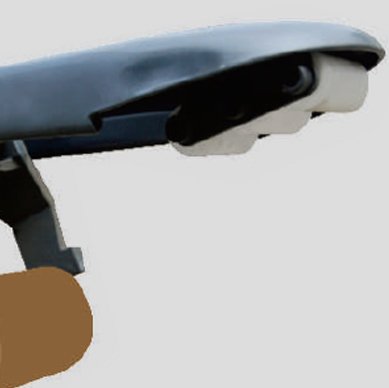

Special fork tip design has 3 entry rollers and 4 exit rollers for easy entry and exit of the pallet, especially when the pallet is empty or has a light load.

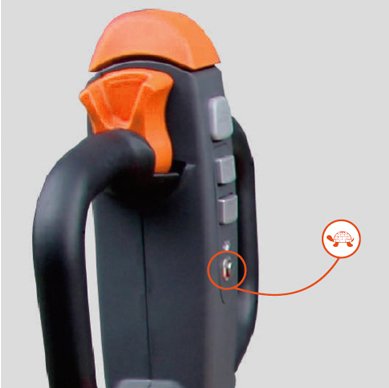

Crawl/Slow speed button for safe and easy operation within confined spaces such as steering within a trailer or a container.

Ergonomic control handle with horn button and belly button.

Dual butterfly-style thumb controls

Key switch limits access to approval personnel.

Emergency power disconnect

Specifications
Unit Type

Electric Pallet Truck

Load Capacity

4,000lb

Load Center

24"

Power

24 volt / 160 Ah AGM

Maintenance-Free Battery

Battery Charger

10AMP 100V Built-In Charger Standard

Fork Dimensions

27" W x 48" L Standard

Max Fork Height

7.7"

Collapsed Height

3"

Turning Radius

60"

Vehicle Dimensions

Download Brochure

Travel Speed

Download Brochure
