Walk Behind Lifts // S22

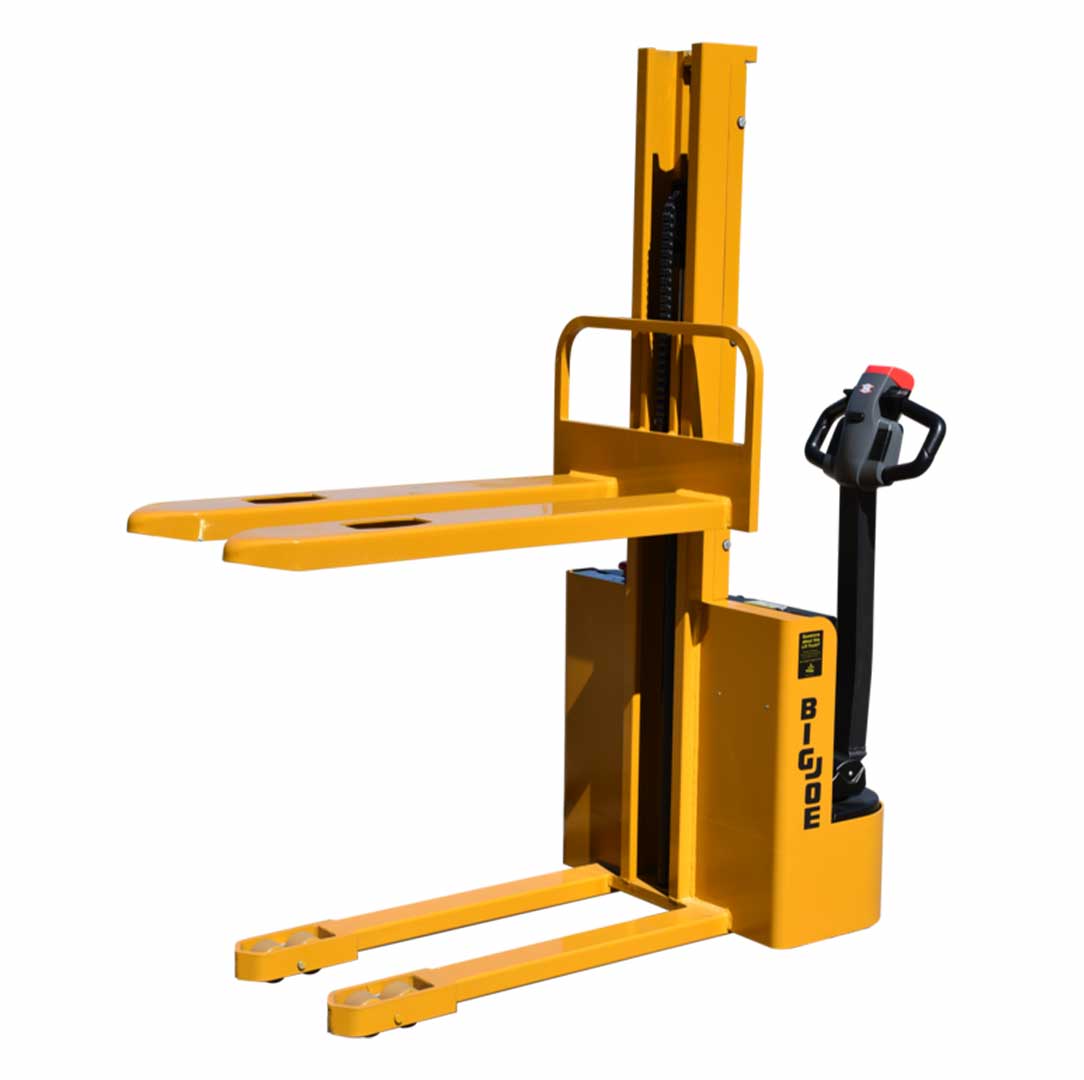

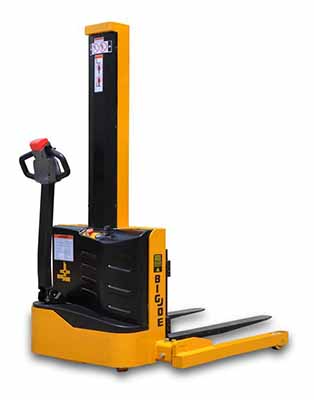

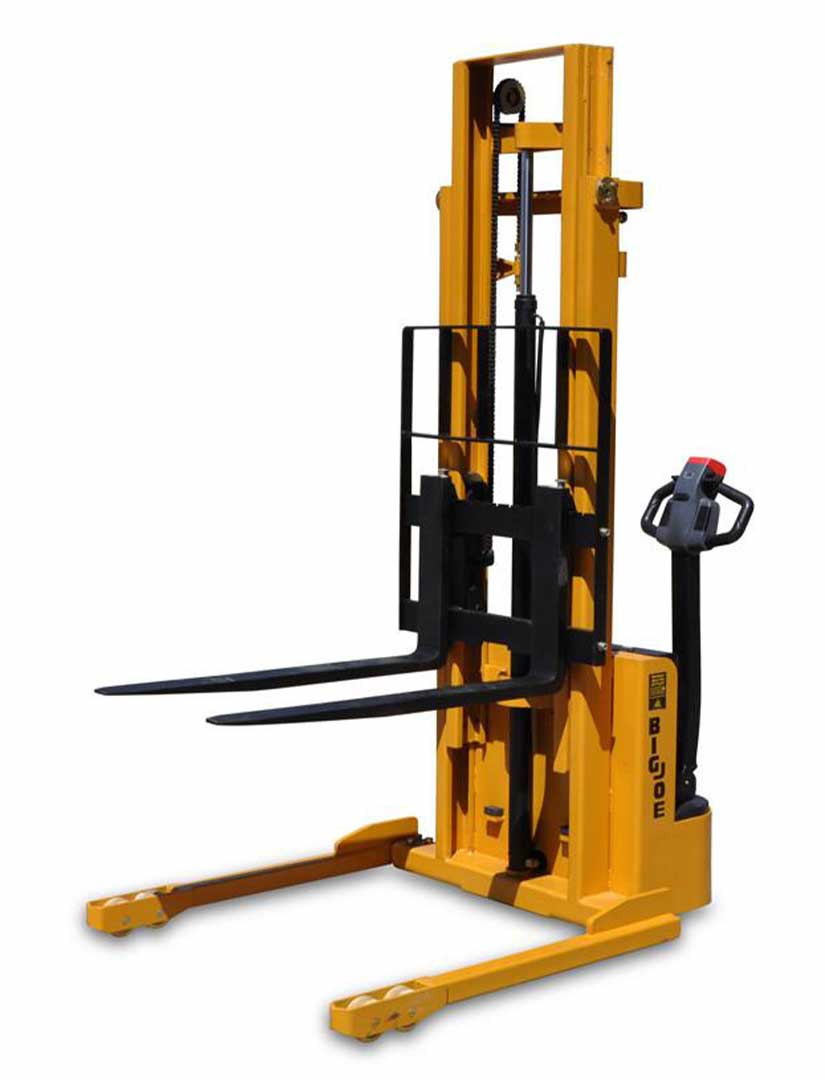

S22 2200lb. Electric Stacker 62”-116”

S22 2,200lb. capacity standard model with maximum lift heights from 62"-116".

An easy to use and maintain truck that is a good choice for general material handling, stacking and work positioning in tight areas. Offset tiller and control head improve visibility, turning radius and safety when traveling in the powerhead first direction.

S22-62R forkover model also available for use with skids, general work positioning and transportation.

Features

24volt system

High efficiency drive motors.

Adjustable straddles. S22-62R Fork over configuration available.

Infinitely variable speed operation for tight turning in close quarters

Ergonomic handle with safety reversing switch and horn

Maintenance free integral batteries and 110volt charger

Battery discharge indicator, Emergency power disconnect

Key switch to limit access to approved personnel

Specifications
Vehicle Type

Walkie Straddle Stackers

Capacity

2,200lbs. @ 24” load center

Load Center

24"

Power

24 volt - S22 DC / S30 AC

Charger

Integral to pack, 110v plug-in

Battery Capacity

S22 60AH to 85AH

Fork Dimensions

42" x 4" x 1.5" / S22-62R 45" x 22"

Max Lift Heights

S22 62", 98", 116"

Turning Radius

Download Brochure

Vehicle Dimensions

Download Brochure

Travel Speed

2.5 mph
