Walk Behind Lifts // SPN22

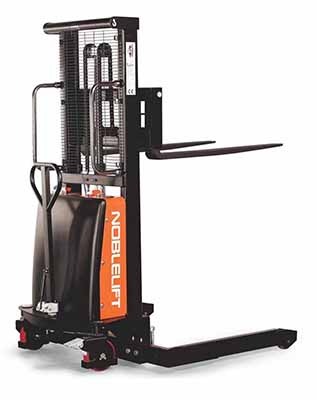

SPN22 2200lb. Manual Push Around Stacker 62”-118”

The SPN22AG 2,200lb capacity, semi-electric stacker is available in (4) different maximum lift heights and is designed for light-duty lifting of loads, skids, racks and objects. The lifting is electric powered with the controls conveniently mounted on the dash. It is manually propelled. Forks and straddle legs can adjust from side to side to accommodate different skid widths.

This ergonomic stacker is also equipped with a built-in battery charger, a battery gauge on/off key switch, an operator protection screen, foot pedal parking brake, dual-push handles mounted to the mast at a comfortable height, and a spring-loaded steering handle with comfort grip. Semi-electric - Excellent value!

Features

Ergonomic Comfort Grip Handle

Adjustable Forks and Straddle Legs. Forks lower to the minimum height of 2 1/8".

Two-Swivel and Two Rigid Casters provides four-wheel support for heavy loads.

Foot Pedal Parking Brake and Safety Screen ensure safety during operations.

Sturdy and Reliable Mast made of rolled U-profiles. Hard chrome plated pistons. Adjustable lifting chain. Powerful lift motor with 2.1 HP.

Integrated 150 AH Maintenance Free Battery supplies strong power to support frequent lifting tasks, an integrated charger facilitates easy and reliable charging of the built-in battery.

Specifications
Unit Type

Semi-Electric Stacker

Load Capacity

2,200lb

Load Center

24"

Fork Dimensions

42" Standard

Collapsed Height

3.15"

Max Fork Height

Download Brochure

Vehicle Dimensions

Download Brochure

Travel Speed

Download Brochure

Inquire
