Counterbalance Lifts // PDC

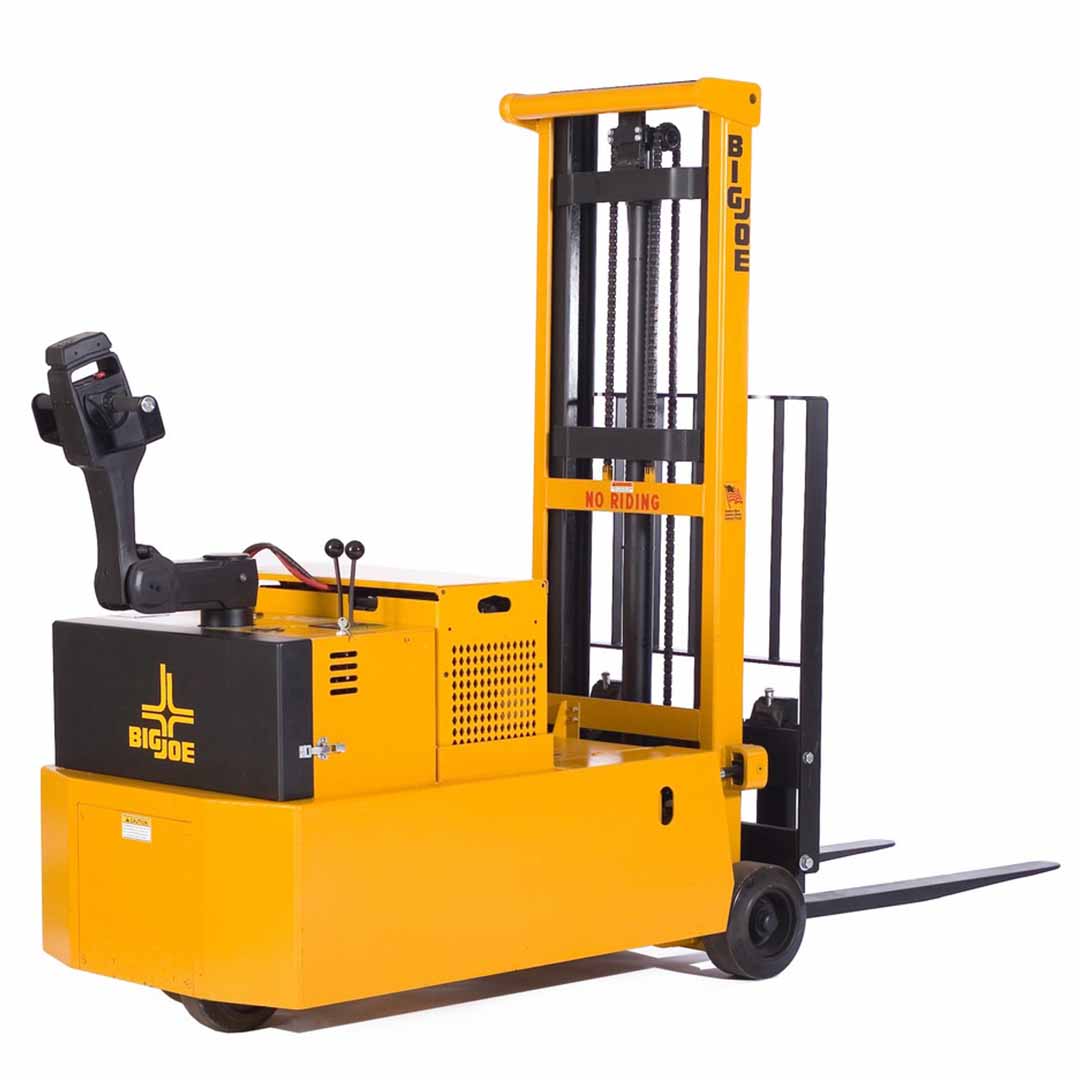

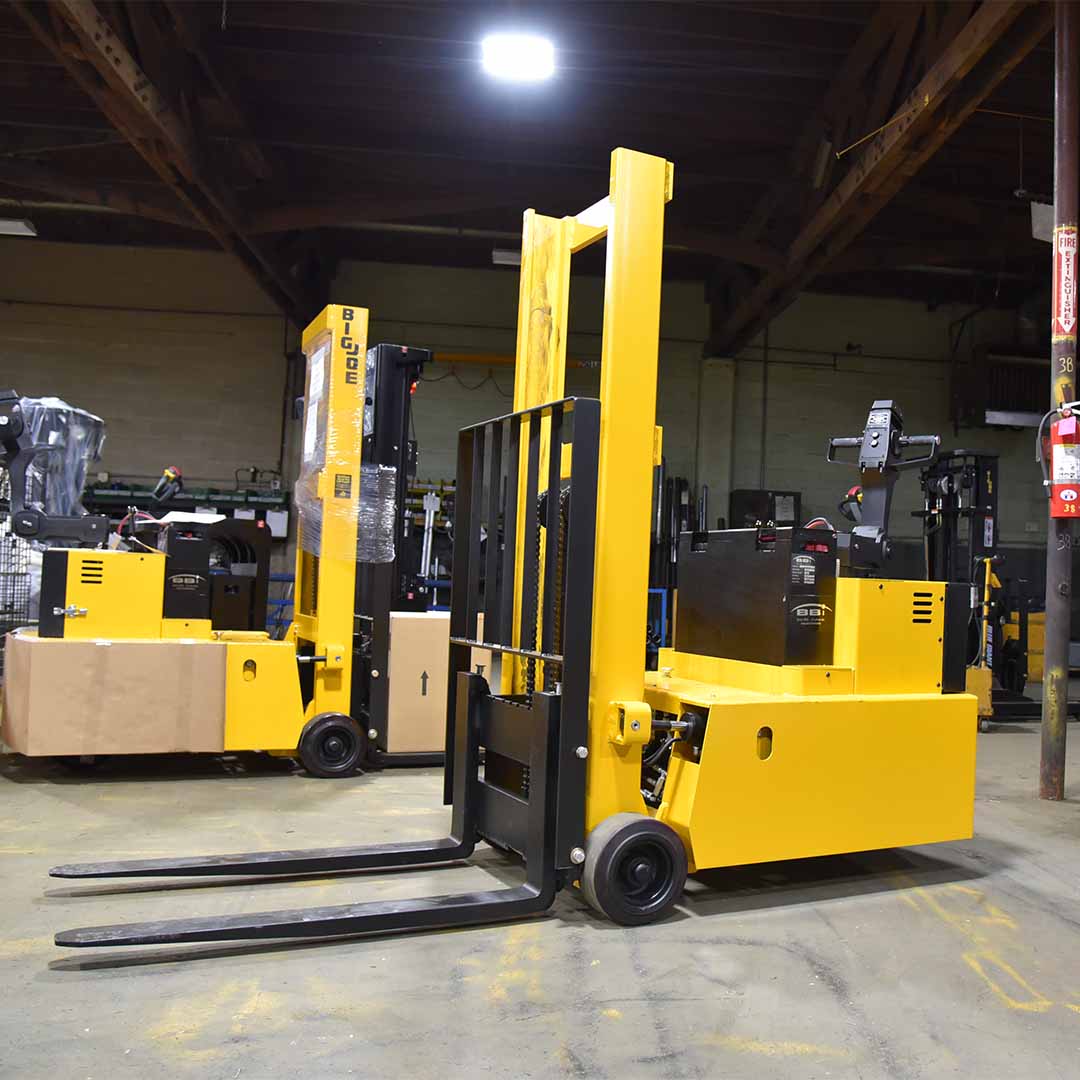

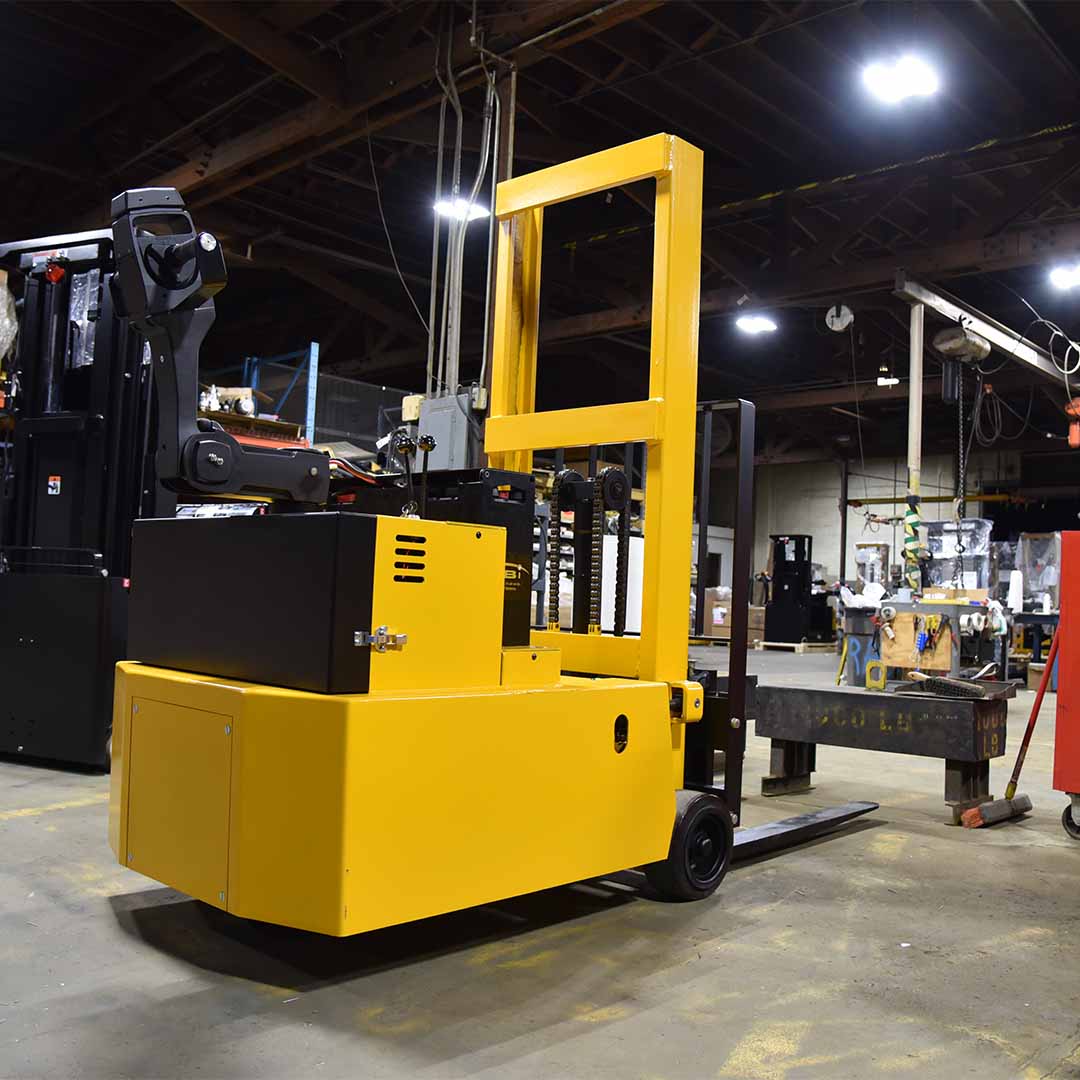

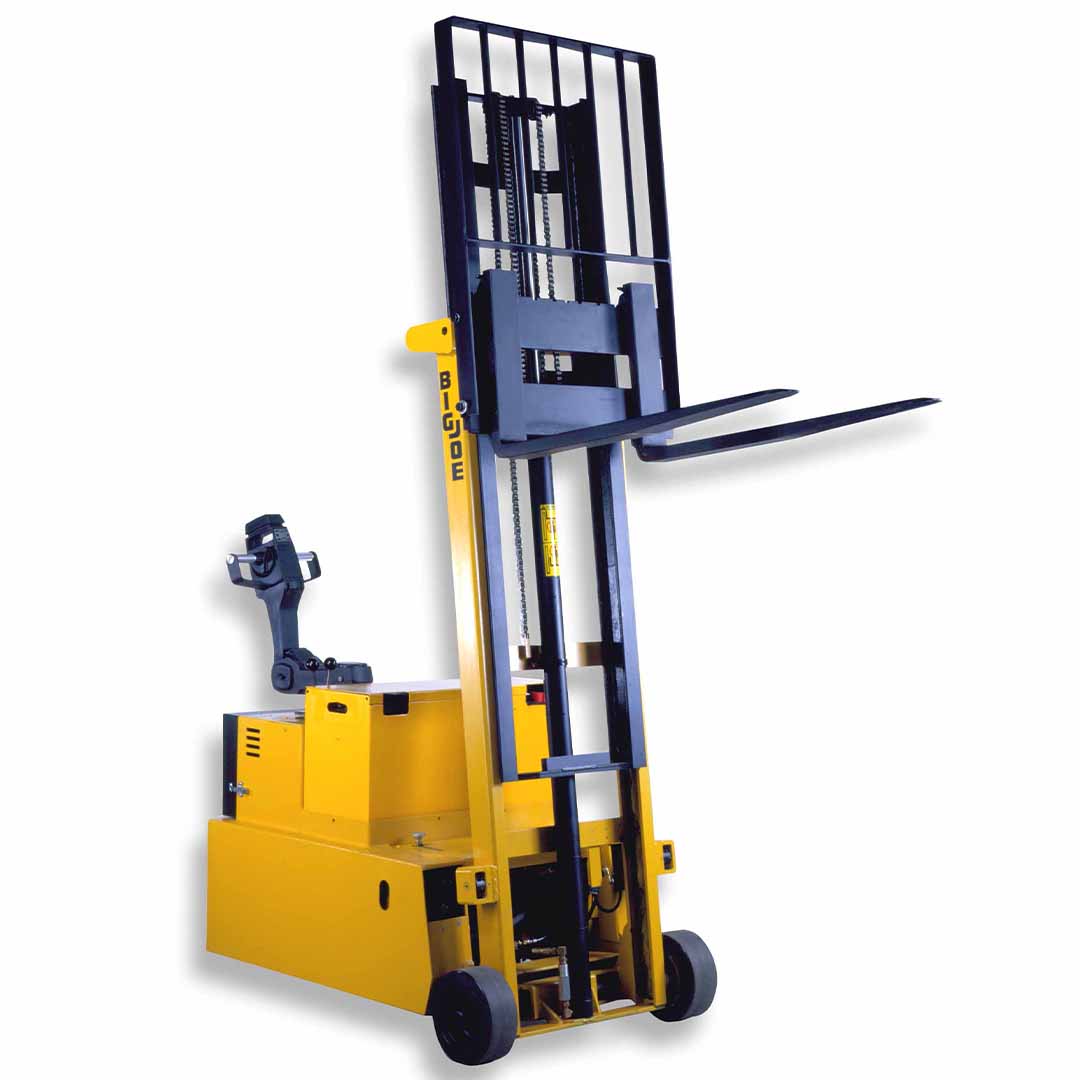

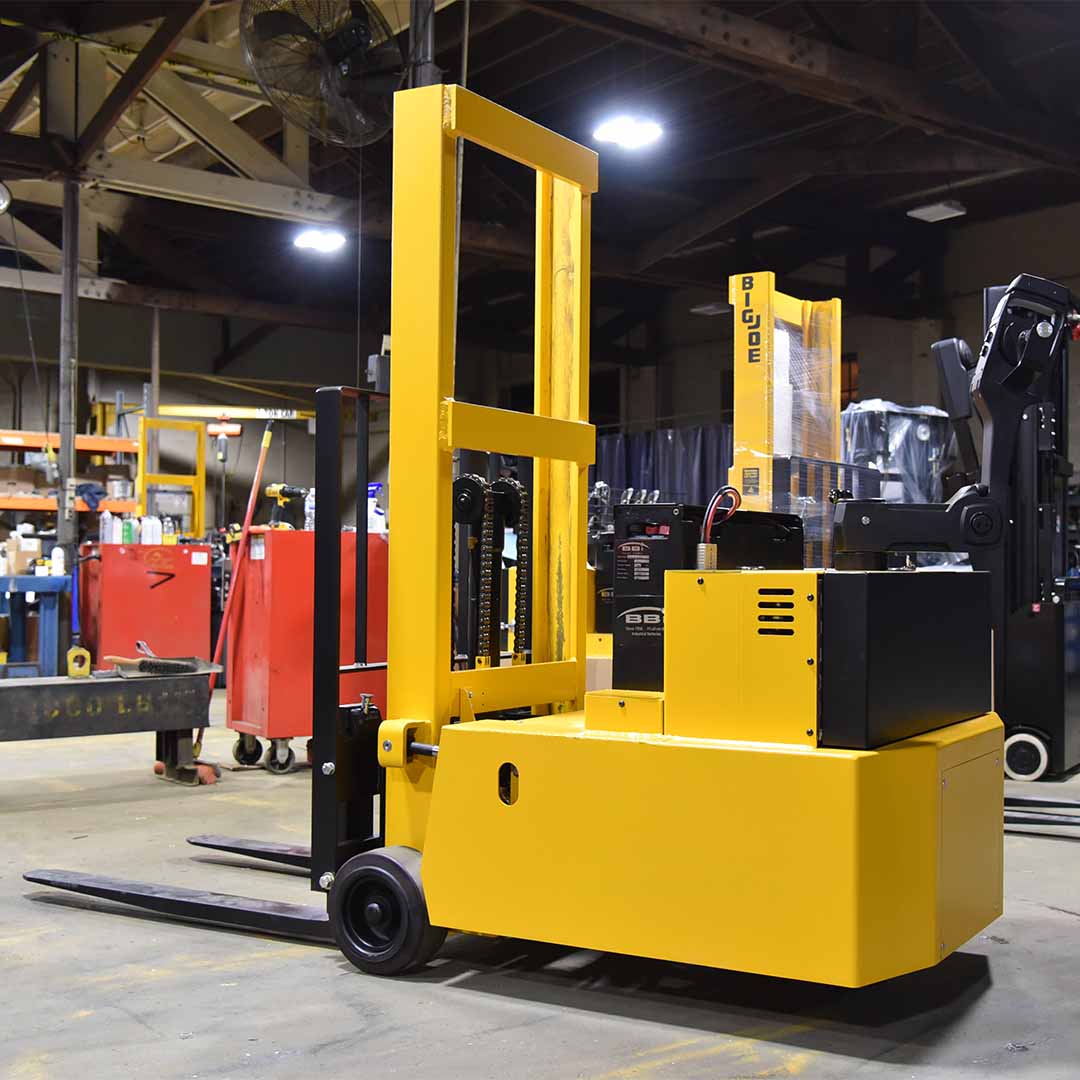

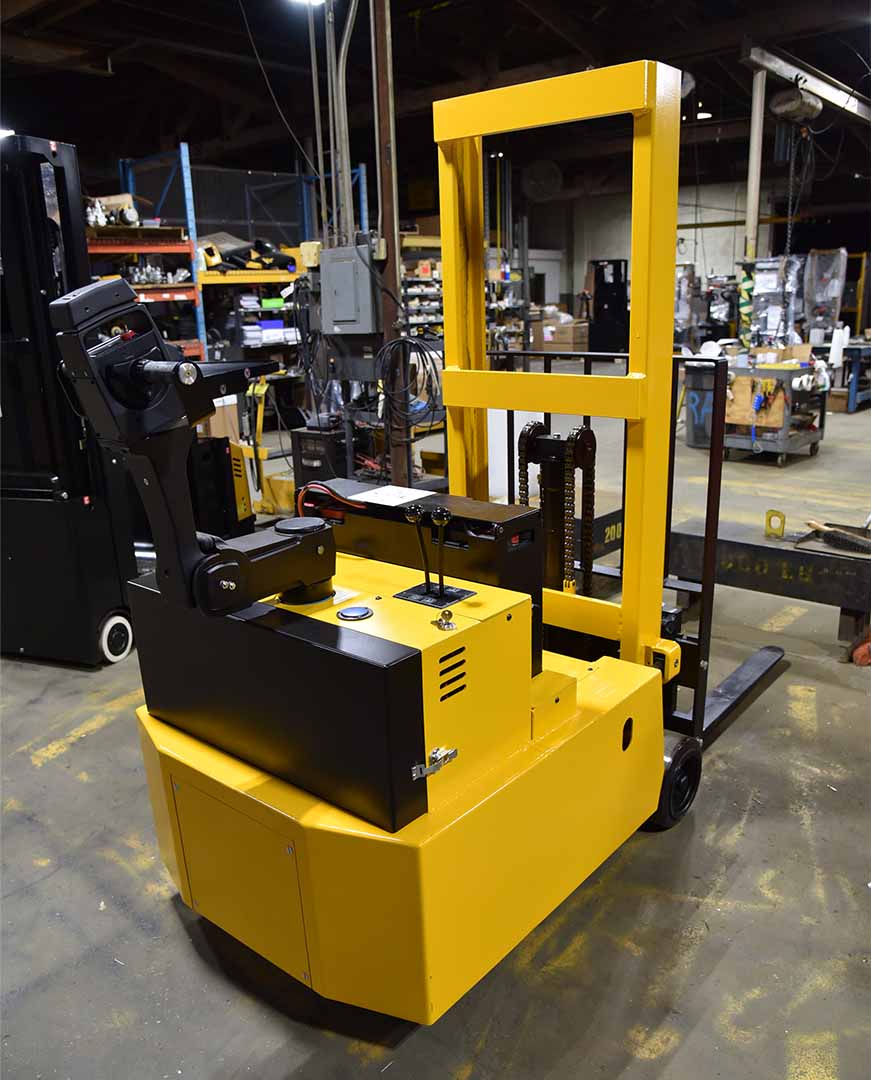

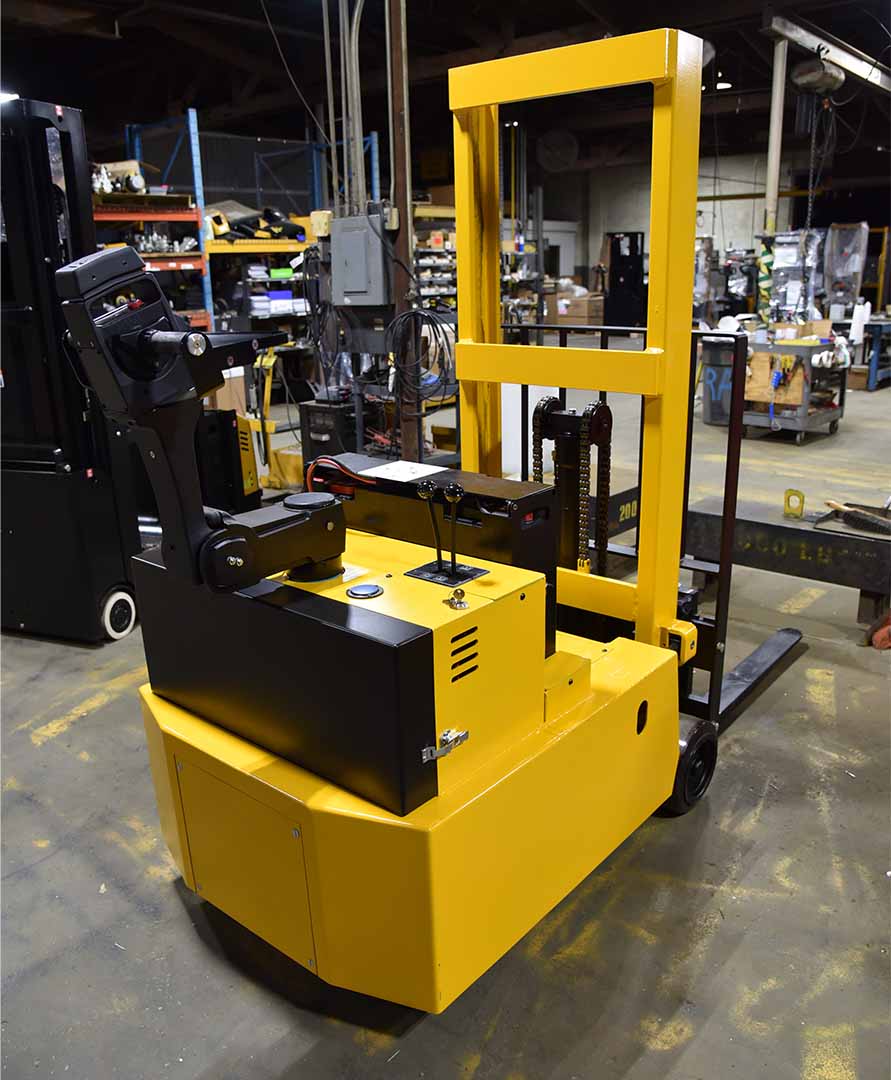

PDC Counterbalanced Stacker, 2000-4000lb. Capacity

The “Walkie” alternative to a sit-down forklift. Our family of counterbalanced walk behind trucks can do the job of a rider for less. Since these trucks do not have to straddle loads they can easily handle a wide range of load sizes and load or unload trailers. Available in a wide variety of configurations our counterbalanced walk behind lift trucks can be specifically tailored to meet the needs of your application.

If you’re looking for an alternative to a sit-down forklift your solution is here.

Features

2,500 to 4,000lb. Capacity depending on vehicle configuration

24volt electrical power with Curtis transistor control

Control arm coupled driveline provides intuitive and direct operator control.

Premium steel frame construction protects components and reduces maintenance.

Premium steel mast construction provides extended service life and load stability.

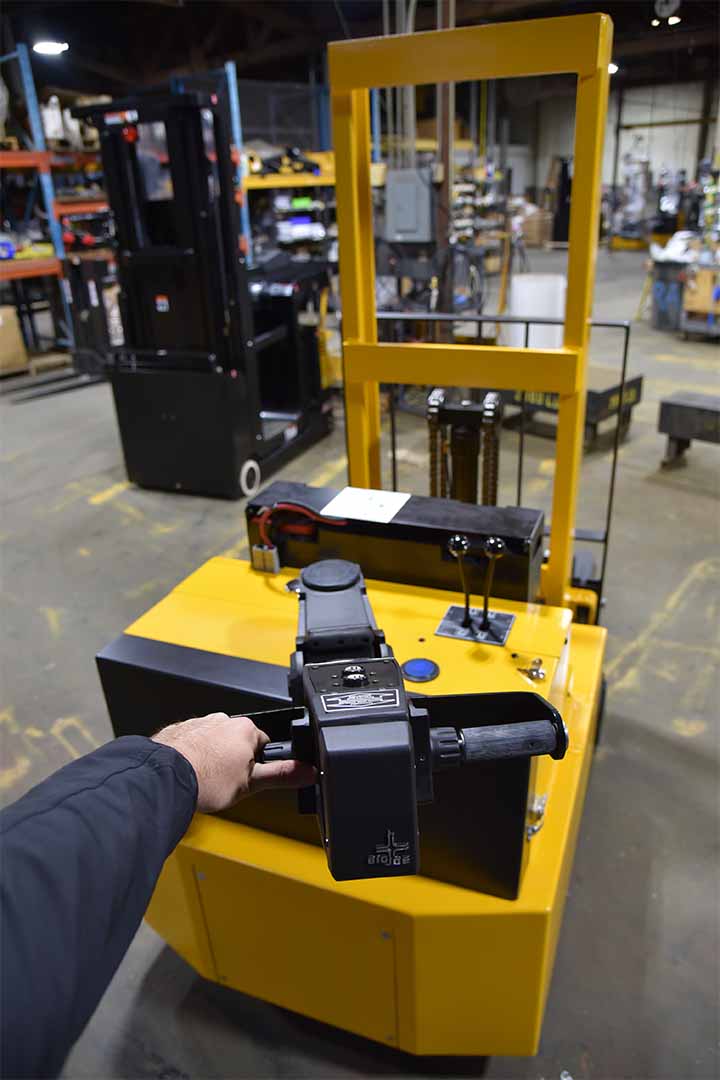

Ergonomic handle with reversing switch, horn and wrap around hand guard.

Shaft type forks provide for easy adjustment.

Chrome plated lift cylinder with pressure compensation lowering valves.

Specifications
Vehicle Type

Walk behind counterbalanced forklift

Capacity

2,500lbs. to 4,000lbs

Load Center

24"

Power

24 volt electric with Curtis transistor control

Charger

External required

Fork Dimensions

A wide variety of options available

Max Lift Height

Masts available from 60” to 194”

Collapsed Height

Based on configuration and max lift height

Turning Radius

Varies see media tab to download product sheet

Vehicle Dimensions

Download Brochure

Travel Speed

Download Brochure
